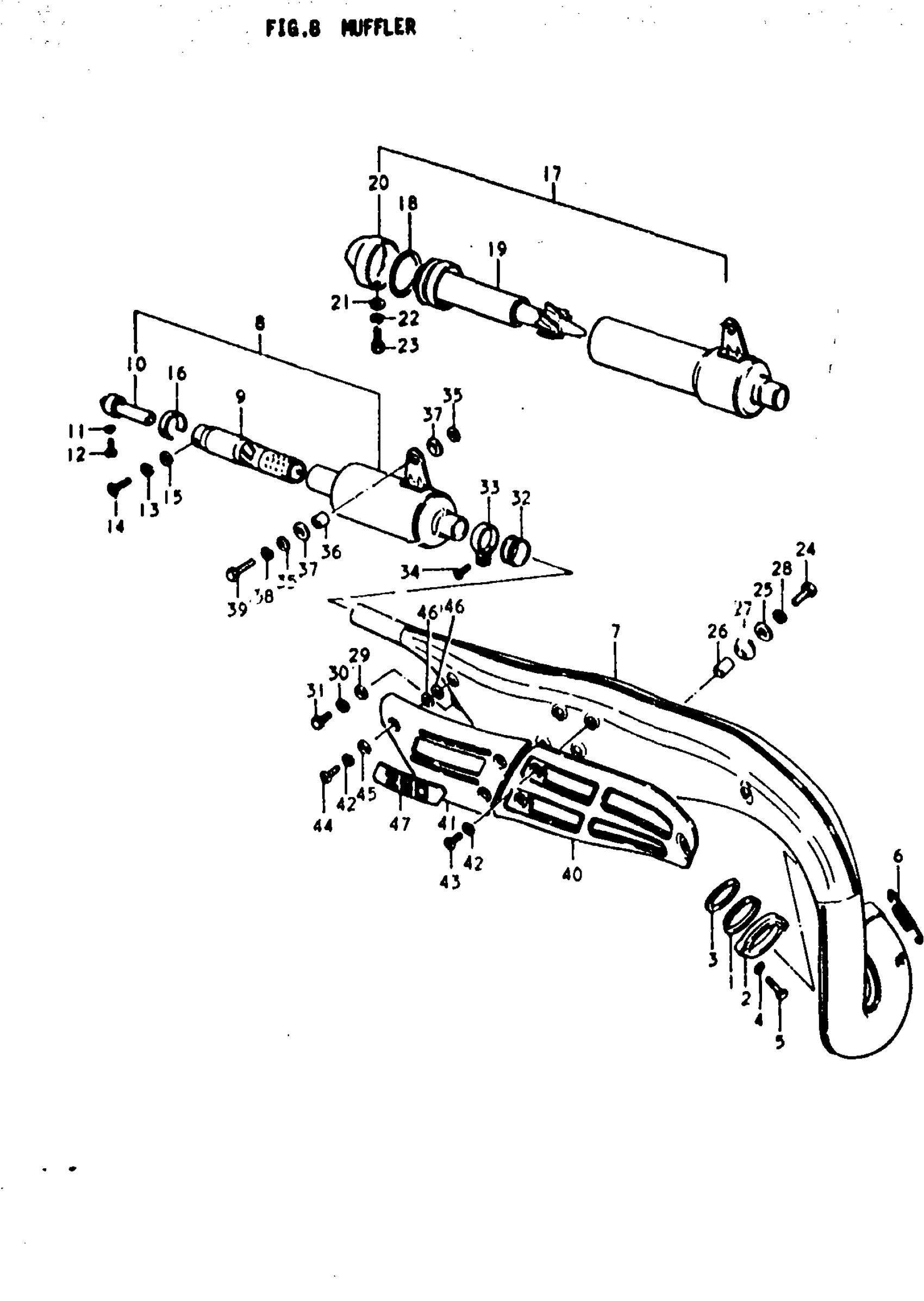

Suzuki TS250 (1979) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-30080

Unavailable

2

CLAMP, EXHAUST PIPE

14182-30000

Unavailable

3

WASHER,EXHAUST This part replaces 14184-30010.

14184-30020

Unavailable

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

BOLT This part replaces 01107-06258.

01500-06257

$1.97

6

SPRING

09443-11002

$3.10

7

NO DESCRIPTION AVAILABLE This part replaces 14310-30500.

14310-30500-H01

Unavailable

8

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 9 - 16 This part replaces 14303-30600.

14303-30600-H01

Unavailable

9

BODY, ARRESTER | B

14810-38601

Unavailable

10

TUBE, CLEAN OUT | B

14850-38601

Unavailable

11

LOCK WASHER | B This part replaces 08321-21058.

08321-0105A

$1.84

12

SCREW | B This part replaces 02112-05088.

02112-05087

$1.49

13

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13

14

SCREW | B

09128-06013

$1.49

15

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

16

BAND, ARRESTER | B

14843-38600

Unavailable

17

NO DESCRIPTION AVAILABLE | C,N; Includes Item(s) 18 - 23 This part replaces 14303-30510.

14303-30510-H01

Unavailable

18

O RING | C,N

09280-55001

$5.52

19

TUBE, CLEAN OUT | C,N

14850-30510

Unavailable

20

COVER, TAIL | C This part replaces 14649-30510.

14649-30520

Unavailable

20

COVER, TAIL | C,N This part replaces 14649-30511.

14649-30520

Unavailable

21

WASHER | C,N This part replaces 08322-21068.

08322-01067

$2.13

22

LOCK WASHER | C,N This part replaces 08321-21068.

08321-01067

$2.13

23

SCREW | C,N

09128-06013

$1.49

24

BOLT This part replaces 01107-08308.

01500-08307

$3.04

25

WASHER (8.5X22X2) | 8.7x22x2 This part replaces 09160-08007.

09160-08127

$2.12

26

SPACER,8.5X12X1 | 8x12x15 This part replaces 09180-08048.

09180-08302

$2.19

27

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

32

CONNECTOR

14771-38000

Unavailable

33

CLAMP

09402-37601

Unavailable

34

SCREW This part replaces 02112-06208.

02112-06207

$1.78

35

WASHER (8.5X26X1.6) | 8.2x26x1.6 This part replaces 09160-08005.

09160-08134

$2.03

36

SPACER, TAIL COVER RR RR | 8.6x13.8x9 This part replaces 09180-08050.

09180-08199

$2.12

37

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

39

BOLT This part replaces 01107-08258.

01500-08257

$2.50

40

COVER, MUFFLE FRONT

14781-30500

Unavailable

41

NO DESCRIPTION AVAILABLE | B This part replaces 14782-30500-03K.

14782-30500-737

Unavailable

41

NO DESCRIPTION AVAILABLE | C This part replaces 14782-30500-05L.

14782-30500-737

Unavailable

41

NO DESCRIPTION AVAILABLE | N This part replaces 14782-30500-07P.

14782-30500-737

Unavailable

42

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

43

SCREW This part replaces 02112-06088.

02112-06087

$1.49

44

SCREW This part replaces 02112-06128.

02112-06127

$1.84

45

WASHER This part replaces 08322-21068.

08322-01067

$2.13

46

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

47

EMBLEM

14799-30500

Unavailable
