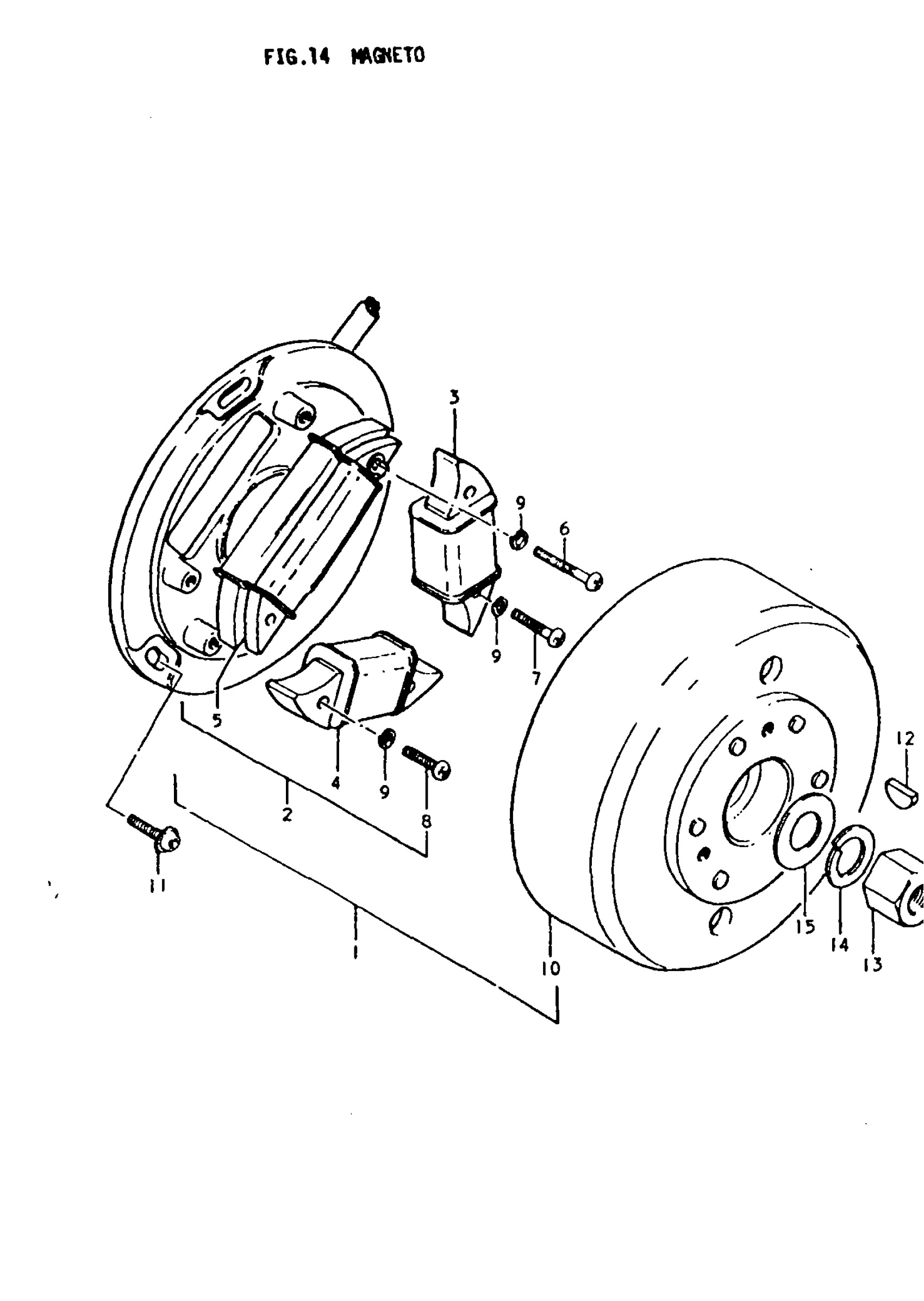

Suzuki TS250 (1979) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | ND; Includes Item(s) 2 - 10

32100-30510

Unavailable

2

STATOR ASSY

32101-30510

Unavailable

3

COIL, LIGHTING

32120-30510

Unavailable

4

COIL, CHARGING | B,C This part replaces 32130-30510.

32130-30511

Unavailable

4

COIL, CHARGING | N

32130-30511

Unavailable

5

COIL, IGNITION

32140-30510

Unavailable

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

SCREW This part replaces 02112-05258.

02112-05257

$1.49

8

SCREW This part replaces 02112-05208.

02112-05207

$1.97

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

ROTOR

32102-30510

Unavailable

11

SCREW

09139-05011

$2.38

12

KEY This part replaces 08341-31049.

09420-04008

$3.42

13

NUT

09140-14011

Unavailable

14

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

15

WASHER | 14x27x3

09160-14015

Unavailable
