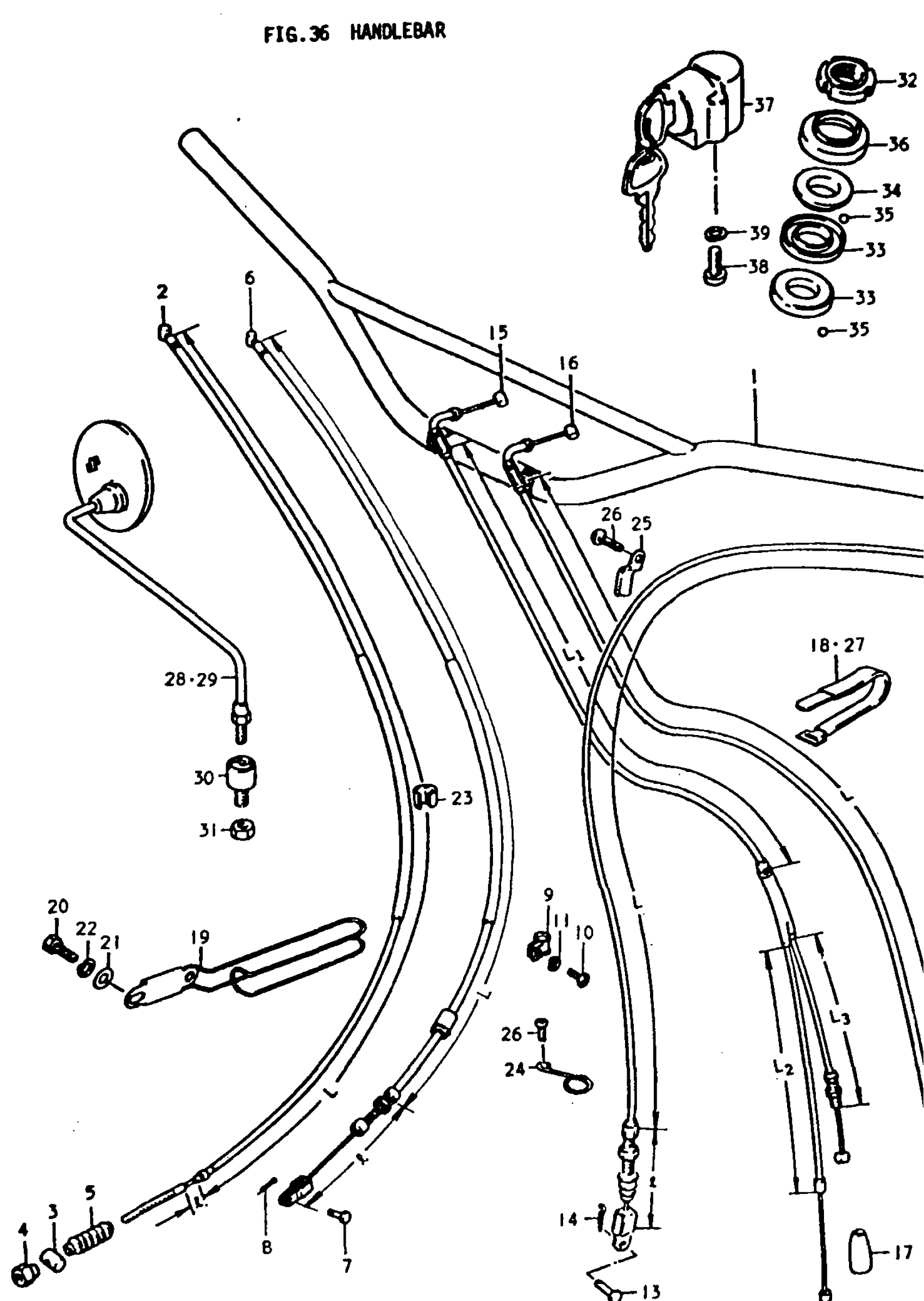

Suzuki TS250 (1979) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B This part replaces 56110-30500.

56110-48003-08C

Unavailable

1

NO DESCRIPTION AVAILABLE | C This part replaces 56110-48002.

56110-48003-08C

Unavailable

1

NO DESCRIPTION AVAILABLE | N This part replaces 56110-48003.

56110-48003-08C

Unavailable

2

CABLE, FRONT BRAKE | B,C; L:1200, L:78

58110-30002

Unavailable

3

.PIN (13X18) | B,C This part replaces 09209-13003.

09209-13018

$3.42

4

.NUT | B,C This part replaces 09150-06001.

09150-06010

$3.10

5

DUST SEAL | B

09287-05001

Unavailable

6

CABLE, FRONT BRAKE | N; L1:1160, L2:145, This part replaces 58100-32400.

58100-32401

Unavailable

7

PIN | N

09200-05001

$1.65

8

.COTTER PIN | N This part replaces 04111-20158.

04111-2015A

$1.49

9

GUIDE, CABLE | N This part replaces 58621-32400.

58621-40401

Unavailable

10

SCREW | N This part replaces 02112-06108.

02112-06107

$1.49

11

LOCK WASHER | N This part replaces 08321-21068.

08321-01067

$2.13

12

CABLE,CLUTCH | L:990, L:136.5 This part replaces 58200-30501.

58200-30502

Unavailable

13

PIN

09200-06011

Unavailable

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

CABLE,THROTTLE | B; L1:700, L2:390 L3:210 This part replaces 58300-30500.

58300-30501

Unavailable

15

CABLE,THROTTLE | C,N; L1:660, L2:390 L3:210 This part replaces 58300-30502.

58300-30503

Unavailable

16

CABLE,THROTTLE | B; L: 960 This part replaces 58300-30510.

58300-30513

Unavailable

16

CABLE,THROTTLE | C,N; L:920 This part replaces 58300-30512.

58300-30513

Unavailable

17

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

18

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

19

GUIDE,CABLE | B This part replaces 58620-30500.

34930-05203

$18.80

19

GUIDE,CABLE | C,N This part replaces 58620-30501.

34930-05203

$18.80

20

BOLT This part replaces 01107-08128.

01500-08127

$2.62

21

WASHER This part replaces 08322-11088.

08322-01087

$2.13

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

CLIP

09408-00002

$2.30

24

CLAMP, CLUTCH CABLE

09403-13401

$2.30

25

CLAMP, CABLE This part replaces 09403-06302.

09403-06301

Unavailable

26

SCREW This part replaces 02112-06088.

02112-06087

$1.49

27

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28

28

MIRROR ASSY,RR This part replaces 56500-31011.

56500-31014

$48.02

29

MIRROR ASSY,RR This part replaces 56600-31011.

56600-31014

$48.02

30

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

31

NUT This part replaces 08310-22108.

08310-00107

$2.19

32

NUT, STEERING STEM

51631-28000

$17.37

33

INNER RACE, STEERING

51611-33002

$13.81

34

OUTER RACE, STEERING

51621-30001

Unavailable

35

STEEL BALL

06111-08003

$1.49

36

DUST SEAL, STEERING

51643-30000

Unavailable

37

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

38

SCREW This part replaces 02112-05128.

02112-05127

$1.97

39

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
