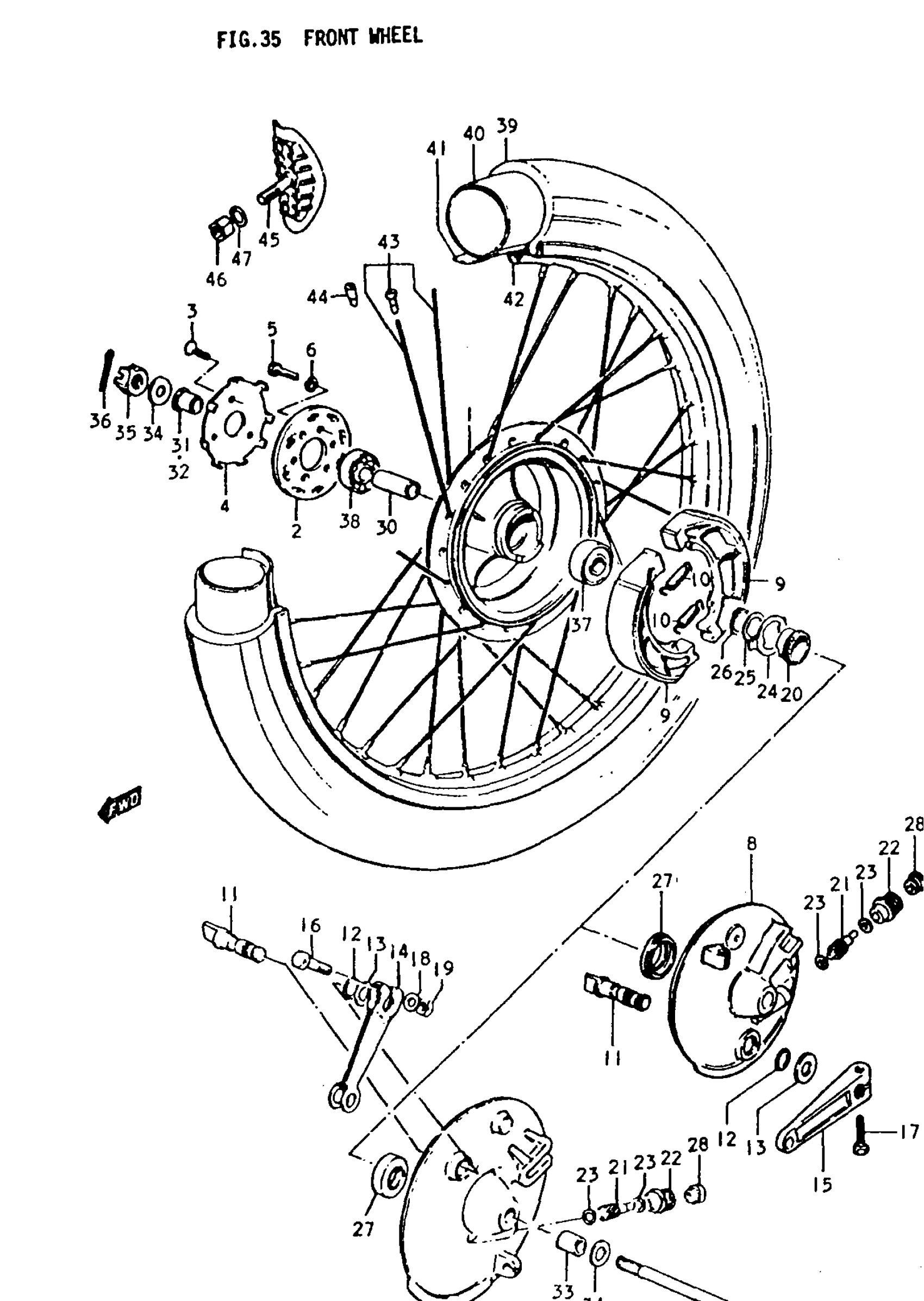

Suzuki TS250 (1979) FRONT WHEEL Diagram

#

Description
Price

1

HUB, WHEEL

54110-30500

Unavailable

2

HUB FLANGE, FRONT RH

54112-30500

Unavailable

3

SCREW This part replaces 02122-06168.

02122-06167

$1.49

4

HOLDER, HUB BEARING RH

54151-30500

$8.42

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

PANEL | B,C

54210-30500

Unavailable

8

NO DESCRIPTION AVAILABLE | N This part replaces 54210-32421.

54210-32422

Unavailable

9

SHOE SET, REAR BRAKE | B,C This part replaces 54410-08002.

64400-02830

$55.17

9

SHOE SET, REAR BRAKE | N This part replaces 54410-32400.

64400-02830

$55.17

10

SPRING

55420-41100

Unavailable

11

CAM, REAR BRAKE | B,C This part replaces 54440-08002.

54440-08004

$27.62

11

CAM, BRAKE | N

54440-32401

Unavailable

12

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

13

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

14

NO DESCRIPTION AVAILABLE | B,C This part replaces 54451-30000.

54451-30001

Unavailable

15

NO DESCRIPTION AVAILABLE | N This part replaces 54451-32400.

54451-32401

Unavailable

16

BOLT | B,C This part replaces 01107-06408.

01500-0640B

$2.62

17

BOLT | N This part replaces 01107-06258.

01500-06257

$1.97

18

WASHER | B,C This part replaces 08322-21068.

08322-01067

$2.13

19

.NUT | B,C This part replaces 08310-11068.

08310-00067

$2.13

20

GEAR, SPEEDOMETER (NT:24) | NT:24 This part replaces 54611-30301.

54611-30302

Unavailable

21

PINION, SPEEDOMETER | NT:8

54621-30300

Unavailable

22

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

23

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

24

DRIVER | B,C; TO 54660-11031 USED WITH 09285-26003 This part replaces 54660-11030.

54660-11031

$12.67

24

DRIVER | N

54660-11031

$12.67

25

THRUST WASHER | 22.5x27x1

09160-22001

$2.47

26

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

27

SEAL,OIL(26X38X | B,C; TO 09285-26003 USED WITH 54660-11031 This part replaces 09285-26001.

09285-26005

Unavailable

27

SEAL,OIL(26X38X | N This part replaces 09285-26003.

09285-26005

Unavailable

28

OIL SEAL

09289-06001

$4.58

29

AXLE, FRONT | B,C This part replaces 54711-30500.

54711-30501

Unavailable

29

AXLE,FRONT | N This part replaces 64711-43000.

64711-43001

$41.97

30

SPACER (12.5X19X52) | 12.8x19x52 This part replaces 09180-12041.

09180-12144

$10.30

31

SPACER, RH | B,C; 12.2x19x21

09180-12073

Unavailable

32

SPACER, RH | N

54741-41100

$15.13

33

SPACER | B,C; 12x20x41

09180-12063

$7.30

34

WASHER This part replaces 08322-21128.

08322-01127

$1.84

35

NUT This part replaces 08314-31128.

08314-3112A

$2.41

36

PIN This part replaces 04111-30308.

04111-3030A

$1.49

37

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

38

BEARING This part replaces 08123-62017.

08133-62017

$18.47

39

TIRE, FRONT | 3.00-21

55100-30600

Unavailable

40

TIRE, FRONT | 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

41

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

$3.83

42

NO DESCRIPTION AVAILABLE | B; 1.60Ax21 This part replaces 55311-30500.

55311-30501

Unavailable

42

RIM, WHEEL (1.60x21) | C,N; 1.60x21 This part replaces 55311-30510.

55311-30511

Unavailable

43

SPOKE SET This part replaces 55300-30860.

55320-30500

Unavailable

44

BALANCER, WHEEL

55411-30000

Unavailable

45

STOPPER, BEAD

65270-28600

$54.75

46

NUT This part replaces 08310-12088.

08310-00087

$2.13

47

WASHER This part replaces 08322-11088.

08322-01087

$2.13
