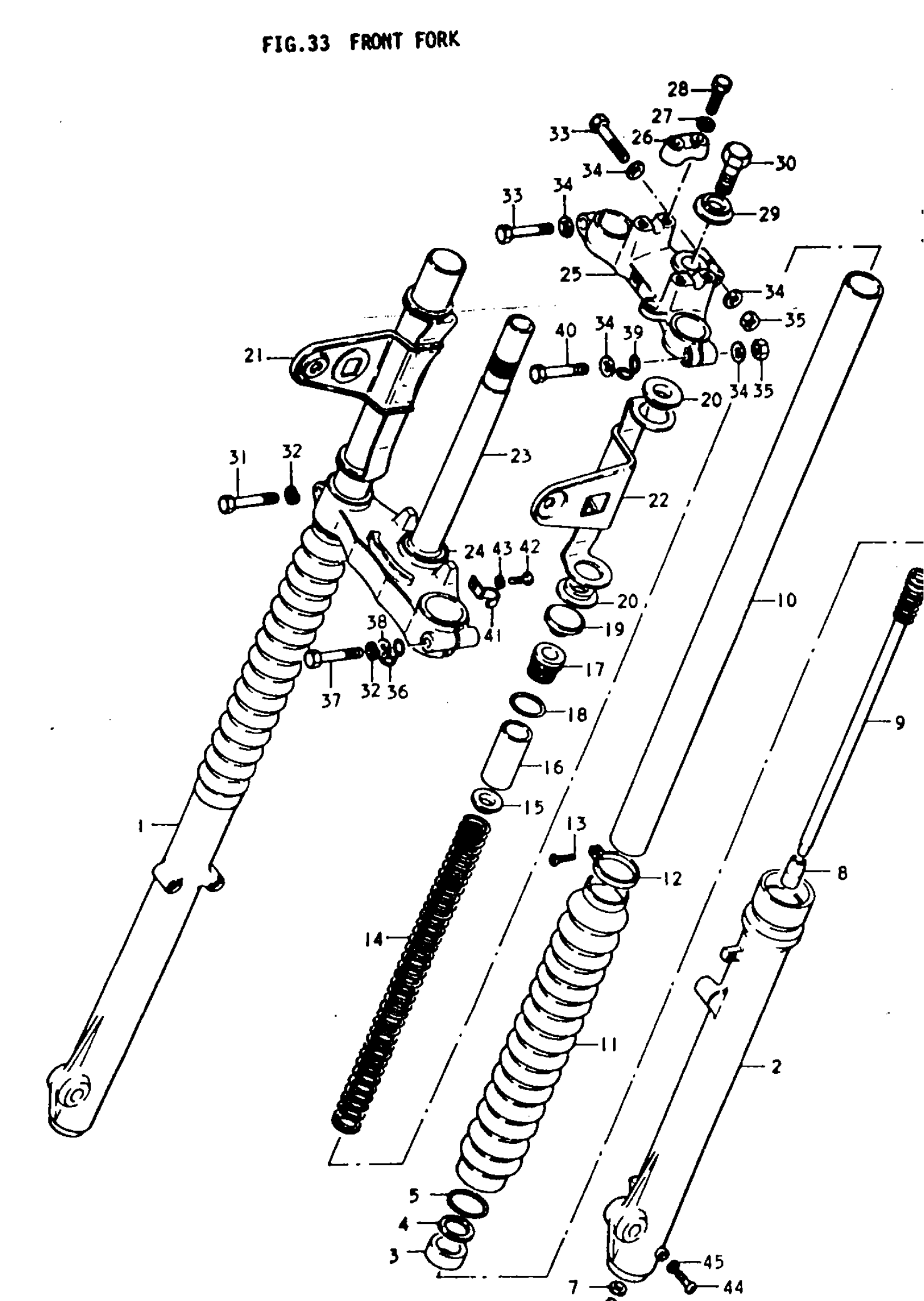

Suzuki TS250 (1979) FRONT FORK Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 45 This part replaces 51100-30550-291.

51100-30551-291

Unavailable

1

OUTER TUBE, RH

51130-30540

Unavailable

2

OUTER TUBE, LH

51140-30540

Unavailable

3

OIL SEAL

51153-34010

Unavailable

4

WASHER

51158-32110

Unavailable

5

SNAP RING

51156-32110

Unavailable

6

BOLT

51147-16510

$4.34

7

GASKET

51148-41310

$2.26

8

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

9

CYLINDER

51146-30540

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 51110-30540.

51110-30541

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 51571-30540.

51571-38215-34S

Unavailable

12

BAND

51575-41410

Unavailable

13

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

14

SPRING

51171-30540

Unavailable

15

GUIDE, SPRING

51172-38010

Unavailable

16

SPACER

51176-49000

Unavailable

17

CAP

51351-30520

Unavailable

18

O RING

51117-16310

Unavailable

19

CAP

51189-30520

$12.40

20

GASKET

51556-41410

Unavailable

21

BRACKET, HEADLAMP HOUSING RH

51530-30550-291

Unavailable

22

BRACKET, HEADLAMP HOUSING LH

51540-30550-291

Unavailable

23

STEM, STEERING

51410-30540-019

Unavailable

24

OUTER RACE

51621-33001

$16.25

25

HEAD, STEERING STEM

51311-30540-291

Unavailable

26

CLAMP, HANDLEBAR UPPER This part replaces 56211-30540-291.

56211-29320-291

$15.51

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

29

WASHER

51356-41310

Unavailable

30

BOLT

51351-30540

Unavailable

31

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable

32

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

33

BOLT This part replaces 01107-08558.

01500-08557

$3.16

34

WASHER This part replaces 08322-21088.

08322-01087

$2.13

35

NUT This part replaces 08310-12088.

08310-00087

$2.13

36

CLIP

51455-30540

Unavailable

37

BOLT This part replaces 01107-12458.

01500-12457

$6.12

38

WASHER This part replaces 08322-11128.

08322-01127

$1.84

39

CLIP This part replaces 51455-32400.

51455-29330

Unavailable

40

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

41

CLIP

51453-05110

Unavailable

42

SCREW This part replaces 02112-06108.

02112-06107

$1.49

43

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

44

SCREW This part replaces 02111-04087.

02112-04087

$1.49

45

GASKET

51183-03010

$2.07
