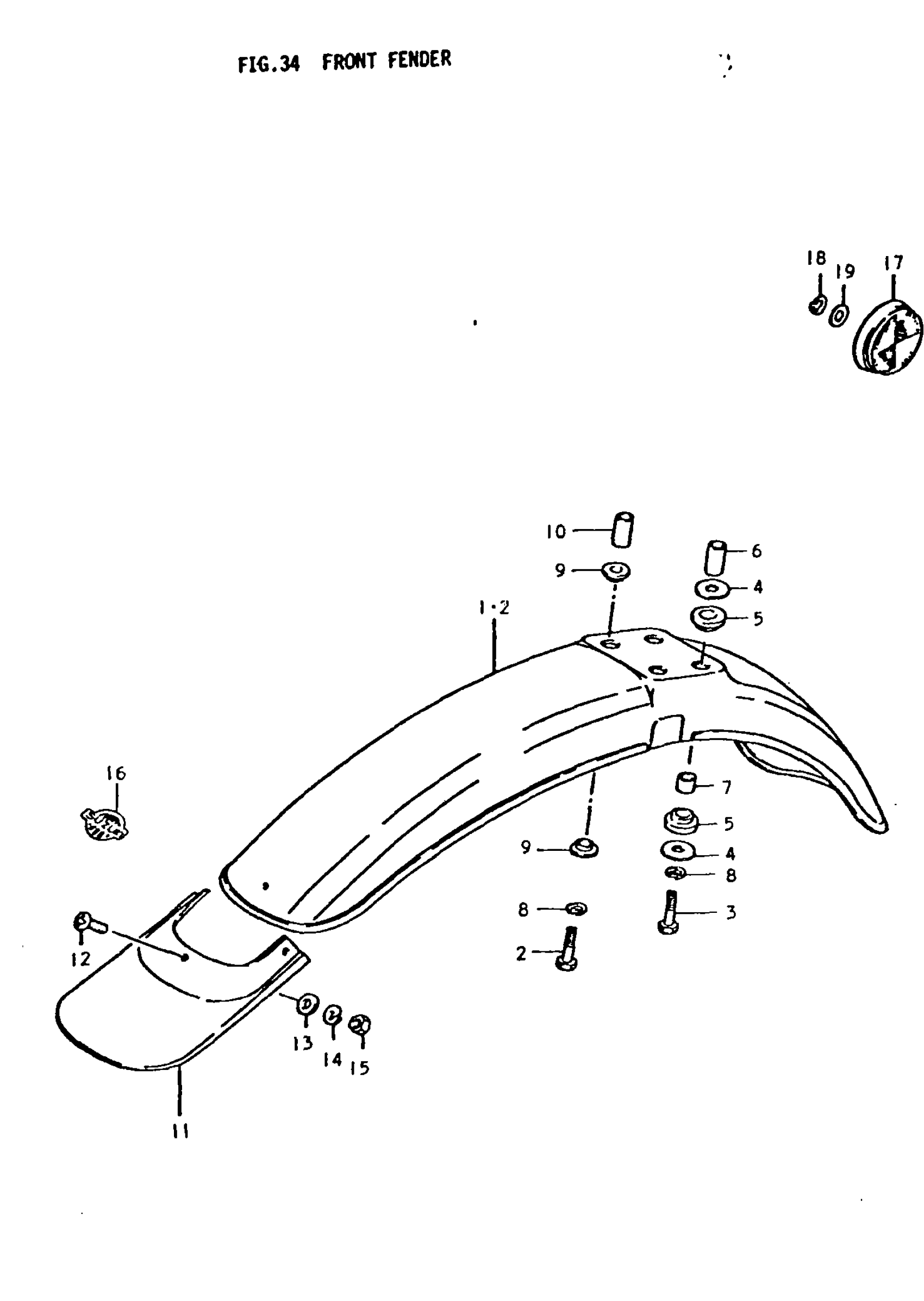

Suzuki TS250 (1979) FRONT FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | B; TO 53111-30501-189 USED WITH 09180-06048 09180-06026 This part replaces 53111-30500-189.

53111-41101-13L

Unavailable

2

NO DESCRIPTION AVAILABLE | C; TO 53111-30511-189 USED WITH 09180-06048 09180-06026 01107-06358 This part replaces 53111-30510-189.

53111-30511-189

Unavailable

2

FENDER, FRONT | N

53111-30511-07P

Unavailable

3

BOLT This part replaces 01107-06358.

64455-07L00

$1.59

4

WASHER (6.5X20X1.2) | B,C; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION | B,C

09320-09003

$2.23

6

SPACER (6.5X10.5X15) | B,C; 6.5x10.5x15 This part replaces 09180-06061.

09180-06079

$2.42

7

SPACER (6.5X10X10) | B,C; 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

WASHER (6.3X16X1) | N This part replaces 09180-06048.

09169-06053

$1.49

10

SPACER, IG COOL (6.4X10X18) | N; 6.8x10x18 This part replaces 09180-06026.

09180-06195

$3.68

11

MUD FLAP | C,N

53411-28600

Unavailable

12

SCREW | C,N

02142-04127

$1.57

13

WASHER | C,N This part replaces 08322-21048.

08322-01047

$1.86

14

LOCK WASHER | C,N This part replaces 08321-21048.

08321-0104A

$1.84

15

NUT | C,N This part replaces 08310-11048.

08310-00047

$2.23

16

EMBLEM | C,N

99801-08810

Unavailable

17

REFLEX REFLECTOR, FRONT

35950-45010

$17.09

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13
