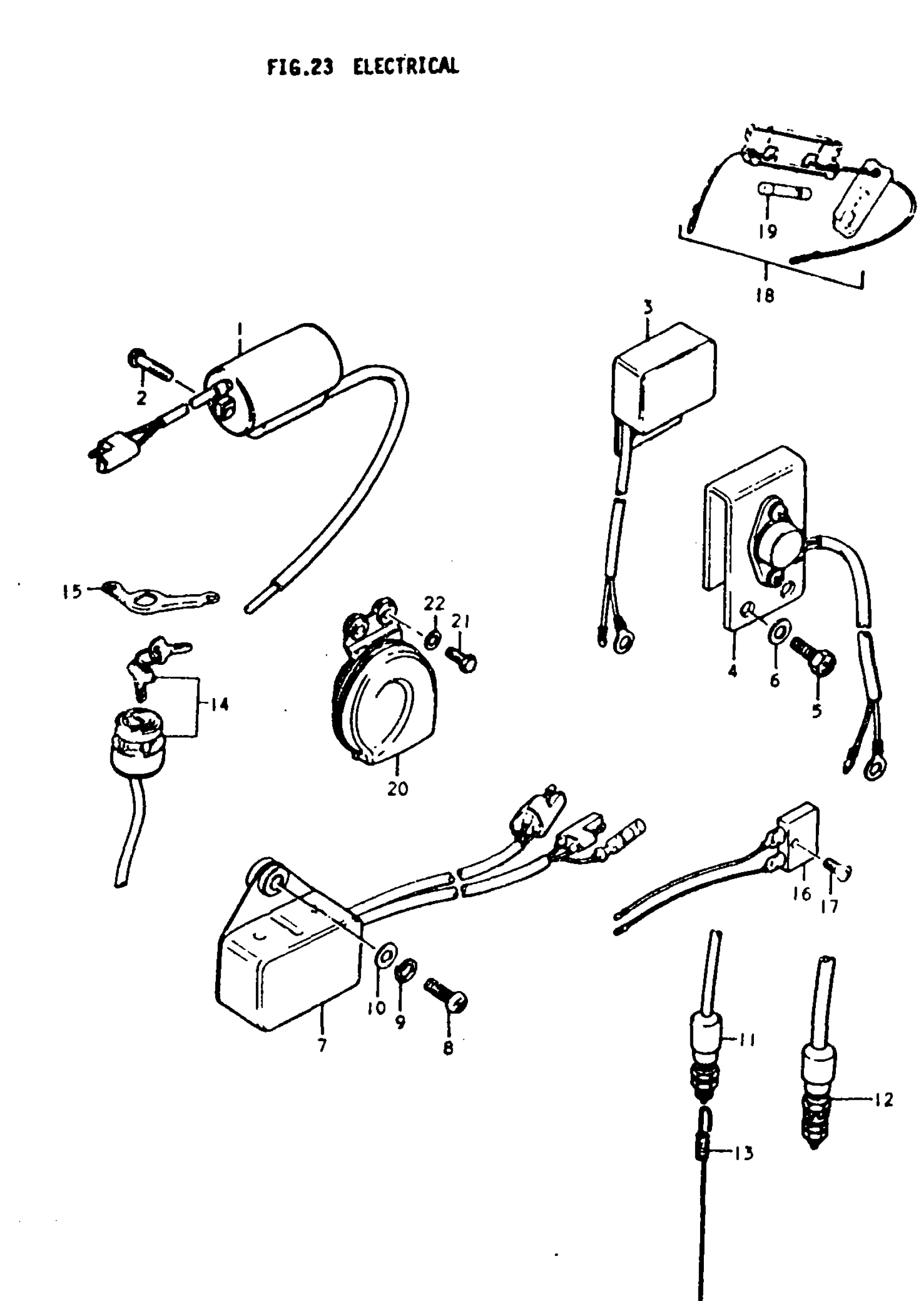

Suzuki TS250 (1979) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION | B; KOKUSAN This part replaces 33410-30020.

33410-14120

$115.17

1

COIL ASSY, IGNITION | ND

33410-28600

Unavailable

2

SCREW This part replaces 02112-05208.

02112-05207

$1.97

3

PEGULATOR ASSY, VOLTAGE | B; KOKUSAN

32500-25600

Unavailable

4

REGULATOR, VOLTAGE | ND This part replaces 32500-27600.

32500-25600

Unavailable

5

BOLT

09128-05101

$1.49

6

WASHER This part replaces 08322-21058.

08322-01057

$2.13

7

C.D.I UNIT ASSY | B; KOKUSAN

32900-30520

Unavailable

7

C.D.I UNIT ASSY | ND

32900-30511

Unavailable

8

SCREW This part replaces 02112-06208.

02112-06207

$1.78

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

SWITCH, REAR BRAKE LAMP | B,C This part replaces 37740-19051.

37740-48071

$19.18

12

SWITCH, REAR BRAKE LAMP | N This part replaces 37740-04570.

37740-48071

$19.18

13

SPRING

09443-06027

$3.50

14

SWITCH ASSY, IGNITION This part replaces 37110-25318.

37110-25319

$97.62

15

BRACKET, IGNITION SWITCH This part replaces 37115-36000.

37115-36001

Unavailable

16

DIODE | B This part replaces 32800-19062.

32800-16A00

$23.07

16

DIODE | C,N This part replaces 32800-19063.

32800-16A00

$23.07

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

FUSE CASE ASSY | Includes Item(s) 19 This part replaces 36740-15010.

36740-15011

$9.38

19

FUSE | 15A

09481-15001

$2.06

20

HORN ASSY

38500-25332

Unavailable

21

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13
