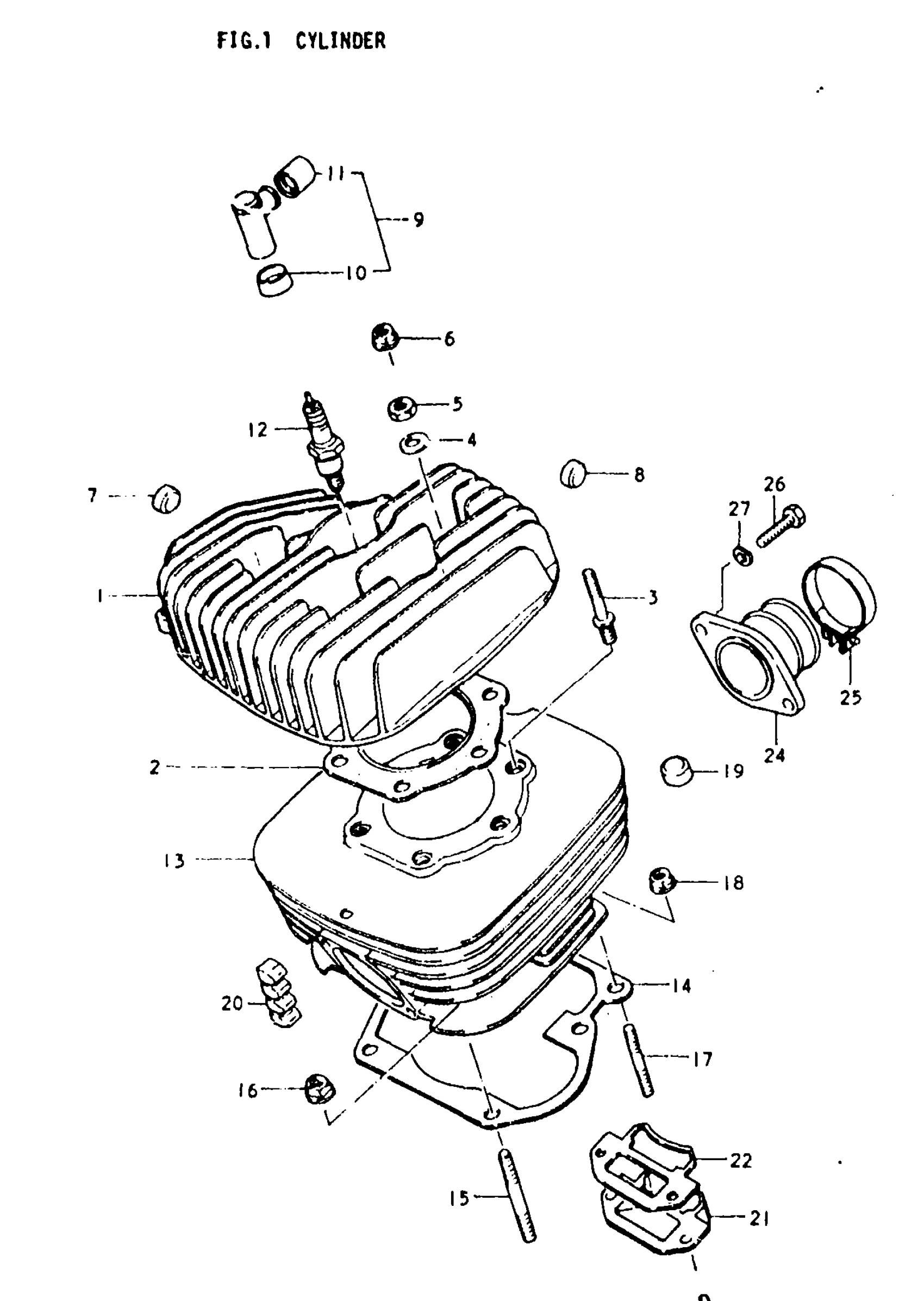

Suzuki TS250 (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | B This part replaces 11111-30501.

11111-30503

Unavailable

1

CYLINDER HEAD | C,N This part replaces 11111-30502.

11111-30503

Unavailable

2

GASKET | B This part replaces 11141-30083.

11141-30900

Unavailable

2

GASKET | C,N This part replaces 11141-30084.

11141-30900

Unavailable

3

STUD BOLT

09108-08018

$3.18

4

WASHER | B,C This part replaces 08322-21088.

08322-01087

$2.13

5

NUT, CLUTCH RELEASE NO.1 | B,C This part replaces 09140-08005.

09140-08017

$2.27

6

NUT (CHROME) | N This part replaces 08316-16088.

08316-10087

$2.26

7

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.25

8

RUBBER PAD, HEAD NO. 2

11252-38001

$3.78

9

CAP SET,SPARK P | Includes Item(s) 10 - 11 This part replaces 33500-69810.

33500-69811

$22.48

10

SEAL, SPARK PLUG

33541-69010

$4.37

11

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

12

SPARK PLUG | B; NGK, B8ES

09482-00091

$3.01

12

SPARK PLUG W24E | B; ND, W24ES This part replaces 09482-00092.

09482-00247-111

Unavailable

12

SPARK PLUG | C,N; NGK, BP7ES

09482-00139

$3.32

12

SPARK PLUG | C,N; ND, W22EP

09482-00140

Unavailable

13

CYLINDER | B This part replaces 11210-30500.

11210-30900

Unavailable

13

CYLINDER | C,N This part replaces 11210-30510.

11210-30900

Unavailable

14

CYLINDER GASKET This part replaces 11241-41100.

11241-41100-H17

Unavailable

15

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

16

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

17

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

18

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

19

RUBBER PAD, CYLINDER | B

11252-38001

$3.78

20

NO DESCRIPTION AVAILABLE | C,N This part replaces 11251-30500.

11251-30530

Unavailable

21

REED VALVE ASSY | B,C This part replaces 13150-41111.

13150-41113

$143.67

21

REED VALVE ASSY | N

13150-41113

$143.67

22

GASKET,REED VAL This part replaces 13156-41100.

13156-41100-H17

$3.43

23

SCREW This part replaces 02112-06208.

02112-06207

$1.78

24

PIPE, INTAKO

13110-30500

Unavailable

25

CLAMP This part replaces 09402-46306.

09402-46208

$4.64

26

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
