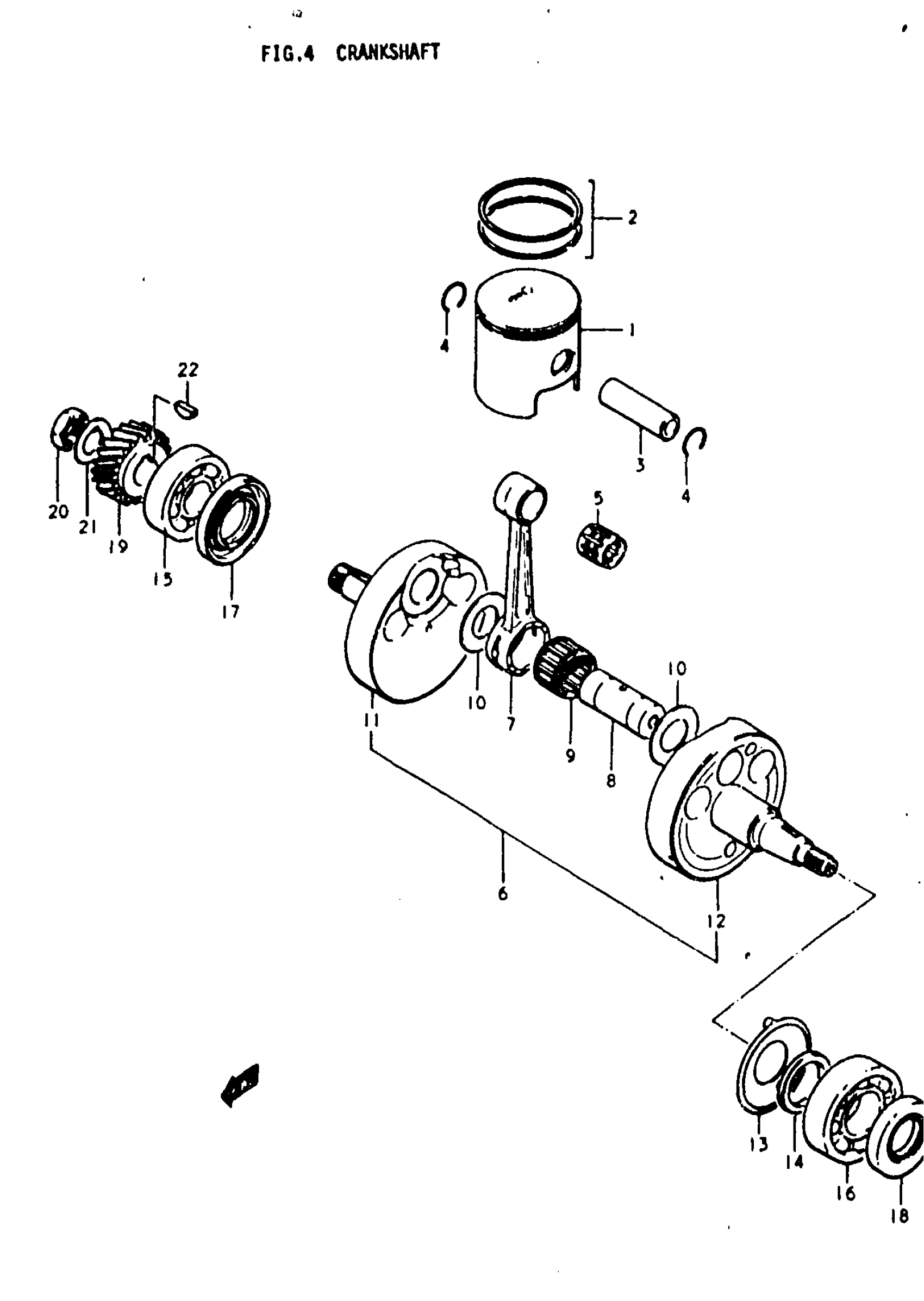

Suzuki TS250 (1979) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) | B This part replaces 12110-30500.

12110-30510

Unavailable

1

PISTON (STD) | B This part replaces 12110-30501.

12110-30510

Unavailable

1

PISTON | C,N

12110-30510

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.5 This part replaces 12110-30770.

12103-30820-050

Unavailable

1

NO DESCRIPTION AVAILABLE | B; OS:0.5 This part replaces 12110-30771.

12103-30820-050

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N; OS:0.5 This part replaces 12110-30510-050.

12103-30820-050

Unavailable

1

PISTON SET | B; OS:1.0 This part replaces 12110-30780.

12103-30820-100

Unavailable

1

PISTON SET | C,N; OS:1.0 This part replaces 12110-30510-100.

12103-30820-100

Unavailable

2

RING SET, PISTON

12140-30010

$47.34

2

RING SET, PISTON | OS:0.5

12140-30010-050

Unavailable

2

RING SET, PISTON | OS:1.0

12140-30010-100

Unavailable

3

PIN, PISTON This part replaces 12151-92200.

12151-45501

$17.37

4

CIRCLIP

09381-18002

$1.67

5

BEARING (18X23X24) This part replaces 09263-18009.

09263-18021

Unavailable

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-30500.

12200-30003

Unavailable

7

ROD, CONNECTING

12161-16400

Unavailable

8

PIN, CRANK

12211-16400

Unavailable

9

BEARING

09263-25008

Unavailable

10

THRUST WASHER | 25x42x1

09160-25024

Unavailable

11

CRANKSHAFT, RH

12221-30500

Unavailable

12

CRANKSHAFT, LH

12261-30500

Unavailable

13

PLATE, OIL GUIDE

12511-30002

Unavailable

14

SPACER | 30x45x3

09180-30012

Unavailable

15

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

16

BEARING, LH | 30x72x19

09269-30006

Unavailable

17

OIL SEAL, RH | 35x62x9

09283-35004

Unavailable

18

OIL SEAL 30X55X | 30x55x10 This part replaces 09283-30011.

09283-30L03

$36.08

19

GEAR, PRIMARY DRIVE | NT:21

21111-30000

Unavailable

20

NUT

09140-18002

$3.87

21

WASHER | 18x32x0.8

09166-18001

$2.71

22

KEY

08341-31059

$2.48
