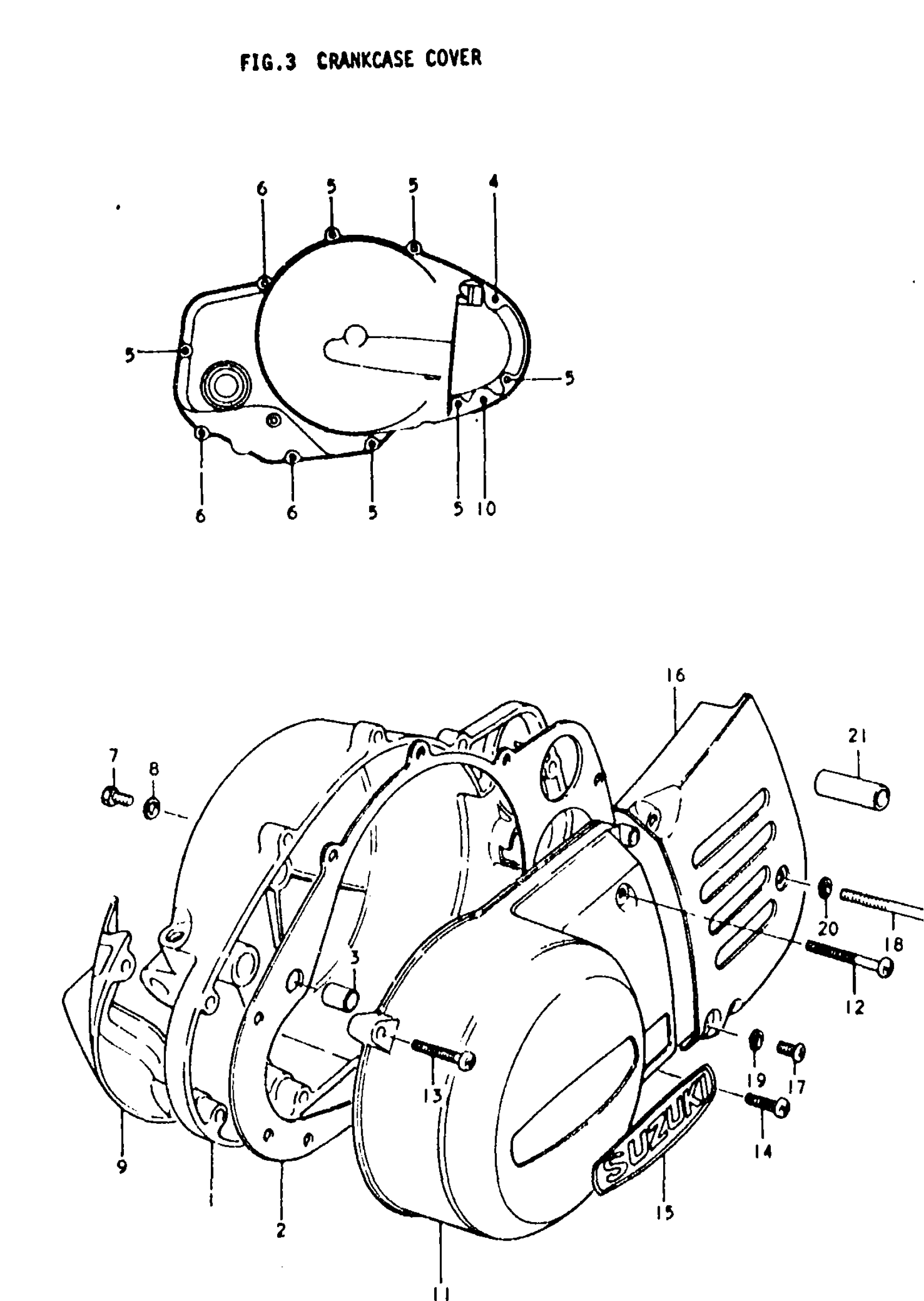

Suzuki TS250 (1979) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-30501

Unavailable

2

GASKET,CLUTCH C This part replaces 11482-30500.

11482-30501

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06307

$1.97

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

8

GSDKET

09168-06001

$1.49

9

COVER, CLUTCH RELEASE

11451-30501

Unavailable

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

COVER, MAGNETO

11351-30501

Unavailable

12

SCREW This part replaces 02112-06358.

02112-06357

$1.78

13

SCREW This part replaces 02112-06258.

02112-06257

$1.78

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78

15

EMULEM, MAGNETO COVER

68233-28000

$9.75

16

COVER, ENGINE SPROCKET This part replaces 11360-30500.

11360-30501

Unavailable

17

SCREW This part replaces 02112-05108.

02112-05107

$1.49

18

SCREW This part replaces 02112-06608.

02112-06607

$2.57

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

CUSHION, DRIVE CHAIN

09320-13004

Unavailable
