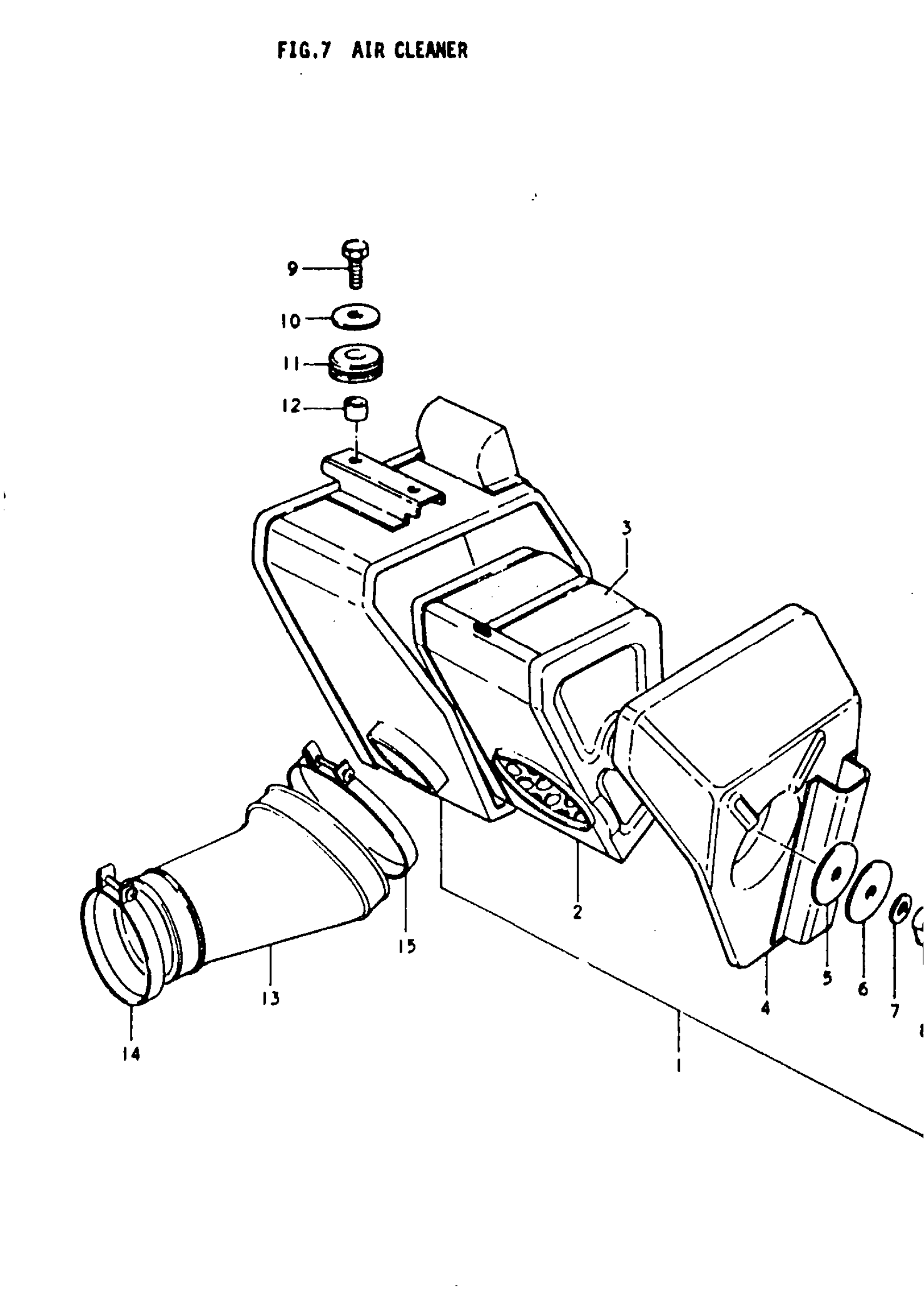

Suzuki TS250 (1979) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | B

13700-30510

Unavailable

1

CLEANER ASSY, AIR | C,N; Includes Item(s) 2 - 8

13700-30511

Unavailable

2

FILETER ASSY

13780-30510

Unavailable

3

FILTER

13781-30510

Unavailable

4

CAP

13771-30510

Unavailable

5

SEAL

13789-28010

$2.15

6

WASHER

13728-28010

Unavailable

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

NUT This part replaces 09144-06003.

08317-1206A

$2.40

9

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

10

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

11

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

12

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

13

HOSE, AIR INLET

13881-30500

Unavailable

14

CLAMP

09402-52306

$4.91

15

CLAMP

09402-66306

$6.42
