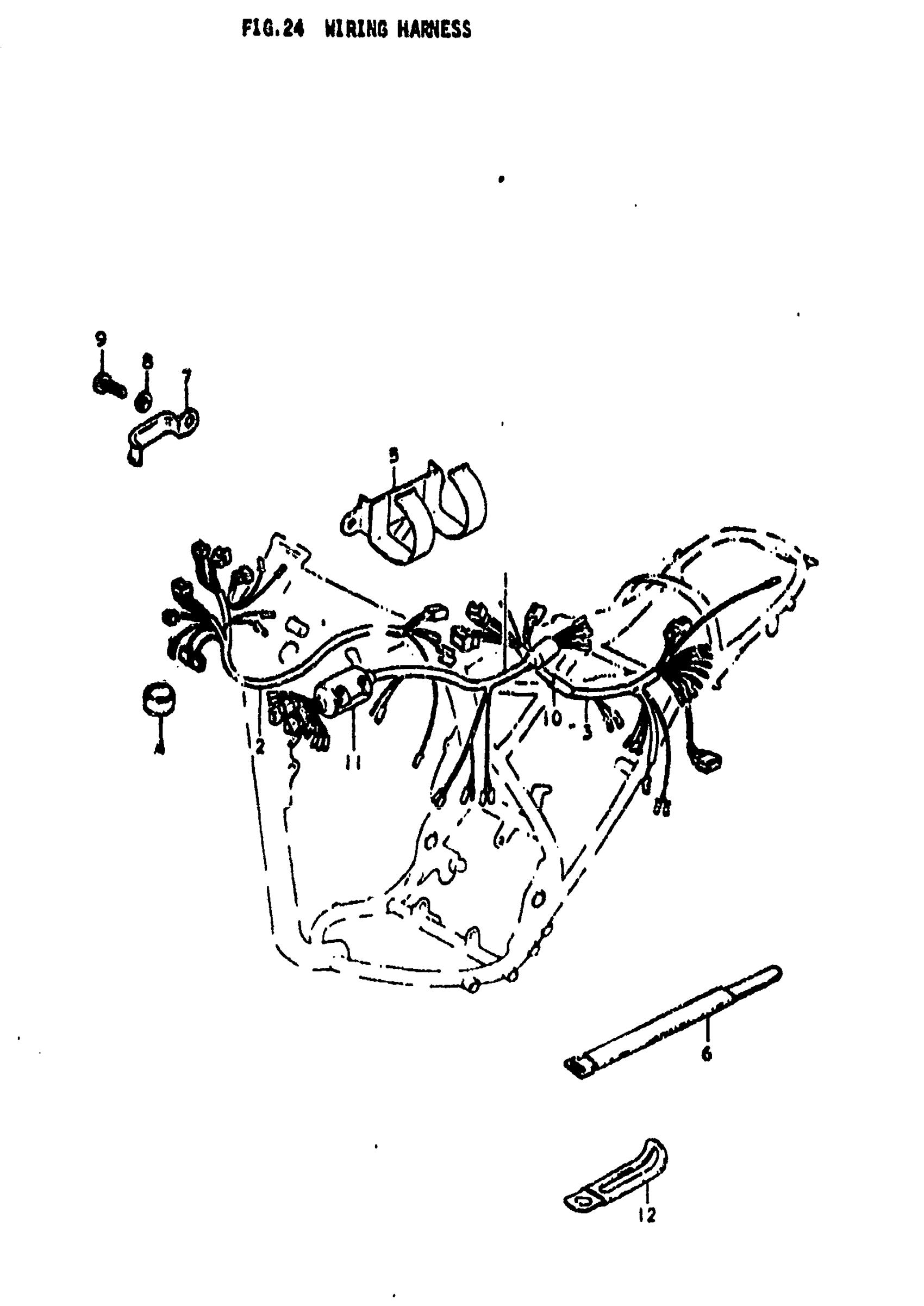

Suzuki TS250 (1976) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | K

36610-30601

Unavailable

2

WIRING HARNESS (1) | L ; TO 36610-25622 This part replaces 36610-25621.

36610-25626

Unavailable

2

WIRING HARNESS NO.1 | M ; TO 36610-25623

36610-25622

Unavailable

2

WIRING HARNESS (1) | A ; TO 36610-25626 This part replaces 36610-25625.

36610-25626

Unavailable

3

NO DESCRIPTION AVAILABLE | L ; TO 36620-30303 This part replaces 36620-30301.

36620-30308

Unavailable

3

NO DESCRIPTION AVAILABLE | M ; TO 36620-30305 This part replaces 36620-30304.

36620-30308

Unavailable

3

NO DESCRIPTION AVAILABLE | A ; TO 36620-30307 This part replaces 36620-30306.

36620-30308

Unavailable

4

BAND, WIRING HARNESS | K

33881-58001

Unavailable

5

CLAMP, WIRING HARNESS BOOT | K

36652-30000

Unavailable

6

CLAMP | A; L:110 This part replaces 09407-11302.

09407-18302

$2.28

6

CLAMP | K; L:120L,M,A; L:120

09407-12402

$3.04

6

CLAMP | K,L; L:180M,A; L:180 This part replaces 09407-18301.

09407-18302

$2.28

6

CLAMP(L:250) | K; L:250L,M,A; L:250 This part replaces 09407-25301.

09407-25302

Unavailable

7

CLAMP | L This part replaces 09403-07301.

09403-07309

Unavailable

7

CLAMP | K,L,MA This part replaces 09403-09307.

09403-09328

$1.77

8

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

9

SCREW | L,M,A This part replaces 02112-06128.

02112-06127

$1.84

10

TUBE,WIRING HARNESS | L

36611-29000

Unavailable

11

BOOT,WIRING HARNESS | FROM 36618-30600

36618-30610

$8.83

12

CLAMP | A This part replaces 09404-08402.

09404-08420

$3.16
