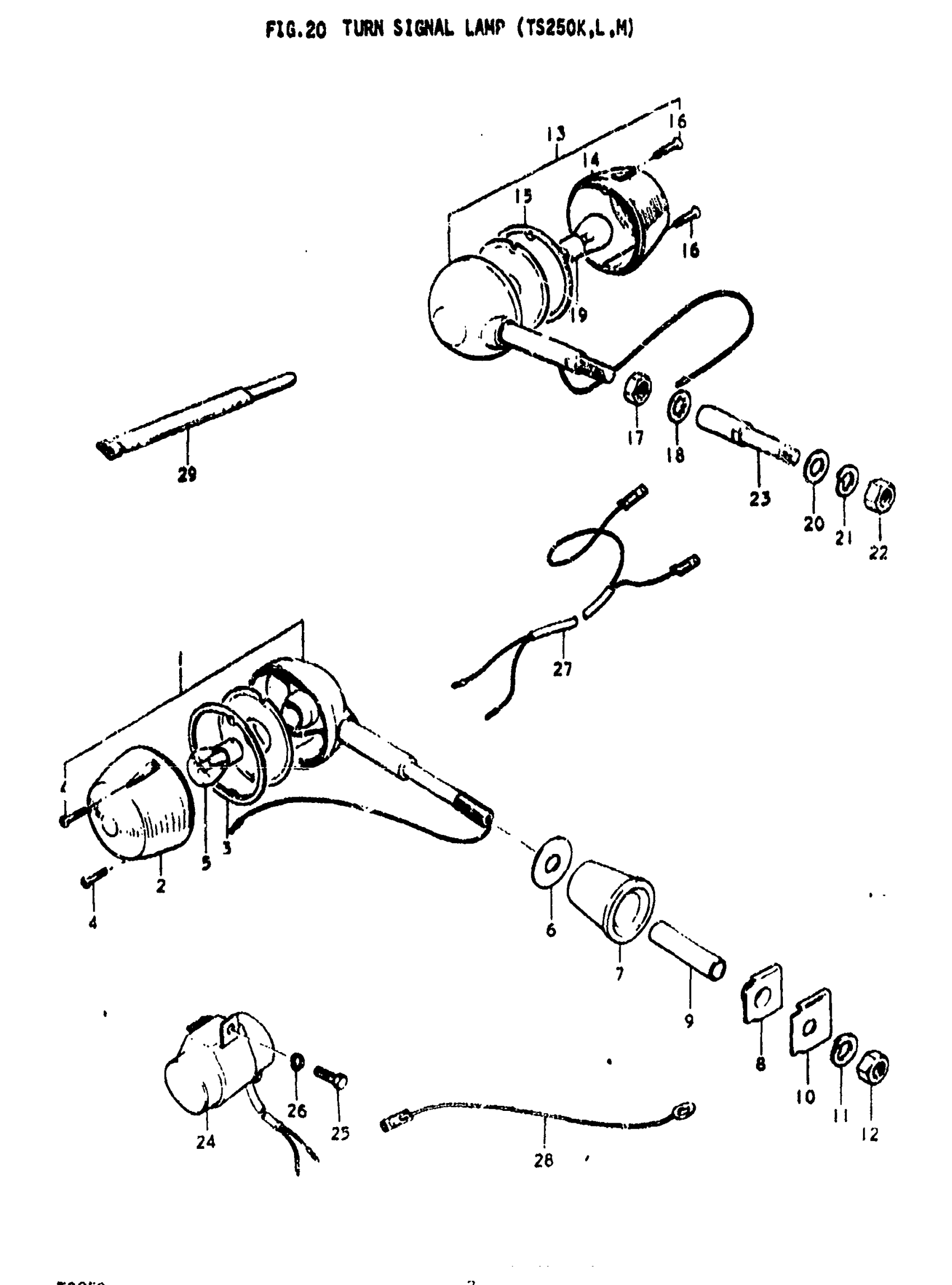

Suzuki TS250 (1976) TURN SIGNAL LAMP (TS250K Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 5

35601-18660

Unavailable

2

LENS

35612-12611

$12.50

3

GASKET

35613-03610

$13.34

4

SCREW This part replaces 02133-03167.

02132-03167

$1.49

5

BULB | 6V, 21CP

09471-06011

Unavailable

6

WASHER | 10.5x30x1.6

09160-10005

$1.87

7

CUSHION, NO.1

35692-30000

Unavailable

8

CUSHION, NO.2

35690-30300

Unavailable

9

SPACER

35695-18660

Unavailable

10

PLATE

35693-30300

Unavailable

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

NUT This part replaces 08312-12108.

08310-00107

$2.19

13

LAMP ASSY, REAR TURN SIGNAL | K,L; TO 35603-26611 This part replaces 35603-26610.

35603-26611

Unavailable

13

LAMP ASSY, REAR TURN SIGNAL | M; Includes Item(s) 14 - 19

35603-26611

Unavailable

14

LENS | K,L; RED

35652-22610

Unavailable

14

LENS | M; UNBER

35612-12611

$12.50

15

GASKET

35613-03610

$13.34

16

SCREW This part replaces 02133-03167.

02132-03167

$1.49

17

NUT This part replaces 08312-32108.

08310-00107

$2.19

18

LOCK WASHER

08323-11108

Unavailable

19

BULB | 6V, 21CP

09471-06011

Unavailable

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

NUT This part replaces 08312-12108.

08310-00107

$2.19

23

STAY, REAR TURN SIGNAL LAMP

35659-30600

Unavailable

24

RELAY ASSY,TRN | FROM 38610-28610 This part replaces 38610-28611.

38610-05X50

Unavailable

25

BOLT This part replaces 01112-06128.

01500-06127

$1.97

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

LEAD WIRE, REAR TURN SIGNAL

36853-30600

Unavailable

28

LEAD WIRE, FRONT TURN SIGNAL

36660-30000

Unavailable

29

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28
