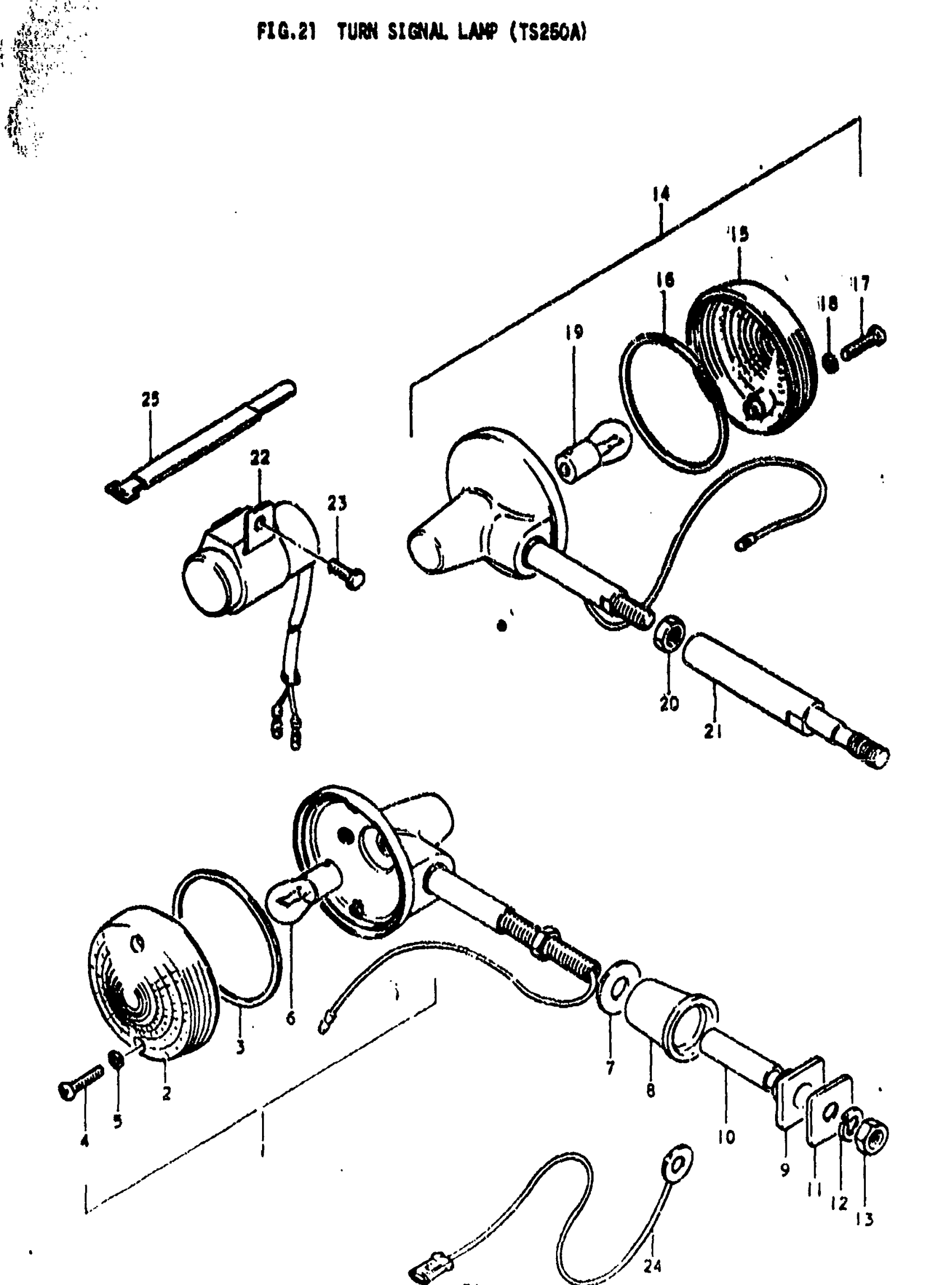

Suzuki TS250 (1976) TURN SIGNAL LAMP (TS250A) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 35601-30620.

35601-32020-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

SCREW

02111-04258

Unavailable

5

GASKET

35627-43010

$2.28

6

BULB | 6V, 21CP

09471-06011

Unavailable

7

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

8

CUSHION, NO.1

35692-30000

Unavailable

9

CUSHION, NO.2

35690-30300

Unavailable

10

SPACER

35695-18660

Unavailable

11

PLATE

35693-30300

Unavailable

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

13

NUT This part replaces 08312-12108.

08310-00107

$2.19

14

LAMP RR TURN SI | FROM 35603-25611; Includes Item(s) 15 - 20 This part replaces 35603-25610.

35603-25610-999

Unavailable

15

LENS

35612-28620

$8.98

16

GASKET

35613-28620

$4.55

17

SCREW

02111-04258

Unavailable

18

GASKET

35627-43010

$2.28

19

BULB | 6V,21CP

09471-06011

Unavailable

20

NUT This part replaces 08312-32108.

08310-00107

$2.19

21

STAY, REAR TURN SIGNAL LAMP

35659-32600

Unavailable

22

RELAY ASSY,TRN This part replaces 38610-28611.

38610-05X50

Unavailable

23

BOLT This part replaces 01112-06128.

01500-06127

$1.97

24

LEAD WIRE, FRONT EARTH

36660-30000

Unavailable

25

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

$2.28
