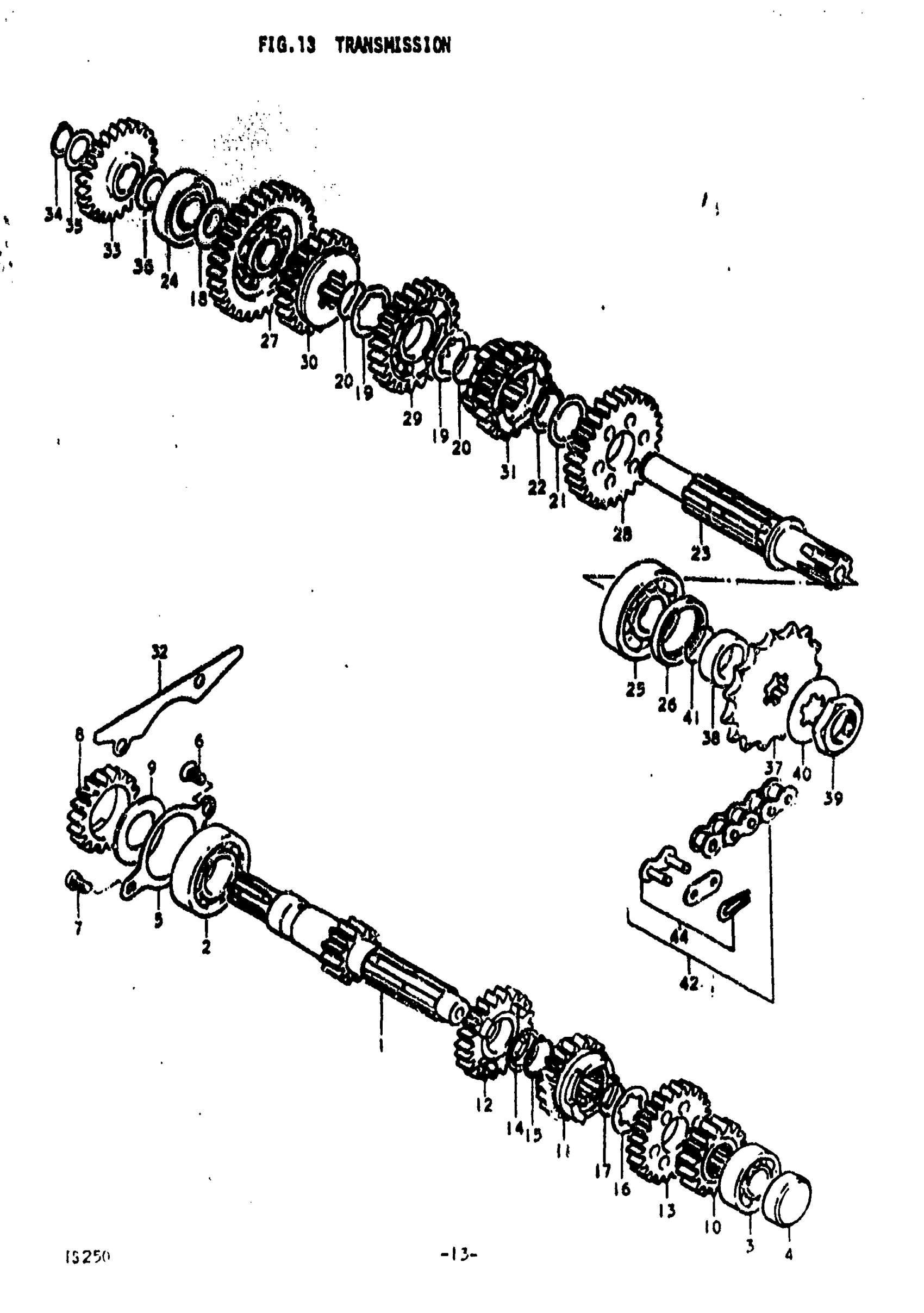

Suzuki TS250 (1976) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | NT:12

24121-30000

Unavailable

2

BEARING (25X52X15) This part replaces 08143-62050.

08143-62057

$24.40

3

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

4

PLUG | A This part replaces 09241-30001.

09241-30003

$5.97

5

HOLDER, BEARING

24741-30100

Unavailable

6

SCREW This part replaces 02122-06128.

02122-06127

$1.84

7

SCREW This part replaces 02112-06108.

02112-06107

$1.49

8

GEAR, KICK STARTER DRIVEN | K; NT:18 TO 26281-30001 This part replaces 26281-30700.

26281-30001

Unavailable

8

GEAR, KICK STARTER DRIVEN | L; NT:18

26281-30001

Unavailable

9

WASHER | K,L,M; 25x41x3

09160-25009

$5.36

10

GEAR, 2ND DRIVE | NT:15

24221-30000

Unavailable

11

GEAR, 3RD DRIVE | NT:16

24231-30100

Unavailable

12

GEAR, 4TH DRIVE | NT:21

24241-30000

Unavailable

13

GEAR, 5TH DRIVE | NT:23

24251-30100

Unavailable

14

WASHER (22X28X1.0) | 22x28x1 This part replaces 08211-22281.

09181-22139

$3.48

15

CIRCLIP | K,L,M This part replaces 09380-22001.

08331-31229

$2.48

15

CIRCLIP | A This part replaces 08331-11229.

08331-31229

$2.48

16

WASHER | 18.5x29x1

09167-22007

Unavailable

17

CIRCLIP

09380-22003

$1.92

18

THRUST WASHER | 17x25x1

08211-17251

$2.83

19

WASHER

09167-25004

Unavailable

20

CIRCLIP

09380-25006

Unavailable

21

THRUST WASHER | 25x32x1

08211-25321

$3.27

22

SNAP RING

09380-25003

$3.04

23

DRIVESHAFT

24131-30001

Unavailable

24

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

$18.47

25

BEARING, RH (22X56X16) | 22x56x16 This part replaces 09262-22006.

09262-22025

$57.67

26

OIL SEAL

09283-32003

$7.31

27

GEAR, 1ST DRIVEN | NT:29

24310-30001

Unavailable

28

GEAR, 2ND DRIVEN | NT:27

24321-30000

Unavailable

29

GEAR, 3RD DRIVEN | NT:23

24331-30100

Unavailable

30

GEAR, 4TH DRIVEN | NT:21

24341-30001

Unavailable

31

GEAR, 5TH DRIVEN | NT:19

24351-30101

Unavailable

32

PLATE, OIL RESEVOIR

24871-30000

Unavailable

33

GEAR, KICK STARTER IDLE | NT:22 This part replaces 26260-30001.

26260-30002

Unavailable

34

CIRCLIP

09380-17001

$1.98

35

THRUST WASHER | 17x24x1

08211-17241

$2.54

36

WASHER

09164-17002

Unavailable

37

SPROCKET, ENGINE | NT:15

27511-18710

Unavailable

37

SPROCKET, ENGINE | OPT NT:13

27511-18700

Unavailable

37

SPROCKET, ENGINE | OPT NT:14

27511-18000

Unavailable

37

SPROCKET, ENGINE | OPT NT:16

27511-18720

Unavailable

38

SPACER | 22x32x11.3

09180-22007

Unavailable

39

NUT

09140-22003

Unavailable

40

WASHER

09167-22005

$2.11

41

O RING

09280-22003

$1.72

42

CHAIN ASSY, DRIVE | #3250x1042; Includes Item(s) 43 - 43

27600-16410

Unavailable

43

JOINT, CHAIN | K,L,M; TO 27620-301.0 This part replaces 27620-16410.

27620-30110

Unavailable

43

JOINT | A

27620-30110

Unavailable
