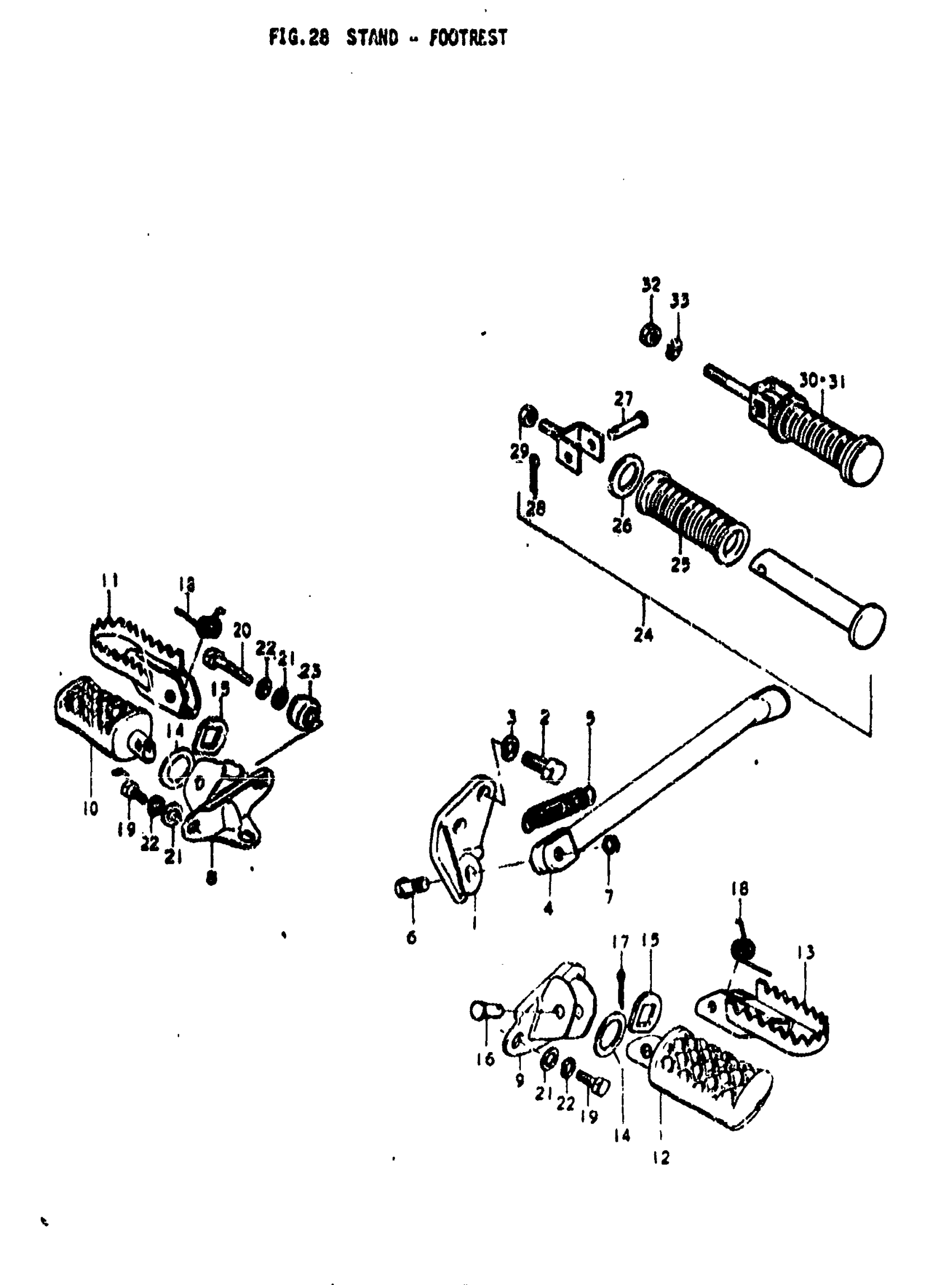

Suzuki TS250 (1976) STAND - FOOTREST Diagram

#

Description
Price

1

BRACKET, PROP STAND

42330-30000

Unavailable

1

BRACKET, PROP STAND | A; F. NO. 106833~

42330-30300

Unavailable

2

BOLT This part replaces 01122-10258.

01500-10257

$3.85

3

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

4

STAND, PROP | K,L,M; TO 42310-30001 This part replaces 42310-30000.

42310-30001

Unavailable

4

STAND, PROP | A

42310-30001

Unavailable

4

STAND, PROP | A; F.NO. 106833~

42310-30300

Unavailable

5

SPRING This part replaces 09443-14005.

09443-14017

$3.04

6

BOLT | 10x30

09100-10067

$2.61

7

NUT This part replaces 08312-32108.

08310-00107

$2.19

8

HOLDER, FOOTREST RH | K,L,M; FROM 43510-30000

43510-30001

Unavailable

8

HOLDER, FOOTREST RH | A

43510-30002

Unavailable

9

HOLDER, FOOTREST LH | K,L,M; FROM 43520-30000

43520-30001

Unavailable

9

HOLDER, FOOTREST LH | A

43520-30002

Unavailable

10

RUBBER, RH | K; TO 43550-25301 USED WITH 43581-25300 This part replaces 43550-25000.

43550-25301

Unavailable

10

FOOTREST, RH | L,M

43550-25301

Unavailable

11

FOOTREST, RH | A

43550-25302

Unavailable

12

RUBBER, LH | K; TO 43560-25301 USED WITH 43581-25300 This part replaces 43560-25000.

43560-25301

Unavailable

12

FOOTREST, LH | L,M

43560-25301

Unavailable

13

FOOTREST, LH | A

43560-25302

Unavailable

14

WASHER | K; CIRCLE SHAPED This part replaces 09160-22002.

09160-22033

$3.89

15

WASHER | L,M; SQUARE SHAPED

43581-25300

Unavailable

16

PIN

09200-08002

$2.05

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

SPRING | A

09448-14012

$3.04

19

BOLT, LH | 8x14 This part replaces 09100-08067.

09100-08143

$2.29

20

BOLT This part replaces 01122-08408.

01500-0840A

$2.60

21

WASHER This part replaces 08322-21088.

08322-01087

$2.13

22

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

CUSHION, KICK STARTER LEVER

43534-16400

Unavailable

24

FOOTREST ASSY,P | K,L; Includes Item(s) 25 - 29 This part replaces 43600-03001.

43600-09D00

$27.30

25

RUBBER, FOOTREST | K,L

43612-03001

$5.15

26

WASHER | K,L; 19.5x32x2 This part replaces 09160-19006.

09160-19024

$2.65

27

PIN | K,L

09200-06010

$1.72

28

COTTER PIN | K,L This part replaces 04111-20208.

04111-2020A

$1.49

29

NUT | K,L This part replaces 08312-32108.

08310-00107

$2.19

30

FOOTREST ASSY, PILLION LH | M

43600-36200

Unavailable

31

FOOTREST ASSY, PILLION | MA

43600-28000

Unavailable

32

NUT, FIXED DRIVE FACE | M,A This part replaces 08312-31128.

09140-12039

$3.05

33

LOCK WASHER | M This part replaces 08321-21128.

08321-01127

$2.06
