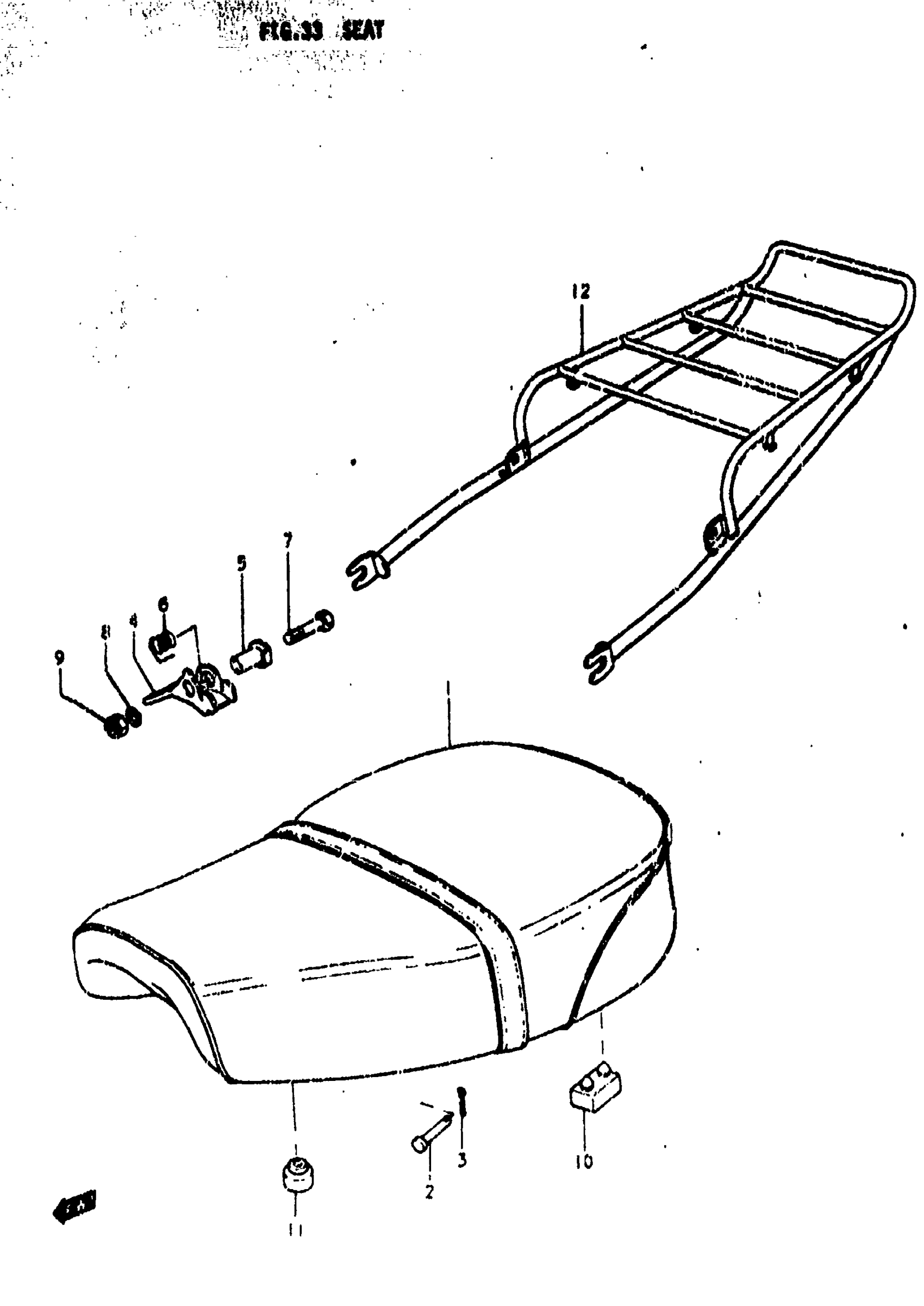

Suzuki TS250 (1976) SEAT Diagram

#

Description
Price

1

SEAT ASSY | K,L; FROM 45100-30000-403

45100-30001-403

Unavailable

1

SEAT ASSY | M; FROM 45100-30001-403 This part replaces 45100-30002-403.

45100-30003-865

Unavailable

1

SEAT ASSY | A; FROM 45100-30003-403

45100-30003-865

Unavailable

2

PIN

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

4

CLAMP, SEAT

45211-26001

Unavailable

5

BOSS, SEAT CLAMP

45210-26001

Unavailable

6

SPRING

09448-17007

Unavailable

7

BOLT | K,L,M This part replaces 01122-08458.

01500-08453

$2.50

7

BOLT | A This part replaces 01122-08408.

01500-0840A

$2.60

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

NUT This part replaces 08312-11088.

08310-00087

$2.13

10

CUSHION

09321-08006

$2.90

11

CUSHION

09321-10002

$2.22

12

CARRIER | K,L,M; OPT TO 46310-30001

46310-30000

Unavailable

12

CARRIER | A; OPT TO 46310-30002

46310-30001

Unavailable
