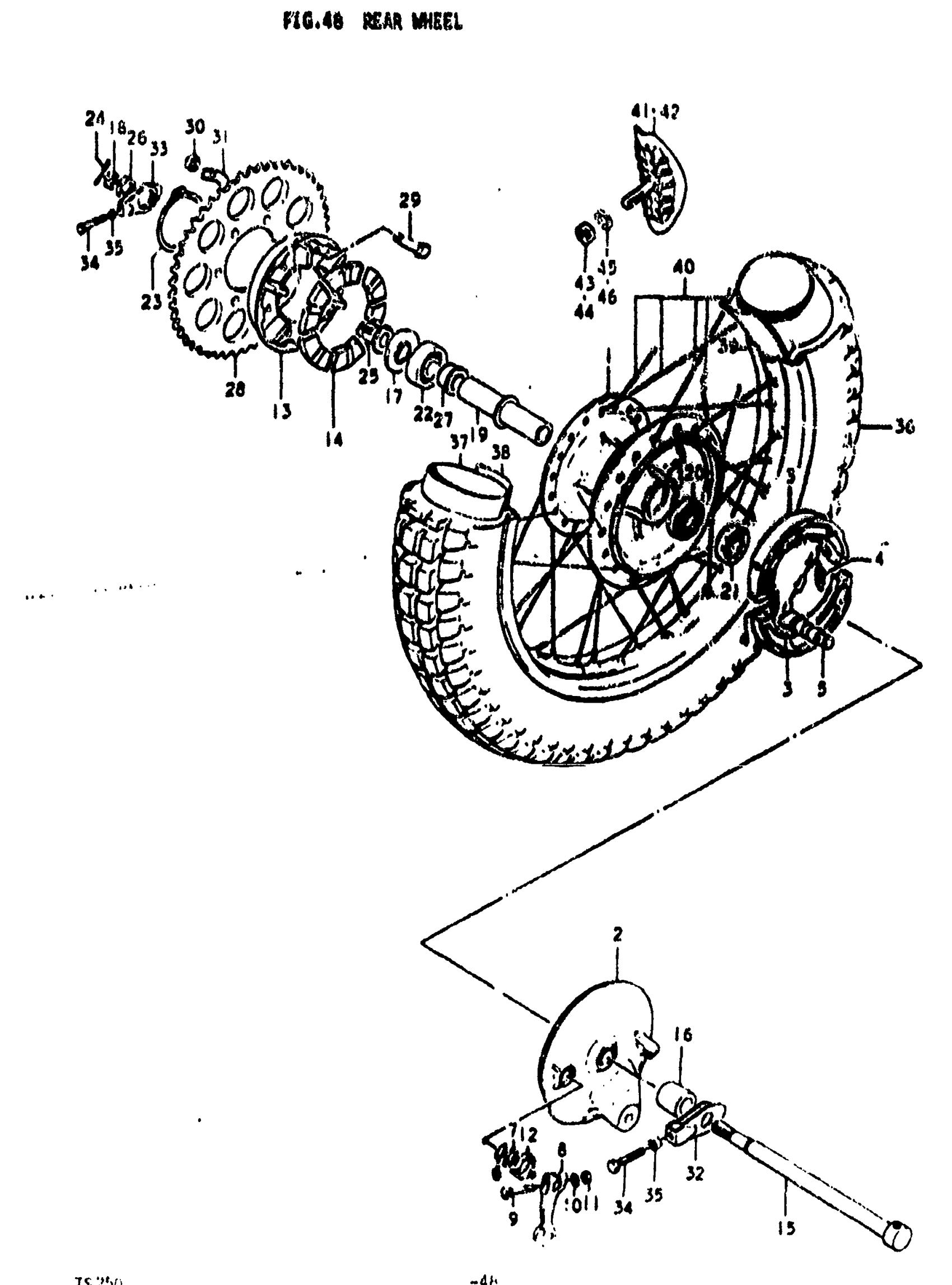

Suzuki TS250 (1976) REAR WHEEL Diagram

#

Description
Price

1

HUB, WHEEL

64110-30000

Unavailable

2

PANEL | K; TO 64210-30001

64210-30000

Unavailable

2

PANEL | L,M,A

64210-30001

Unavailable

3

SHOE SET, REAR BRAKE | K,L; TO 54410-08002 This part replaces 54410-08001.

64400-02830

$55.17

3

SHOE SET, REAR BRAKE | M,A This part replaces 54410-08002.

64400-02830

$55.17

4

SPRING | D*:2.0

55420-30000

$4.48

4

SPRING | A; D*:2.3

55420-41100

Unavailable

5

CAM, BRAKE | K,L; TO 54440-08001

54440-30001

Unavailable

5

CAM, REAR BRAKE | M,A This part replaces 54440-08001.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

8

NO DESCRIPTION AVAILABLE This part replaces 64451-30000.

64451-30001

Unavailable

9

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

13

NO DESCRIPTION AVAILABLE | TO 64610-30001 USED WITH 09160-62001 This part replaces 64610-30000.

64610-30001

Unavailable

14

CUSHION, REAR HUB | K,L; TO 64650-30001 This part replaces 64650-30000.

64650-30002

Unavailable

14

CUSHION, REAR HUB | M; TO 64650-30002 This part replaces 64650-30001.

64650-30002

Unavailable

14

CUSHION, REAR HUB | A

64650-30002

Unavailable

15

AXLE, REAR

64711-16500

Unavailable

16

SPACER | 15.2x26x20

09180-15014

Unavailable

17

SPACER, LH

64750-30000

Unavailable

18

NUT

09141-14001

$4.60

19

SPACER, REAR HUB BEARING

64730-30000

Unavailable

20

BEARING (15X42X13) This part replaces 08113-63020.

09262-15027

$23.39

21

OIL SEAL

09284-26001

Unavailable

22

BEARING This part replaces 08123-63040.

08123-6304B

$24.07

23

CIRCLIP This part replaces 08331-11628.

08331-31629

$7.42

24

PIN This part replaces 04111-30408.

04111-3040A

$1.59

25

SPACER, CHAIR ADJUSTER LH

64791-30000

Unavailable

26

NUT This part replaces 09140-24002.

09140-24010

Unavailable

27

HOLDER, BEARING LH

64733-30000

Unavailable

28

SPROCKET, REAR | K,L; NT:39, OPTM,A; NT:39, OPT

64511-30000

Unavailable

28

SPROCKET,RR 40T | K,L; NT:40, OPT, STDM,A; NT:40, OPT, STD This part replaces 64511-30700.

64511-30701

Unavailable

28

SPROCKET, REAR | NT:41, OPT

64511-30710

Unavailable

29

BOLT

09105-08001

$2.06

30

NUT This part replaces 08312-11088.

08310-00087

$2.13

31

WASHER This part replaces 09169-08010.

09169-08011

$2.16

32

ADJUSTER, CHAIN | TO 61410-30001 This part replaces 61410-30000.

61410-30003

Unavailable

33

ADJUSTER, CHAIN LH | K; TO 61420-30001 This part replaces 61420-30000.

61420-30002

Unavailable

33

ADJUSTER, CHAIN LH | L,M,A; TO 61420-30002 This part replaces 61420-30001.

61420-30002

Unavailable

34

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

TIRE, REAR | 4.00-18

65100-30600

Unavailable

37

TUBE, INNER | 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

38

IN TUBE PROTECT | 25x18 This part replaces 65261-15010.

55261-26F10

$4.39

39

RIM, WHEEL | K,L,M; 1.858x18

65311-30020

Unavailable

39

RIM, WHEEL | A; 1.858x18 TAKASAGO

65311-30600

Unavailable

39

RIM, WHEEL | A; 1.858x18 AKRONT TO 65311-30600 USED WITH 65300-16828 This part replaces 65311-30610.

65311-30600

Unavailable

40

SPOKE ASSY, REAR | TAKASAGO This part replaces 65300-16828.

65320-16520

Unavailable

40

SPOKE SET, REAR | A; AKRONT

65300-30840

Unavailable

41

STOPPER, BEAD | K; 1.85B TO 65270-30001L,M; 1.85B TO 65270-30001 This part replaces 65270-30000.

65270-43D00

$58.75

42

STOPPER, BEAD | A; 1.858 This part replaces 65270-30001.

65270-43D00

$58.75

43

NUT | KL,M

09159-08016

Unavailable

44

NUT | A This part replaces 08312-11088.

08310-00087

$2.13

45

WASHER | KL,M This part replaces 08322-21088.

08322-01087

$2.13

46

WASHER | A This part replaces 08322-11088.

08322-01087

$2.13
