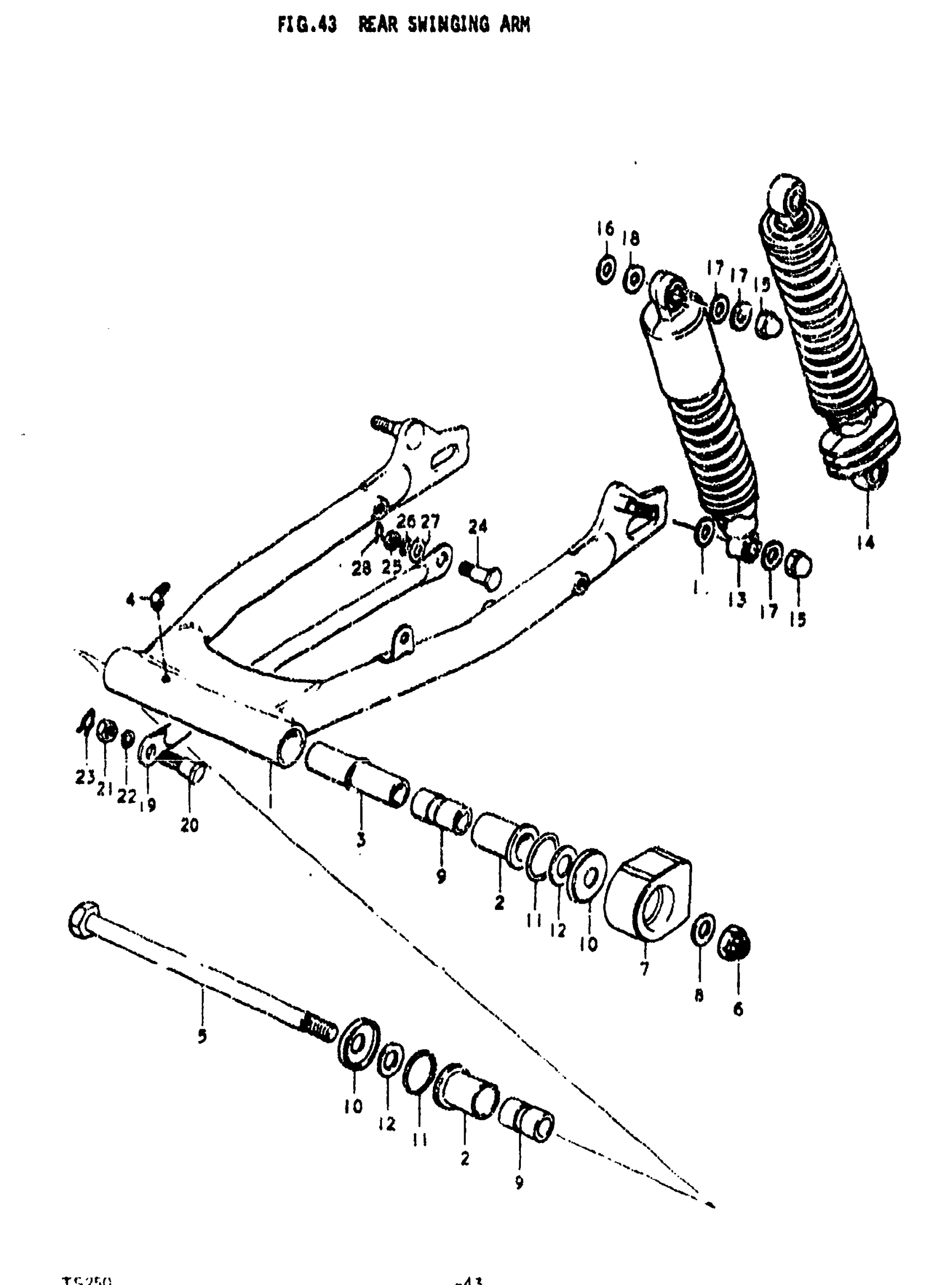

Suzuki TS250 (1976) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | K,L; TO 61100-30860-019

61101-30806-019

Unavailable

1

REAR SWINGING ARM SET | M; TO 61100-30861-019 This part replaces 61100-30860-019.

61100-30861-019

Unavailable

1

REAR SWINGING ARM SET | A; Includes Item(s) 2 - 3

61100-30861-019

Unavailable

2

BUSHING | TO 09307-18002 This part replaces 09307-18001.

09307-18002

$10.21

3

SPACER

61280-30000

Unavailable

4

NIPPLE, GREASE | K,L This part replaces 08351-31008.

08351-3100A

$4.45

5

SHAFT, REAR SWINGING ARM

61211-16500

Unavailable

5

SHAFT, REAR SWINGING ARM | A; F.NO.102343~

61211-30001

Unavailable

6

NUT

09159-12102

$3.23

7

BUFFER, CHAIN TOUCH DIFENCE

61273-30000

Unavailable

8

WASHER This part replaces 08322-11128.

08322-01127

$1.84

9

SPACER, REAR SWINGING ARM

61251-28000

$13.36

10

COVER, DUST SEAL

61232-09200

Unavailable

11

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

12

WASHER | 12.5x24x2.3

09160-12005

$2.38

13

SHOCK ABSORBER ASSY, REAR | K

62100-30010

Unavailable

13

SHOCK ABSORBER ASSY, REAR | L

62100-30011

Unavailable

13

SHOCK ABSORBER ASSY, REAR | M

62100-30012

Unavailable

14

SHOCK ABSORBER ASSY, REAR | A

62100-30600

Unavailable

15

NUT This part replaces 08313-11107.

08313-10107

$2.50

16

WASHER This part replaces 08322-11128.

08322-01127

$1.84

17

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

18

WASHER | A; 12.5x24x1.6 This part replaces 09160-12004.

09160-12088

$2.00

19

TORQUE LINK, REAR | K; TO 64311-30001

64310-30000

Unavailable

19

TORQUE LINK, REAR | L,M,A

64311-30001

Unavailable

20

BOLT

09111-08012

$3.78

21

NUT

09140-08008

$1.49

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

CLIP | K

09384-06001

$1.49

23

CLIP | L,M,A This part replaces 09385-10001.

09385-10005

$1.56

24

BOLT | K; TO 09111-10009

09119-10001

Unavailable

24

BOLT | L,M,A

09111-10009

Unavailable

25

NUT This part replaces 08311-31108.

08310-00107

$2.19

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

27

WASHER | 12.5x24x1.6 This part replaces 09160-12004.

09160-12088

$2.00

28

CLIP | K

09384-08001

Unavailable
