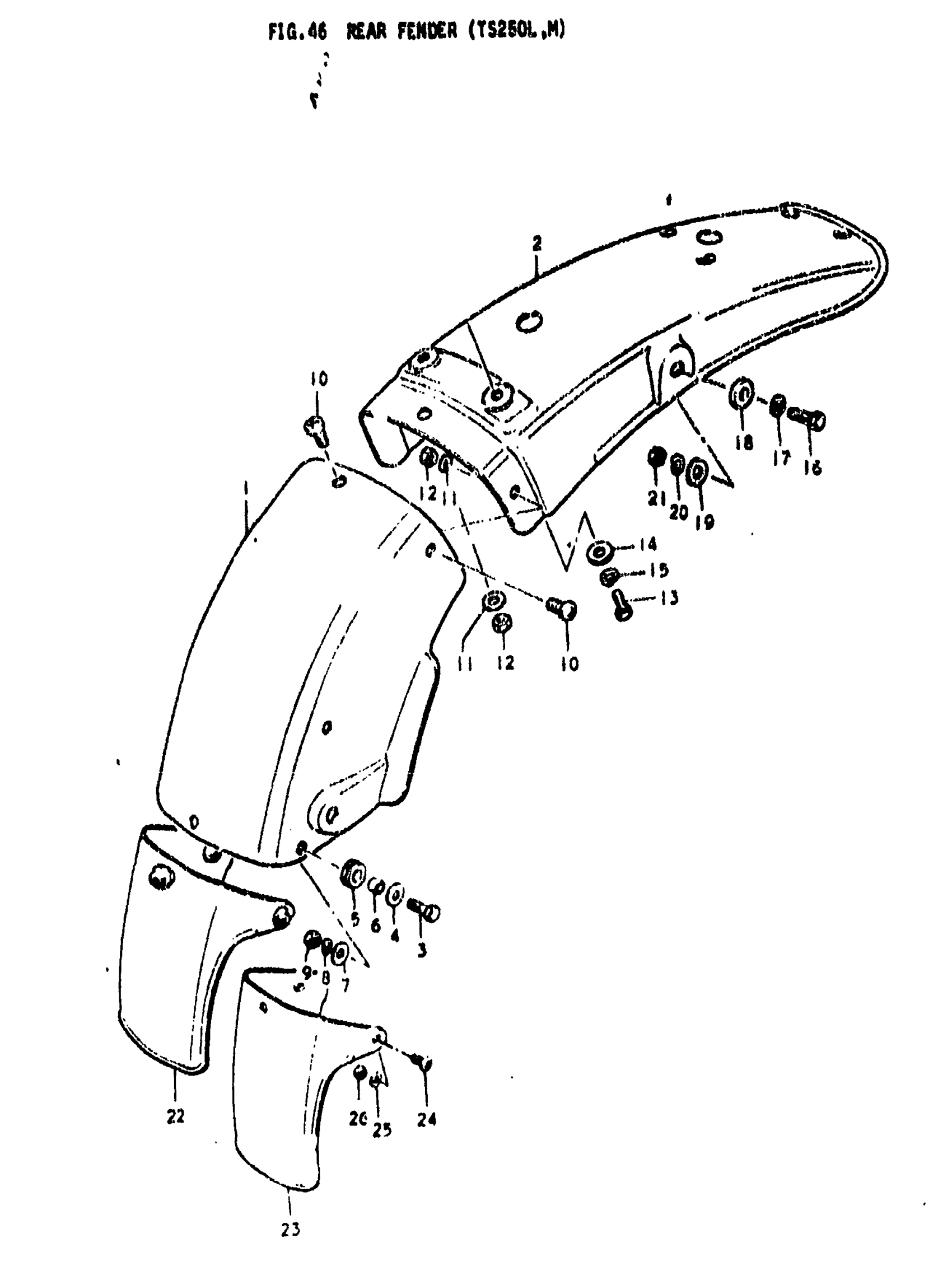

Suzuki TS250 (1976) REAR FENDER (TS250L Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT | L; TO 63110-30620

63112-30002-019

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 63110-30620.

63110-30620-019

Unavailable

2

NO DESCRIPTION AVAILABLE | L; TO 63110-30301-293 This part replaces 63110-30300-293.

63110-30302-13L

Unavailable

2

FENDER, REAR | M; TO 63110-30301-737

63110-30300-737

Unavailable

3

BOLT This part replaces 01112-06208.

01500-06207

$2.28

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

6

SPACER

09180-06038

$1.98

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

SCREW This part replaces 02141-05107.

02142-05107

$1.49

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

NUT This part replaces 08311-31058.

08310-00057

$1.84

13

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

14

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

BOLT This part replaces 01112-06258.

01500-06257

$1.97

17

SPACER | 7x25x10

09180-07002

Unavailable

18

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

LOCK WASHER

08321-11068

Unavailable

21

.NUT This part replaces 08311-11068.

08310-00067

$2.13

22

MUD GUARD | L; TO 63411-30002

63400-30002

Unavailable

23

MUD GUARD | M

63411-30002

Unavailable

24

SCREW | M This part replaces 02141-05107.

02142-05107

$1.49

25

WASHER | M This part replaces 08322-21058.

08322-01057

$2.13

26

NUT | M This part replaces 08311-31058.

08310-00057

$1.84
