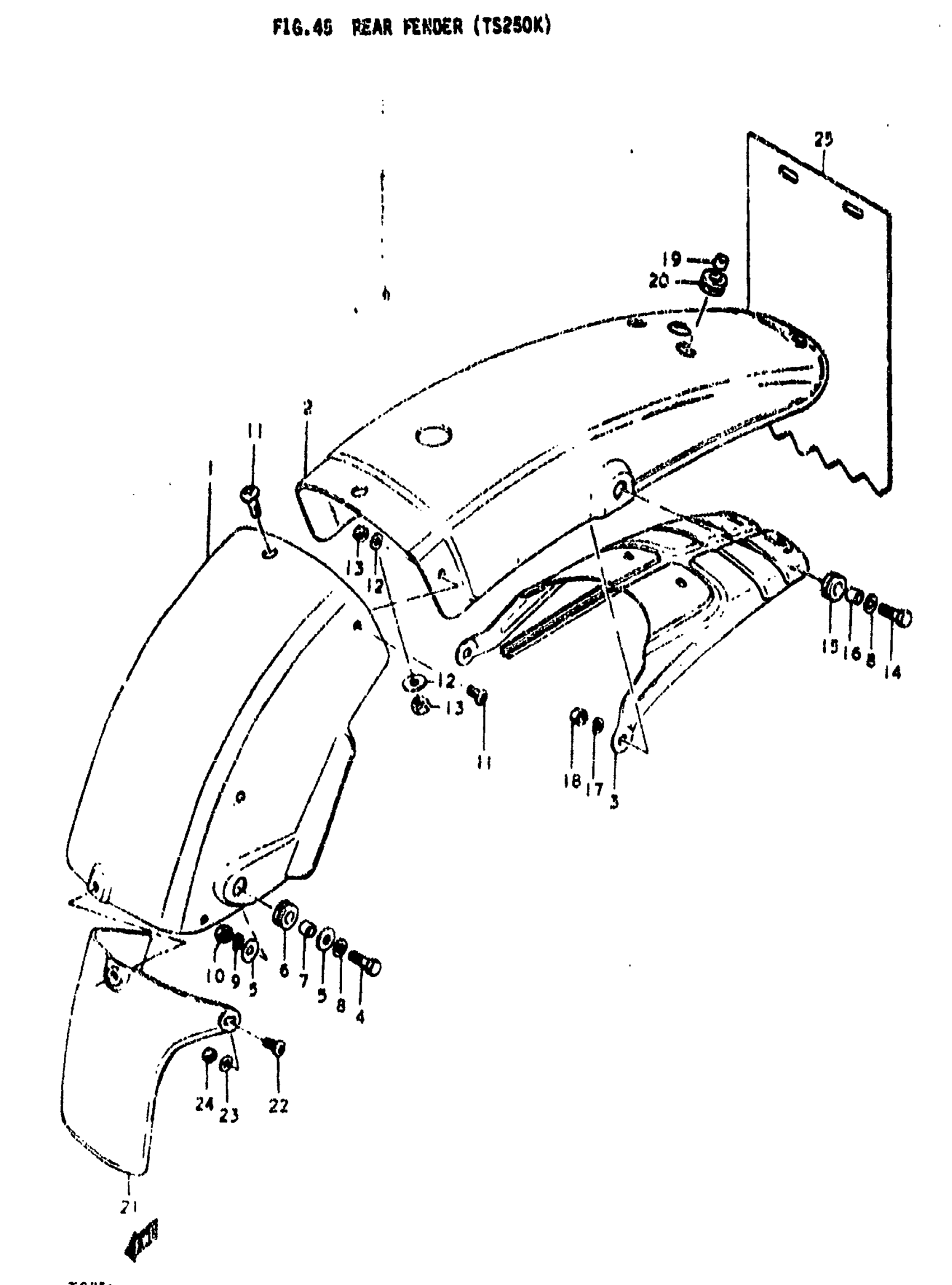

Suzuki TS250 (1976) REAR FENDER (TS250K) Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT | TO 63112-30002-019

63112-30001

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-30100-709.

63113-30100-737

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 63113-30100-714.

63113-30100-737

Unavailable

3

REINFOCEMENT, REAR FENDER

63120-30000

Unavailable

4

BOLT This part replaces 01112-06208.

01500-06207

$2.28

5

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

7

SPACER | 6.1x9x7.5

09180-06038

$1.98

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

SCREW This part replaces 02141-05107.

02142-05107

$1.49

12

WASHER This part replaces 08322-21058.

08322-01057

$2.13

13

NUT This part replaces 08311-31058.

08310-00057

$1.84

14

BOLT This part replaces 01112-06208.

01500-06207

$2.28

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER | 6.1x9x7.5

09180-06038

$1.98

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.NUT This part replaces 08311-11068.

08310-00067

$2.13

19

SPACER | 6.1x9x7.5

09180-06038

$1.98

20

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

21

MUD GUARD, REAR FENDER

63411-30001

Unavailable

22

SCREW This part replaces 02141-05107.

02142-05107

$1.49

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

NUT This part replaces 08311-31058.

08310-00057

$1.84

25

FLAP, REAR FENDER MUD | OPT

63331-26000

Unavailable
