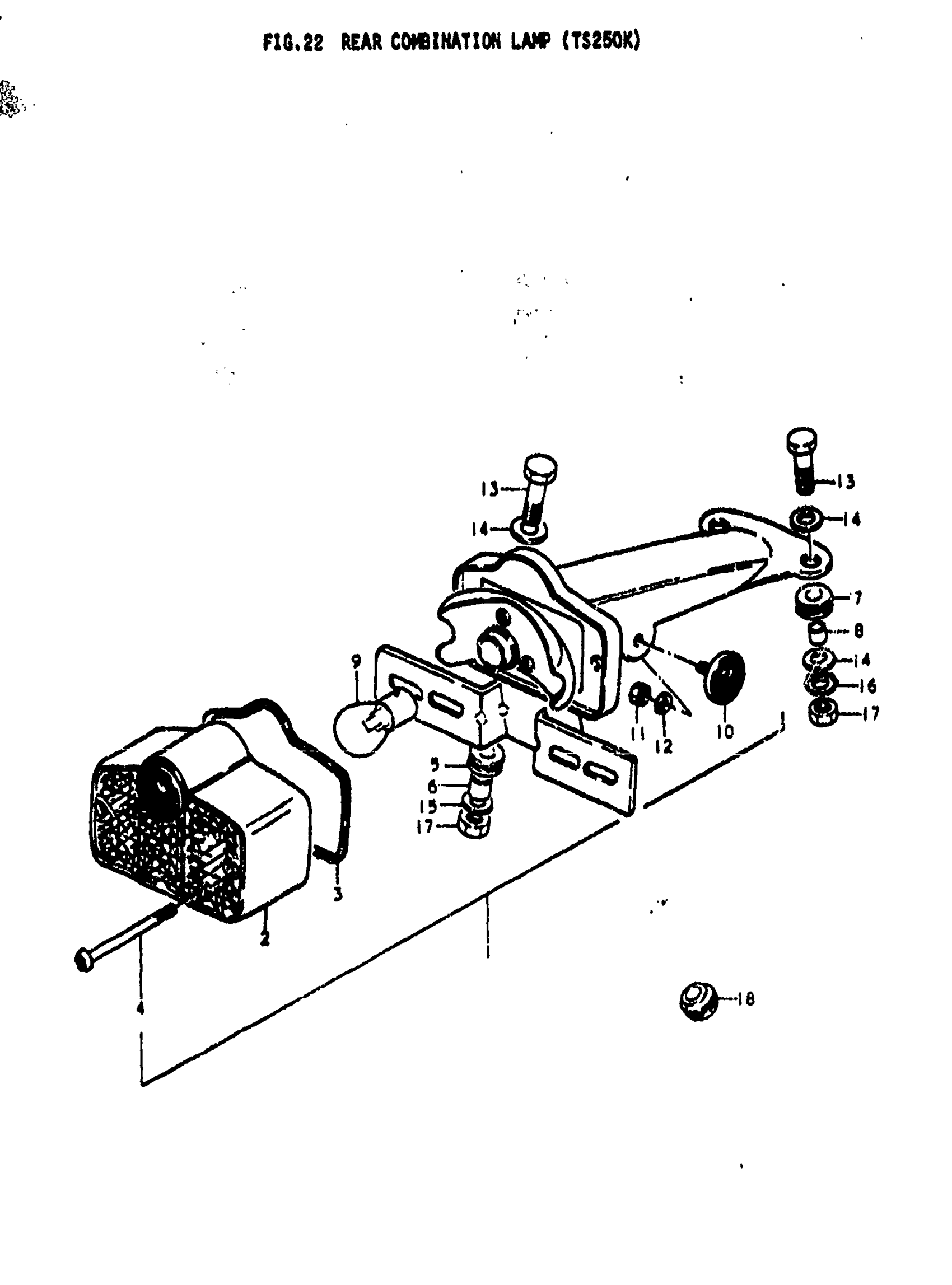

Suzuki TS250 (1976) REAR COMBINATION LAMP (TS250K) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-30691

Unavailable

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

$59.80

3

GASKET

35713-27630

$6.30

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

$1.65

5

CUSHION

35765-22210

$3.84

6

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

7

CUSHION

35765-15010

Unavailable

8

SPACER This part replaces 35766-15010.

35766-37110

$5.28

9

BULB | 6V, 32/3CP

09471-06030

Unavailable

10

REFLEX REFLECTOR, REAR

35970-31610

Unavailable

11

NUT This part replaces 08311-11058.

08310-00057

$1.84

12

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

13

BOLT, REAR This part replaces 01112-06308.

01500-06307

$2.48

14

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

LOCK WASHER This part replaces 08323-21068.

08323-31068

Unavailable

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

GROMMET

09308-07002

$2.12
