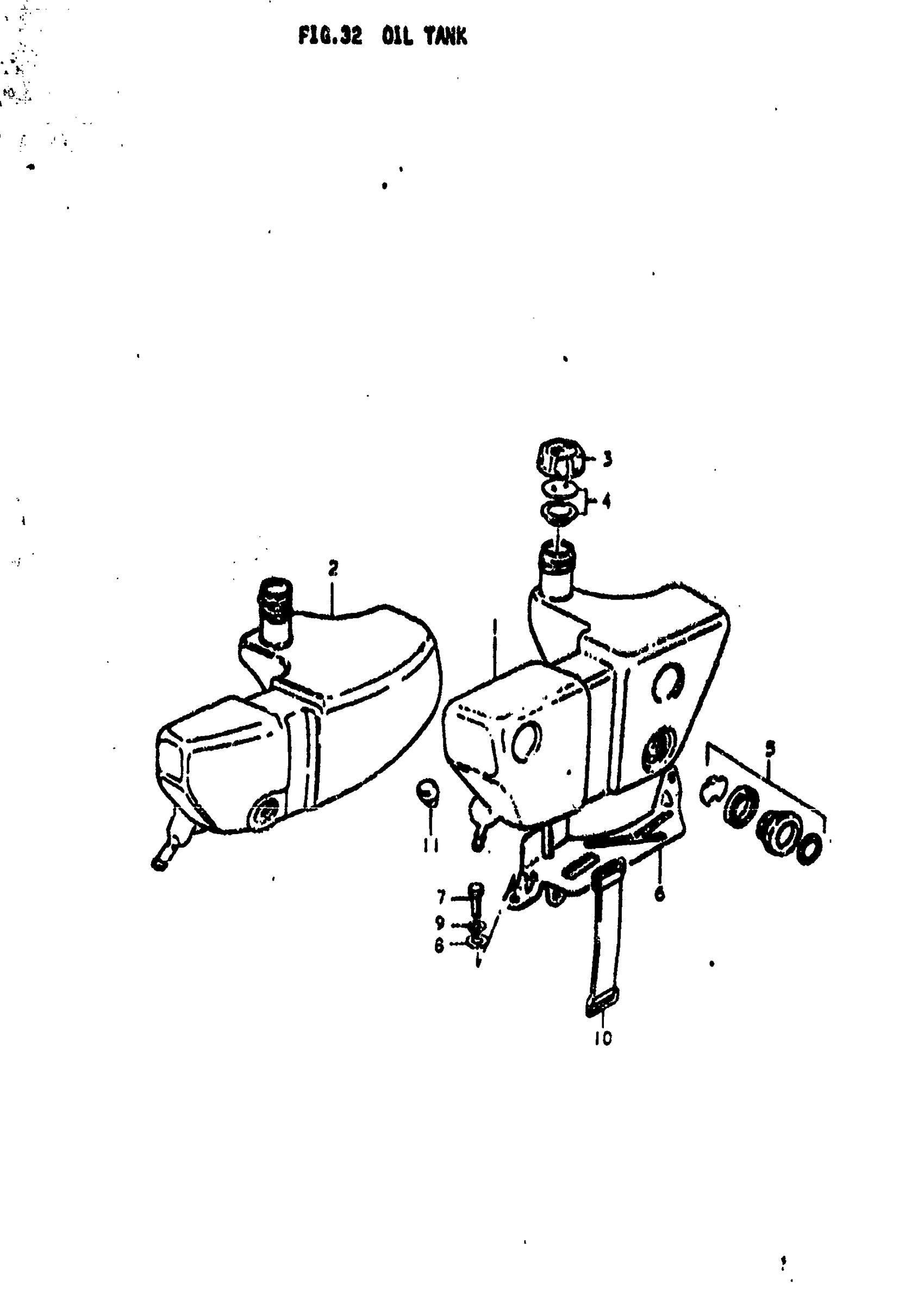

Suzuki TS250 (1976) OIL TANK Diagram

#

Description
Price

1

OIL TANK | K,L,M

44611-30001

Unavailable

2

OIL TANK | A

44611-30600

Unavailable

3

CAP, OIL TANK | K,L,M This part replaces 44651-05000.

44651-05003

$5.05

3

CAP, OIL TANK | A; FROM 44651-05001 This part replaces 44651-05002.

44651-05003

$5.05

4

GASKET SET | FROM 44600-35820 TO 44600-30832 This part replaces 44600-35821.

44600-30833

$5.42

5

OIL LEVEL INSPE This part replaces 44600-31830.

44600-31832

$11.07

6

HOLDER, OIL TANK | K,L,M; TO 44820-30600

44820-30000

Unavailable

6

HOLDER, OIL TANK | A

44820-30600

Unavailable

7

BOLT This part replaces 01112-06128.

01500-06127

$1.97

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

BAND

09462-00043

$4.11

11

CUSHION This part replaces 09321-06013.

09321-06036

$1.52
