Partiron

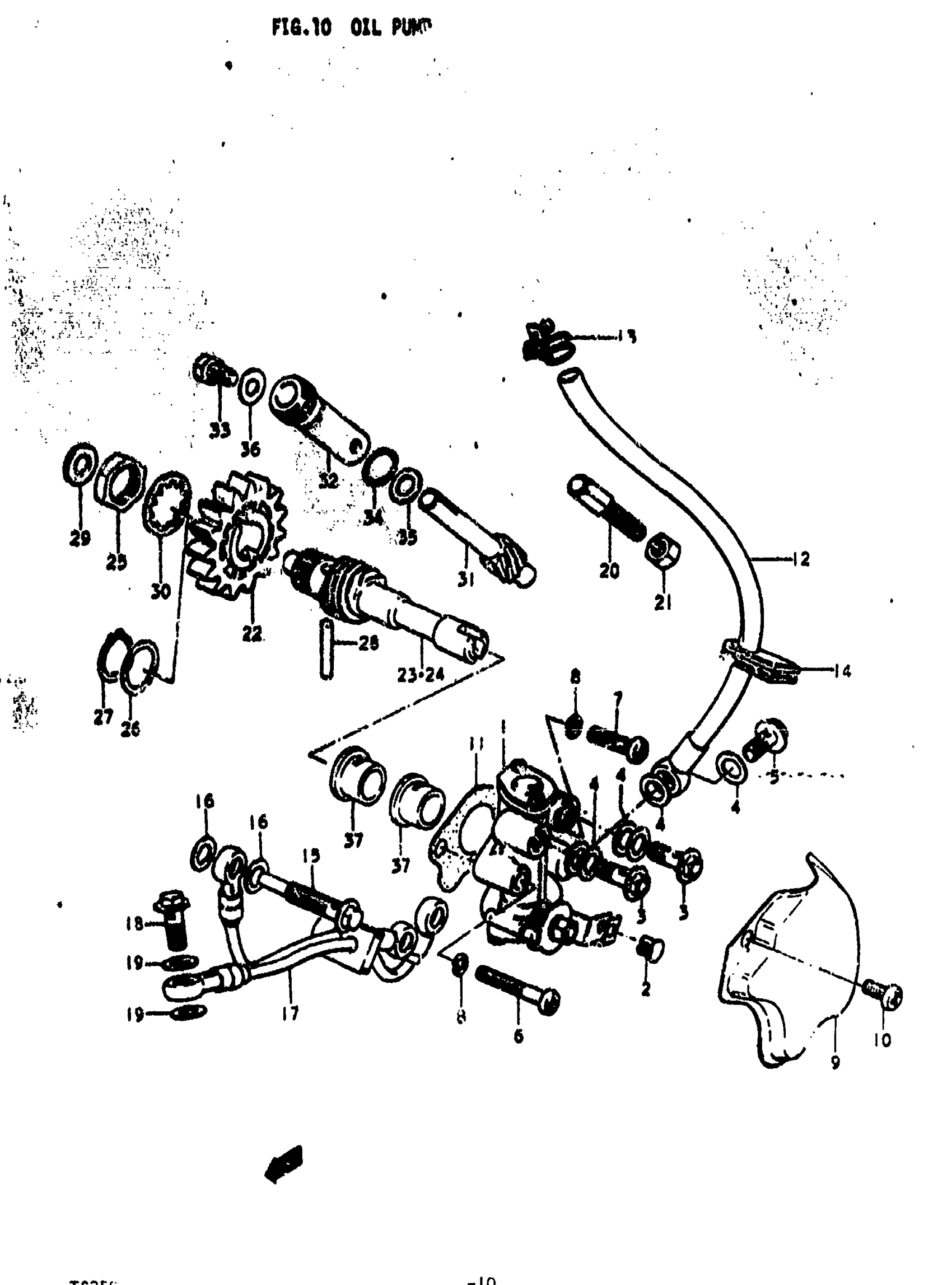

Suzuki TS250 (1976) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL | K,L,M

16100-30011

Unavailable

1

PUMP ASSY, OIL | A This part replaces 16100-30610.

16100-30520

Unavailable

2

TERMINAL, CABLE | FROM 16292-03110 This part replaces 16292-03111.

16292-03112

$5.05

3

UNION BOLT | 6x16

09360-06003

$3.76

4

GASKET | K,L,M; 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

4

GASKET | A; 6.5x13x1

09168-06004

$1.49

5

UNION BOLT | 6x16

09360-06003

$3.76

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

9

CAP, OIL PUMP INSPECTION

11385-30000

Unavailable

10

SCREW This part replaces 02112-06108.

02112-06107

$1.49

11

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

12

HOSE, OIL INLET

16810-30030

Unavailable

13

OIL HOSE CLAMP | FROM 09400-00107 This part replaces 09400-10301.

09400-10302

Unavailable

14

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

15

BOLT AND GASKET | 6x38 This part replaces 09360-08009.

11180-27820

Unavailable

16

GASKET | K,L,M; 6.2x10x1 TO 09168-06004

09168-06003

Unavailable

16

GASKET | A; 6.5x13x1

09168-06004

$1.49

17

HOSE, OIL OUTLET

16820-30030

Unavailable

18

UNION BOLT | 6x16

09360-06003

$3.76

19

GASKET | K,L,M; 6.2x10x1 TO 03.68-06004

09168-06003

Unavailable

19

GASKET | A; 6.5x13x1

09168-06004

$1.49

20

BOLT

09119-08014

$3.55

21

NUT This part replaces 08312-11088.

08310-00087

$2.13

22

GEAR, OIL PUMP DRIVE | NT:19

16321-30030

Unavailable

23

SHAFT, OIL PUMP DRIVE | K,L; NT:6 TO 16322-30000 USED WITH08211-14241 AND 08331-11149

16322-30000

Unavailable

24

SHAFT, OIL PUMP DRIVE | M,A; NT:6

16322-30001

Unavailable

25

NUT | K,L

09140-14012

Unavailable

26

WASHER | M,A; 14x24x1

08211-14241

Unavailable

27

CIRCLIP, SHIFT SHAFT | M,A This part replaces 08331-11149.

08331-3114A

$1.91

28

PIN

09261-04005

$1.67

29

THRUST WASHER

08221-08166

Unavailable

30

LOCK WASHER | K,L

08323-11149

Unavailable

31

GEAR, TACHO. DRIVEN (NT:9) | NT:9 This part replaces 26431-30000.

26431-30001

Unavailable

32

SLEEVE, TECHOMETER DRIVEN GEAR

26441-30000

Unavailable

33

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

34

O RING

09280-10001

$2.02

35

WASHER | 8x13.7x1

09160-08003

$2.23

36

WASHER This part replaces 08322-21068.

08322-01067

$2.13

37

BUSHING

09301-12001

Unavailable
