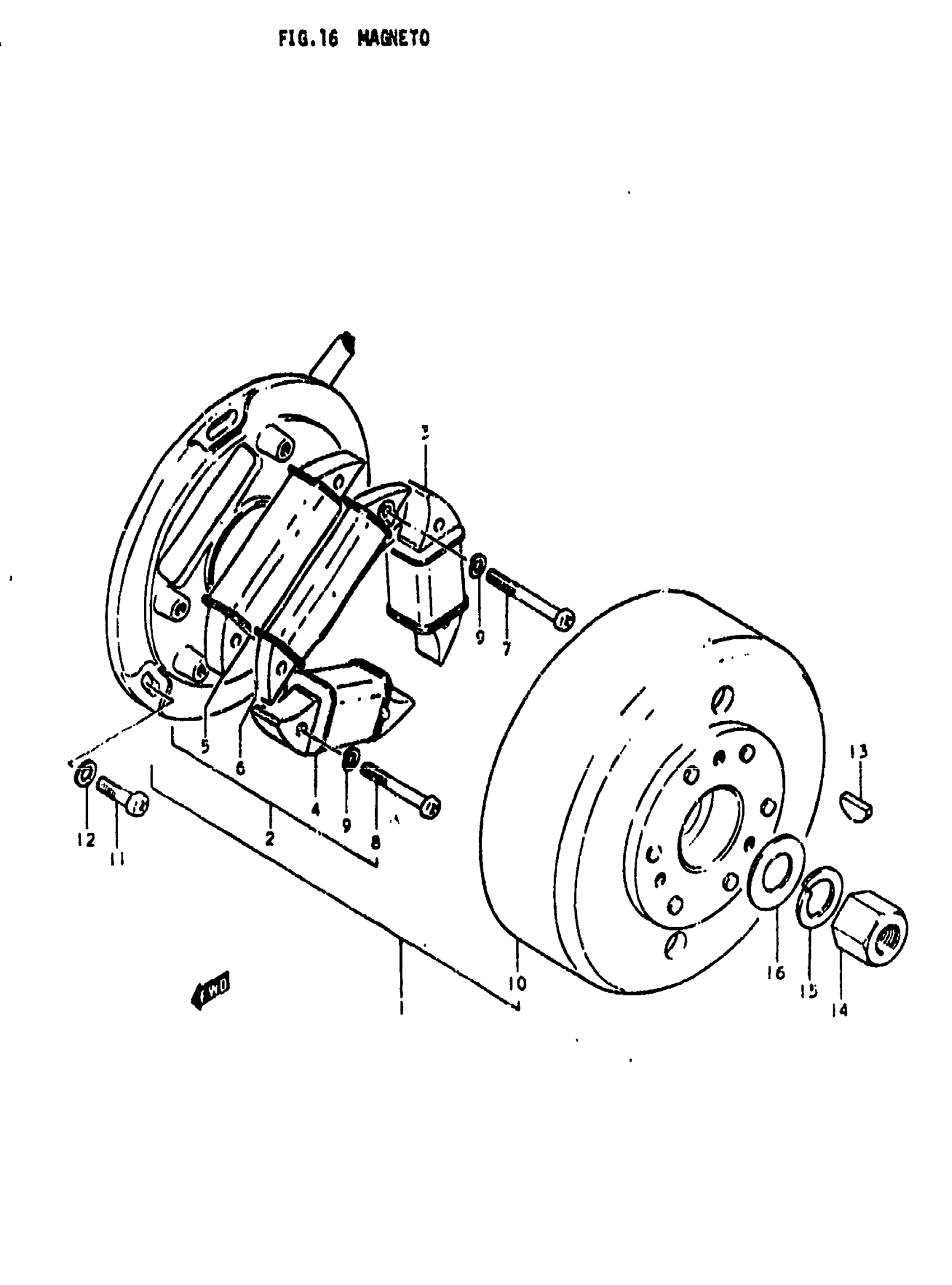

Suzuki TS250 (1976) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | K,L,M This part replaces 32100-30621.

32101-30621

Unavailable

1

STATOR ASSY | A; Includes Item(s) 2 - 10 This part replaces 32100-30625.

32101-30626

Unavailable

2

STATOR ASSY | K,L,M

32101-30621

Unavailable

2

STATOR ASSY | A This part replaces 32101-30624.

32101-30626

Unavailable

3

COIL, CHARGING | K,L,M

32120-29611

Unavailable

3

COIL, CHARGING | A

32120-29612

Unavailable

4

COIL, LIGHTING | K,L,M

32130-29611

Unavailable

4

COIL, CHARGING | A This part replaces 32130-29612.

32130-30620

Unavailable

5

COIL, PRIMARY This part replaces 32140-32020.

32140-32021

$152.07

6

COIL, PULSER

32150-32020

$130.87

7

SCREW | K,L,MA This part replaces 02111-05357.

02112-05357

$1.49

8

SCREW | K,L,M This part replaces 02112-05308.

02112-0530A

$2.05

8

SCREW | A This part replaces 02111-05207.

02112-05207

$1.97

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

ROTOR | K,L,M; FROM 32102-29611

32102-29612

Unavailable

10

ROTOR | A This part replaces 32102-30621.

32102-30626

Unavailable

11

SCREW | K,L,M This part replaces 02112-05168.

02112-05167

$1.97

11

SCREW | A

09139-05011

$2.38

12

WASHER | K,L,M This part replaces 08322-21058.

08322-01057

$2.13

13

KEY This part replaces 08341-31049.

09420-04008

$3.42

14

NUT

09140-14011

Unavailable

15

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

16

WASHER | 14x27x3

09160-14015

Unavailable
