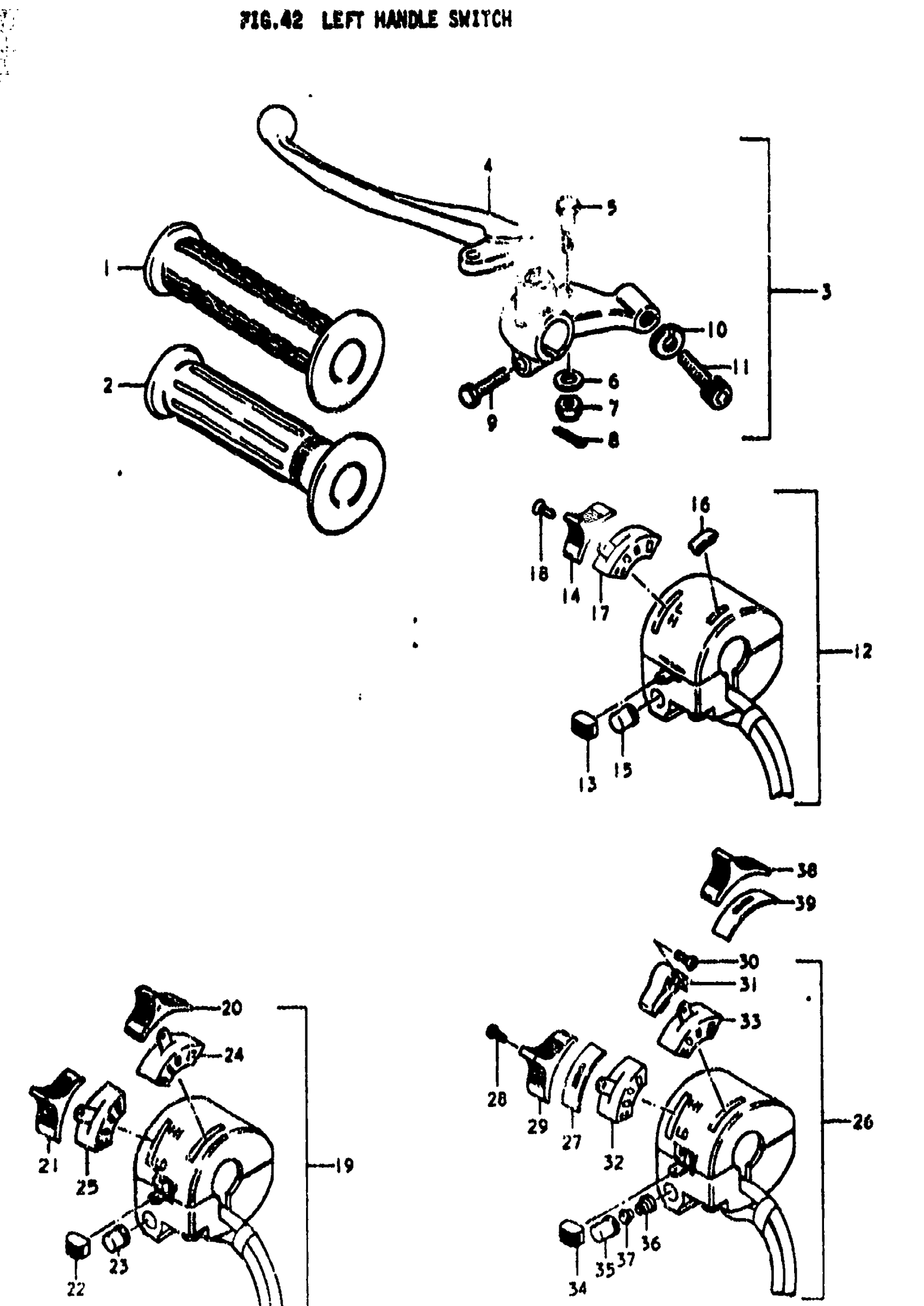

Suzuki TS250 (1976) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH | K,L,M

57211-15110

Unavailable

2

GRIP, LH | A

57211-28600

$16.32

3

LEVER ASSY, CLUTCH | K; TO 57500-18610

57500-18010

Unavailable

3

LEVER ASSY, CLUTCH | L; TO 57500-18012 USED WITH 56741-31700

57500-18610

Unavailable

3

LEVER ASSY, CLUTCH | M,A; FROM 57500-18012; Includes Item(s) 4 - 11 This part replaces 57500-18013.

57500-30501

Unavailable

4

LEVER, CLUTCH | FROM 57620-31010

57620-45010

Unavailable

5

BOLT This part replaces 57431-11010.

57431-11013

$6.31

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

NUT

57433-11010

$5.64

8

PIN This part replaces 04111-16158.

04111-1620A

$1.49

9

BOLT This part replaces 01112-06208.

01500-06207

$2.28

10

NUT

57442-11010

$2.79

11

ADJUSTER, CABLE

57441-11010

$5.62

12

SWITCH ASSY, HANDLE LH | K; FROM 57700-28610; Includes Item(s) 13 - 18

57700-28611

Unavailable

13

KNOB, SWITCH | K

57742-28050

Unavailable

14

KNOB, DIMMER SWITCH | K; FROM 57712-28050

57712-28051

Unavailable

15

BUTTON, HORN | K

57751-28050

Unavailable

16

CAP, HANDLE SWITCH | K

57715-28610

Unavailable

17

BLOCK, DIMMER SWITCH | K

57353-28050

Unavailable

18

SCREW | K This part replaces 02121-03068.

02122-03067

$1.80

19

SWITCH ASSY, HANDLE LH | L; TO 57700-28631

57700-28630

Unavailable

19

SWITCH ASSY, HANDLE LH | M; TO 57700-28632; Includes Item(s) 20 - 25

57700-28631

Unavailable

20

KNOB, LIGHTING SWITCH | L,M; FROM 57712-28050

57712-28051

Unavailable

21

KNOB, DIMMER SWITCH | L,M

57713-28050

Unavailable

22

KNOB, TURN SIGNAL SWITCH | L,M

57742-28050

Unavailable

23

BUTTON, HORN | L,M

57751-28050

Unavailable

24

BLOCK, LIGHTING SWITCH | L,M

57730-28630

Unavailable

25

BLOCK, DIMMER SWITCH | L; TO 57530-28051

57530-28050

Unavailable

25

BLOCK, DIMMER SWITCH | M

57530-28051

Unavailable

26

SWITCH ASSY, HANDLE LH | A; Includes Item(s) 27 - 37

37400-28660

Unavailable

27

PLATE, DIMMER SWITCH | A This part replaces 57719-28050.

37422-28450

Unavailable

28

SCREW | A This part replaces 03221-03088.

03221-0308B

$2.10

29

KNOB, DIMMER | A

57713-28050

Unavailable

30

SCREW, LIGHTING | A

03231-03108

Unavailable

31

KNOB, STOP | A

37414-28660

Unavailable

32

BLOCK, DIMMER SWITCH | A

57530-28051

Unavailable

33

BLOCK, LIGHTING SWITCH | A

57730-28631

Unavailable

34

KNOB, TURN SIGNAL | A

57742-28050

Unavailable

35

BUTTON, HORN | A

57751-28050

Unavailable

36

SPRING | A

57761-28050

Unavailable

37

PLATE | A

37522-28050

Unavailable

38

KNOB, LIGHTING SWITCH | A; OPT

57712-28052

Unavailable

39

NO DESCRIPTION AVAILABLE | A; OPT This part replaces 57714-28051.

37412-28450

Unavailable
