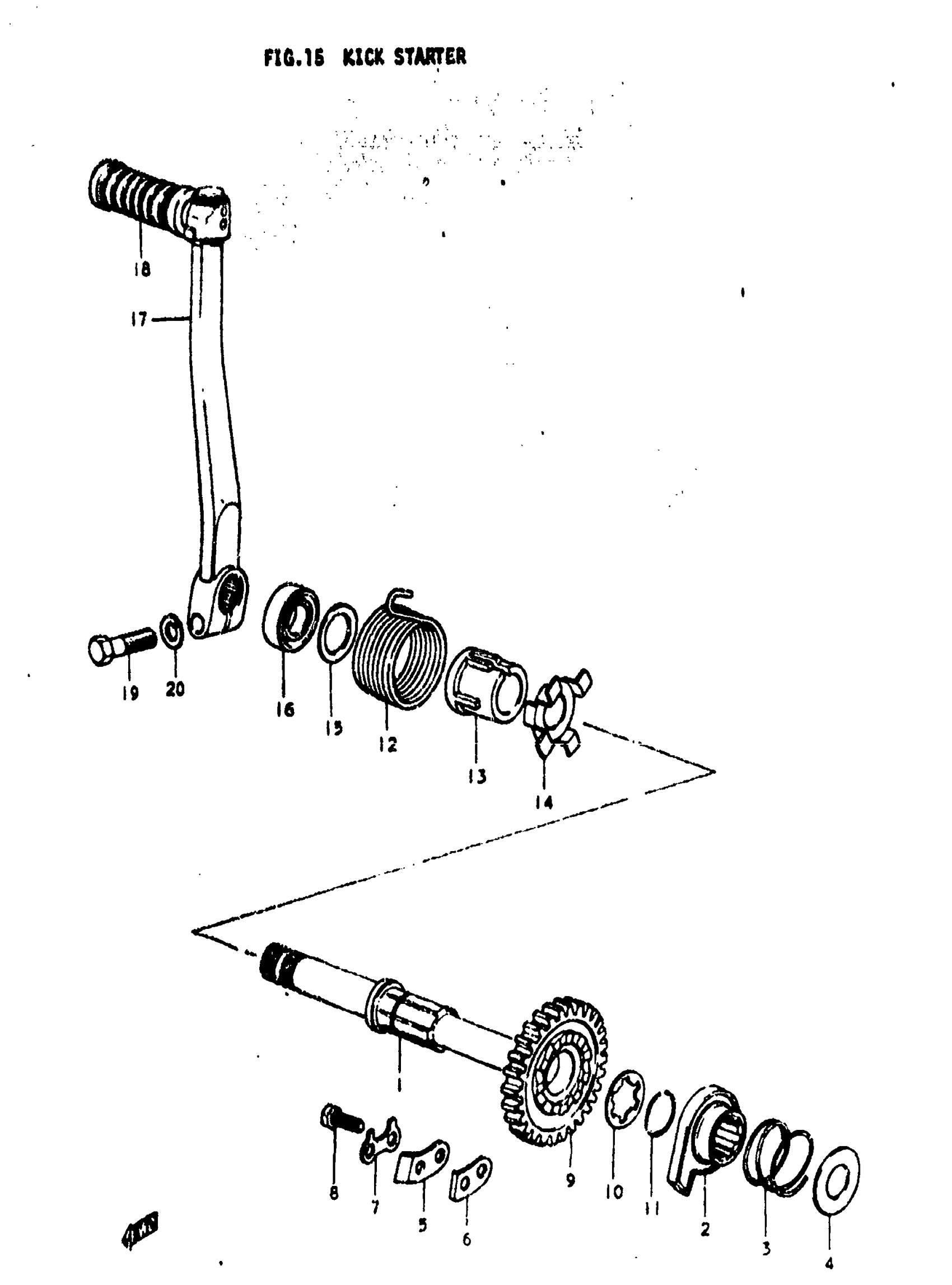

Suzuki TS250 (1976) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-30000

Unavailable

2

STARTER, KICK This part replaces 26231-30000.

26231-22A10

$63.88

3

SPRING

09440-32002

$2.27

4

THRUST WASHER | 17x34x1.5

08211-17342

$2.72

5

GUIDE, KICK STARTER

26232-30000

Unavailable

6

STOPPER, KICK STARTER

26233-30000

Unavailable

7

WASHER

09169-06003

$1.78

8

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

9

GEAR, DRIVE | NT:27

26241-30001

Unavailable

10

WASHER | 18.5x29x1

09167-22007

Unavailable

11

CIRCLIP

09380-22003

$1.92

12

SPRING

09448-47002

Unavailable

13

GUIDE, SPRING

26221-30000

Unavailable

14

HOLDER, SPRING

26222-30000

Unavailable

15

WASHER

08212-20361

Unavailable

16

OIL SEAL (20X37X7)

09283-20025

$5.64

17

LEVER ASSY, KICK STARTER | FROM 26300-30000; Includes Item(s) 18

26300-30001

Unavailable

18

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

19

BOLT This part replaces 01122-10308.

01500-1030A

$3.16

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
