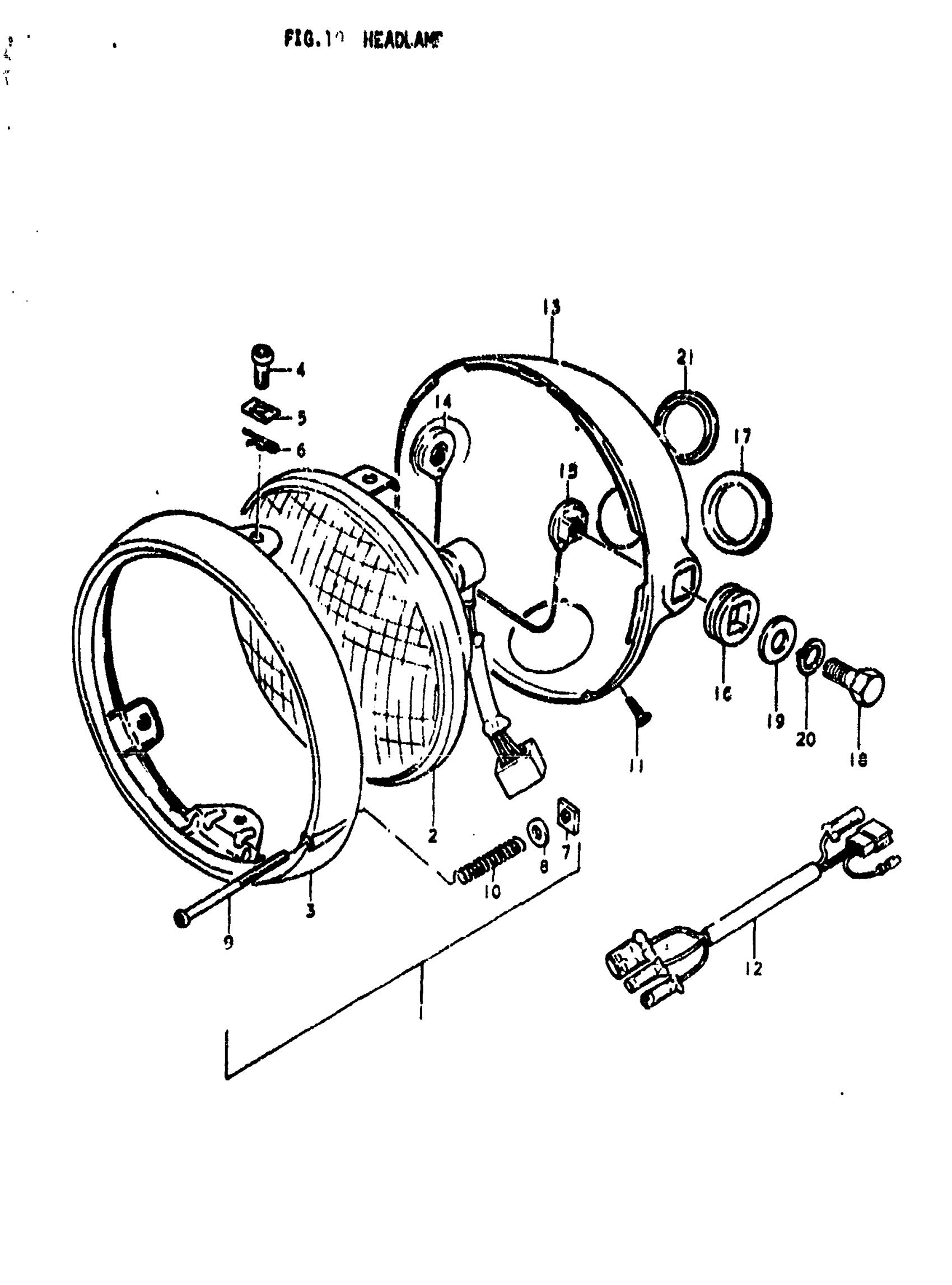

Suzuki TS250 (1976) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | K,L,M

35100-27630

Unavailable

1

HEADLAMP ASSY | A; Includes Item(s) 2 - 10

35100-27631

Unavailable

2

UNIT | K,L,M; 6V, 25/25 W

35121-27630

Unavailable

2

UNIT | A; 6V, 30/30W

35121-27631

Unavailable

3

RIM

35111-27630

Unavailable

4

SCREW | K,L,M

35136-19610

Unavailable

4

SCREW | A This part replaces 02111-05087.

02112-05087

$1.49

5

NUT This part replaces 35135-12610.

35155-48510

$2.28

6

CLIP | K,L,M

35137-27620

Unavailable

7

NUT This part replaces 35155-27630.

35135-45600

$3.65

8

WASHER | K,L,M This part replaces 08322-21048.

08322-01047

$1.86

8

WASHER | A

35157-27630

$3.25

9

SCREW This part replaces 35151-27630.

35151-45230

Unavailable

10

SPRING

35154-27630

Unavailable

11

SCREW This part replaces 02231-05128.

02122-05127

$1.93

12

LEAD WIRE, HEADLAMP | K,L

36852-30000

Unavailable

13

HOUSING, HEADLAMP | K,L; CHROME-PLATED

51810-30000

Unavailable

13

NO DESCRIPTION AVAILABLE | M This part replaces 51810-27300-126.

51810-27300-737

Unavailable

13

NO DESCRIPTION AVAILABLE | A This part replaces 51810-27300-291.

51810-27300-737

Unavailable

14

SPACER, RH | K; TO 51821-27301 USED WITH 51827-2

51821-27301

Unavailable

14

SPACER, HEADLAMP HOUSING RH | 7301

51821-27300

Unavailable

14

SPACER, RH | L; TO 51820-36200 USED WITH 51826-25300M,A; TO 51820-36200 USED WITH 51826-25300

51821-27301

Unavailable

15

SPACER, LH | K; TO 51822-27301 USED WITH 51827-27301

51822-27300

Unavailable

15

SPACER, LH | L; TO 51860-36200 USED WITH 51828-25300

51822-27301

Unavailable

16

CUSHION | K; TO 51827-27301 USED WITH 51821-27301 OR 51822-27301

51827-27300

Unavailable

16

CUSHION,HEADLAM | L,M,A This part replaces 51827-27301.

51827-27303

$3.66

17

GROMMET | K,L; FROM 51845-31030M,A; FROM 51845-31030

51845-31031

$4.52

18

BOLT, REAR | K,L This part replaces 01122-08208.

01500-08207

$2.53

18

BOLT | M,A This part replaces 01221-08207.

01204-08207

$2.30

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER | M,A This part replaces 08321-21088.

08321-01087

$2.13

21

CAP | K

09250-40001

Unavailable
