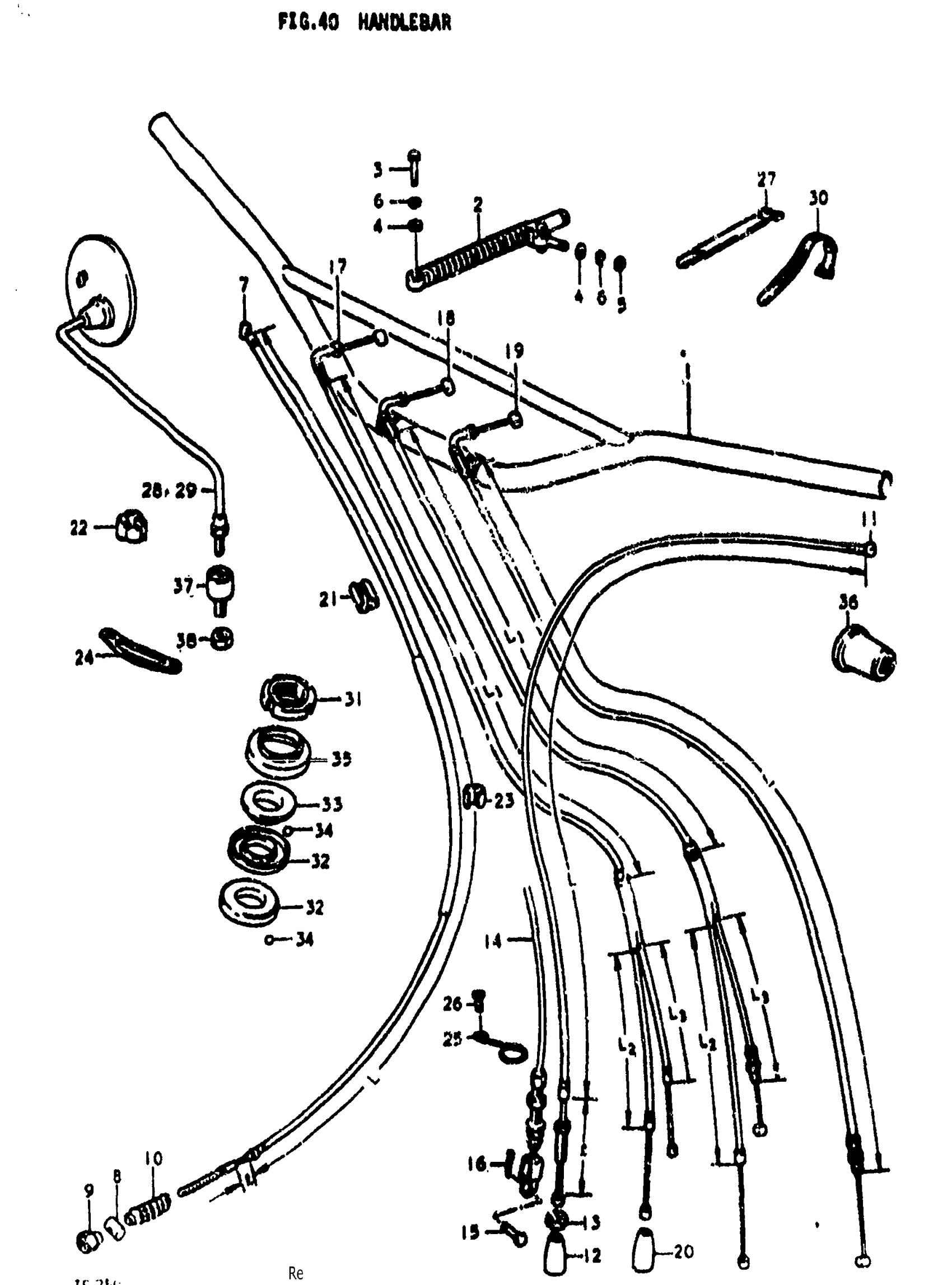

Suzuki TS250 (1976) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | K,L; TO 56110-32200

56110-30000

Unavailable

1

HANDLEBAR | M

56110-32200

Unavailable

1

HANDLEBAR | A; FROM 56110-32200 This part replaces 56110-32201.

56110-28001

Unavailable

2

DAMPER ASSY, HANDLEBAR | K,L

51700-16400

Unavailable

3

BOLT | K,L This part replaces 01122-08308.

01500-08307

$3.04

4

WASHER | K,L This part replaces 08322-21088.

08322-01087

$2.13

5

NUT | K,L This part replaces 08312-11088.

08310-00087

$2.13

6

LOCK WASHER | K,L This part replaces 08321-21058.

08321-0105A

$1.84

7

CABLE, FRONT BRAKE | L:1200, L:78 FROM 58110-30001

58110-30002

Unavailable

8

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

9

.NUT This part replaces 09150-06001.

09150-06010

$3.10

10

DUST SEAL

09287-05001

Unavailable

11

CABLE ASSY, CLUTCH | K,L,M; L:1110, L:106 FROM 58200-31000; Includes Item(s) 12 - 13

58200-31001

Unavailable

12

BOOT | K,L,M

09289-10001

Unavailable

13

NUT | K,L,M This part replaces 08312-11088.

08310-00087

$2.13

14

CABLE,CLUTCH | A; L:980, L:136.5 FROM 58200-32101 This part replaces 58200-32102.

58200-32103

Unavailable

15

PIN | A

09200-06011

Unavailable

16

.COTTER PIN | A This part replaces 04111-20158.

04111-2015A

$1.49

17

CABLE,THROTTLE | K,L,M; L1:845, L2:266 L3:463 This part replaces 58300-30000.

58300-30002

Unavailable

18

CABLE,THROTTLE | A; L1:730, L2:410 L3:210 This part replaces 58300-30301.

58300-30303

Unavailable

19

CABLE,THROTTLE | A; L:990 This part replaces 58300-30601.

58300-30603

Unavailable

20

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

21

CLIP | K,L,M

09408-00001

Unavailable

22

CLIP | A

09408-00014

Unavailable

23

CLIP

09408-00002

$2.30

24

GUIDE, CABLE | K

58621-28000

Unavailable

25

CLAMP, CLUTCH CABLE | A

09403-13401

$2.30

26

SCREW | A This part replaces 02111-06128.

02112-06127

$1.84

27

CLAMP | A; L:140 This part replaces 09407-14301.

09407-18302

$2.28

28

MIRROR ASSY,RR | K,L This part replaces 56500-19010.

56500-19013

Unavailable

28

MIRROR ASSY,RR | M,A This part replaces 56500-31011.

56500-31014

$48.02

29

MIRROR ASSY,RR | K,L This part replaces 56600-19010.

56600-19013

Unavailable

29

MIRROR ASSY,RR | M,A This part replaces 56600-31011.

56600-31014

$48.02

30

CLAMP

09407-12402

$3.04

31

NUT, STEERING STEM

51631-28000

$17.37

32

INNER RACE, STEERING

51611-33002

$13.81

33

OUTER RACE, STEERING

51621-30001

Unavailable

34

STEEL BALL

06111-08003

$1.49

35

DUST SEAL, STEERING

51643-30000

Unavailable

36

CAP, FRONT TURN SIGNAL ROSS | K

35698-30600

Unavailable

37

CUSHION, REAR VIEW MIRROR | K,L

56700-32000

Unavailable

37

CUSHION, REAR VIEW MIRROR | M,A; FROM 56700-31000 This part replaces 56700-31001.

56700-45400

$21.90

38

NUT | K,L This part replaces 08312-32088.

08310-00087

$2.13

38

NUT | M,A This part replaces 08312-32108.

08310-00107

$2.19
