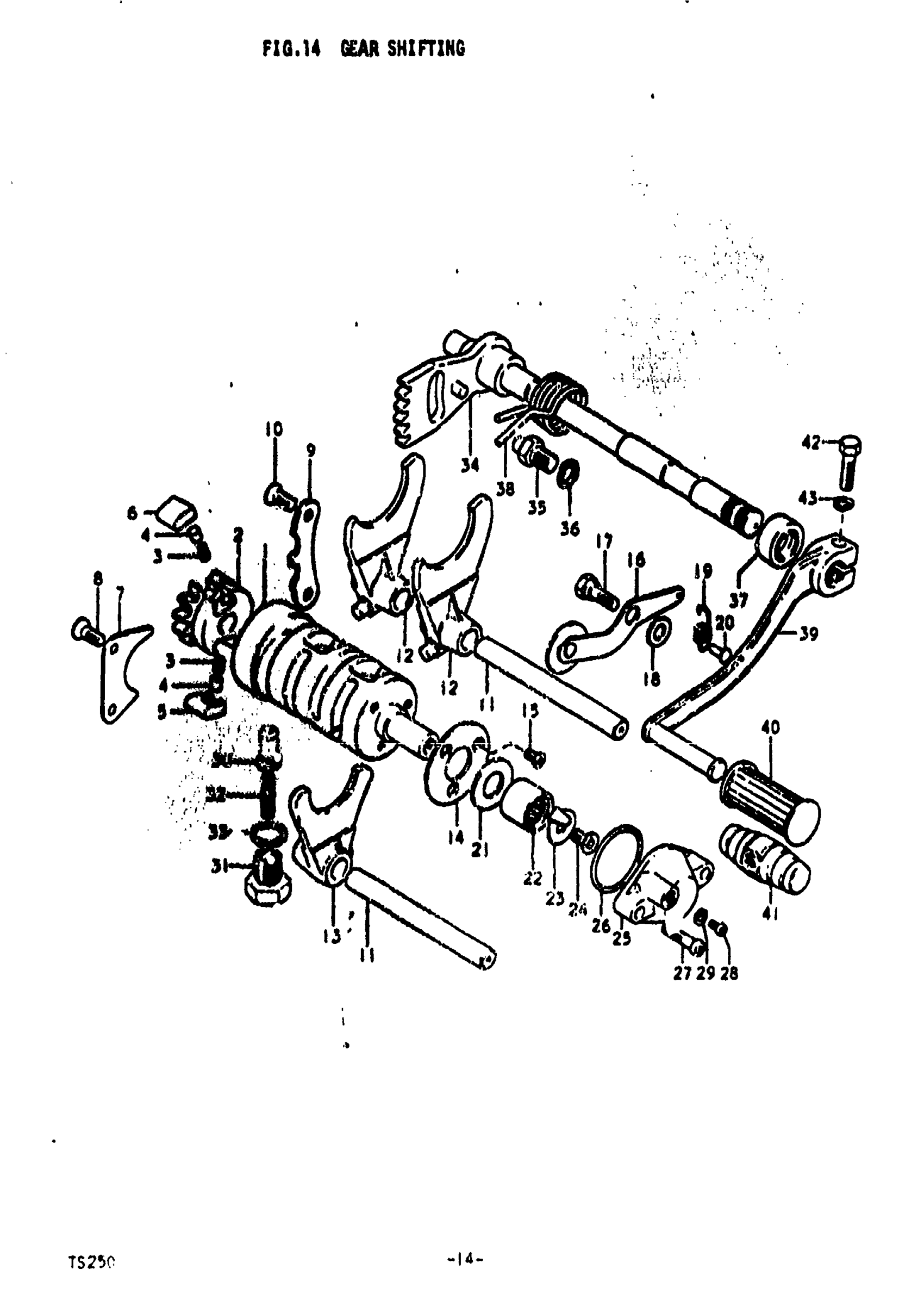

Suzuki TS250 (1976) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING

25310-30001

Unavailable

2

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

3

SPRING

09440-04003

$1.54

4

PIN

09261-05003

$1.54

5

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

6

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

7

LIFTER, GR SHIFT POLE This part replaces 25331-30000.

25331-30001

Unavailable

8

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

9

GUIDE, GEAR SHIFTING CAM

25341-11000

Unavailable

10

SCREW This part replaces 02122-06108.

02122-0610A

$1.68

11

SHAFT, GEAR SHIFT FORK NO.2 This part replaces 25411-30000.

25411-14311

$23.07

12

FORK, GEAR SHIFTING NO.1

25211-30001

Unavailable

13

FORK, GEAR SHIFTING NO.2

25231-30000

Unavailable

14

PLATE, SHIFTING CAM STOPPER | FROM 25381-20000

25381-20001

Unavailable

15

.SCREW This part replaces 02121-04127.

02122-0412A

$1.93

16

STOPPER, GEAR SHIFTING CAR | FROM 25350-30000

25350-30001

Unavailable

17

BOLT

09111-06003

Unavailable

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

SPRING

09443-10007

Unavailable

20

PIN This part replaces 09220-04001.

09223-04001

$1.68

21

THRUST WASHER | 12x25x2

08211-12253

Unavailable

22

BEARING | 12x18x20

09263-12009

Unavailable

23

CONTACT, GEAR SHIFTING SWITCH | FROM 37711-05100

37711-05101

$4.21

24

SCREW This part replaces 02122-06128.

02122-06127

$1.84

25

BODY, GEAR SHIFTING SWITCH

37721-15002

Unavailable

26

O RING

09280-28002

$2.08

27

SCREW This part replaces 02111-05207.

02112-05207

$1.97

28

SCREW This part replaces 02111-03048.

02112-03047

$2.15

29

WASHER This part replaces 08322-21038.

08322-01037

$1.93

30

STOPPER, GEAR SHIFT CAM NO.2 | FROM 25351-30000

25351-30010

$11.95

31

HOLDER, CAM STOPPER SPRING

25354-30000

$9.17

32

SPRING

09440-06014

Unavailable

33

GASKET | 15.7x19.5x2

09168-14004

$1.83

34

NO DESCRIPTION AVAILABLE This part replaces 25510-30000.

25510-30X00

Unavailable

35

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

36

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

37

OIL SEAL (12X22X9) | 12X22X9 This part replaces 09285-12002.

09285-12006

$6.32

38

SPRING

09444-26001

$5.88

39

LEVER ASSY,GEAR | Includes Item(s) 40 - 41 This part replaces 25600-30001.

25600-30502

$33.29

40

.RUBBER,GEAR SHIFT PEDAL | K,L This part replaces 25652-03201.

25652-16510

$3.74

41

.RUBBER,GEAR SHIFT PEDAL | L,M,A This part replaces 25652-16500.

25652-16510

$3.74

42

BOLT This part replaces 01112-06208.

01500-06207

$2.28

43

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
