1976 Suzuki TS250 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1976 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

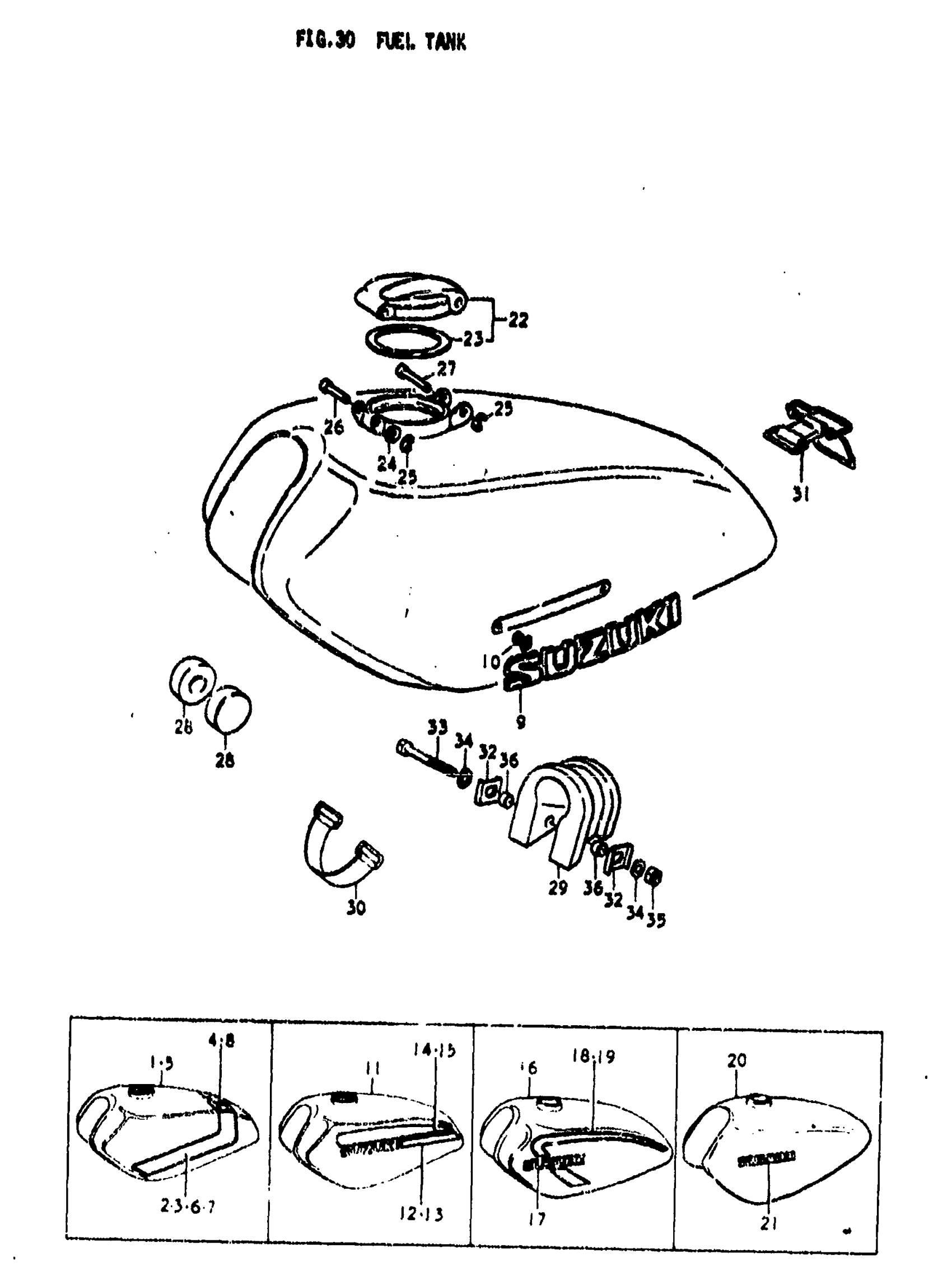

1976 Suzuki TS250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | K; TO 44100-30870-709; Includes Item(s) 2 - 4

44110-30610-709

—
Out of stock

2

NO DESCRIPTION AVAILABLE | K; TO 65100-30830-719 This part replaces 68115-30600-719.

68100-30830-719

1
Out of stock

3

NO DESCRIPTION AVAILABLE | K; TO 65100-30830-719 This part replaces 68125-30600-719.

68100-30830-719

1
Out of stock

4

EMBLEM, CENTER | K

68118-30000-719

—
Out of stock

5

TANK, FUEL | K; TO 44100-30880-714; Includes Item(s) 6 - 8

44110-30610-714

—
Out of stock

6

NO DESCRIPTION AVAILABLE | K; TO 68100-30830-722 This part replaces 68115-30600-722.

68100-30830-722

1
Out of stock

7

NO DESCRIPTION AVAILABLE | K; TO 68100-30830-722 This part replaces 68125-30600-722.

68100-30830-722

1
Out of stock

8

EMBLEM, CENTER | K

68118-30000-722

—
Out of stock

9

EMBLEM | K

68111-28600

2
Out of stock

10

NUT | K

09148-04005

4
Out of stock

11

TANK, FUEL | L; Includes Item(s) 12 - 15

44110-30300-293

1
Out of stock

12

EMBLEM,RH | L This part replaces 68111-30300-742.

68111-28400-742

1
Out of stock

13

EMBLEM,LH | L This part replaces 68121-30300-742.

68121-28400-742

1
Out of stock

14

NO DESCRIPTION AVAILABLE | L; TO 68100-30840-002 This part replaces 68115-30300-002.

68100-30840-002

—
Out of stock

15

NO DESCRIPTION AVAILABLE | L; TO 68100-30840-002 This part replaces 68125-30300-002.

68100-30840-002

—
Out of stock

16

TANK, FUEL | M; TO 44110-30641-737; Includes Item(s) 17 - 19

44110-30630-60B

—
Out of stock

17

NO DESCRIPTION AVAILABLE | M This part replaces 68111-26610-019.

68111-27610-019

2
Out of stock

18

NO DESCRIPTION AVAILABLE | M; TO 68100-30850-996 This part replaces 68115-30610-996.

68100-30850-996

1
Out of stock

19

NO DESCRIPTION AVAILABLE | M; TO 68100-30850-996 This part replaces 68125-30610-996.

68100-30850-996

1
Out of stock

20

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 21 This part replaces 44110-30641-293.

44110-30641-737

1
Out of stock

21

EMBLEM | A; FROM 68111-41001-538

68111-25610-538

2
Out of stock

22

CAP ASSY,FUEL T | Includes Item(s) 23 - 27 This part replaces 44200-33011.

44200-33012

1
Out of stock

23

GASKET This part replaces 44248-33011.

44248-33012

1
Out of stock

24

WASHER

44238-33010

1
Out of stock

25

E RING

09383-02003

2
Out of stock

26

PIN, CAP FRONT

44239-33010

1
Out of stock

27

PIN, CAP LOCK

44233-33010

1
Out of stock

28

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

29

CUSHION, FUEL TANK REAR

44541-30000

1
Out of stock

30

BAND

09462-00064

1
Out of stock

31

BAND, FUEL TANK FRONT | M,A; OPT

09462-00007

1
Out of stock

32

PLATE, REAR CUSHION

44549-30000

2
Out of stock

33

BOLT This part replaces 01112-06508.

01500-06507

1
Out of stock

34

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

35

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

36

SPACER | 6.1x8x5.2 This part replaces 09180-06032.

09180-06246

2
Out of stock
