1976 Suzuki TS250 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1976 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

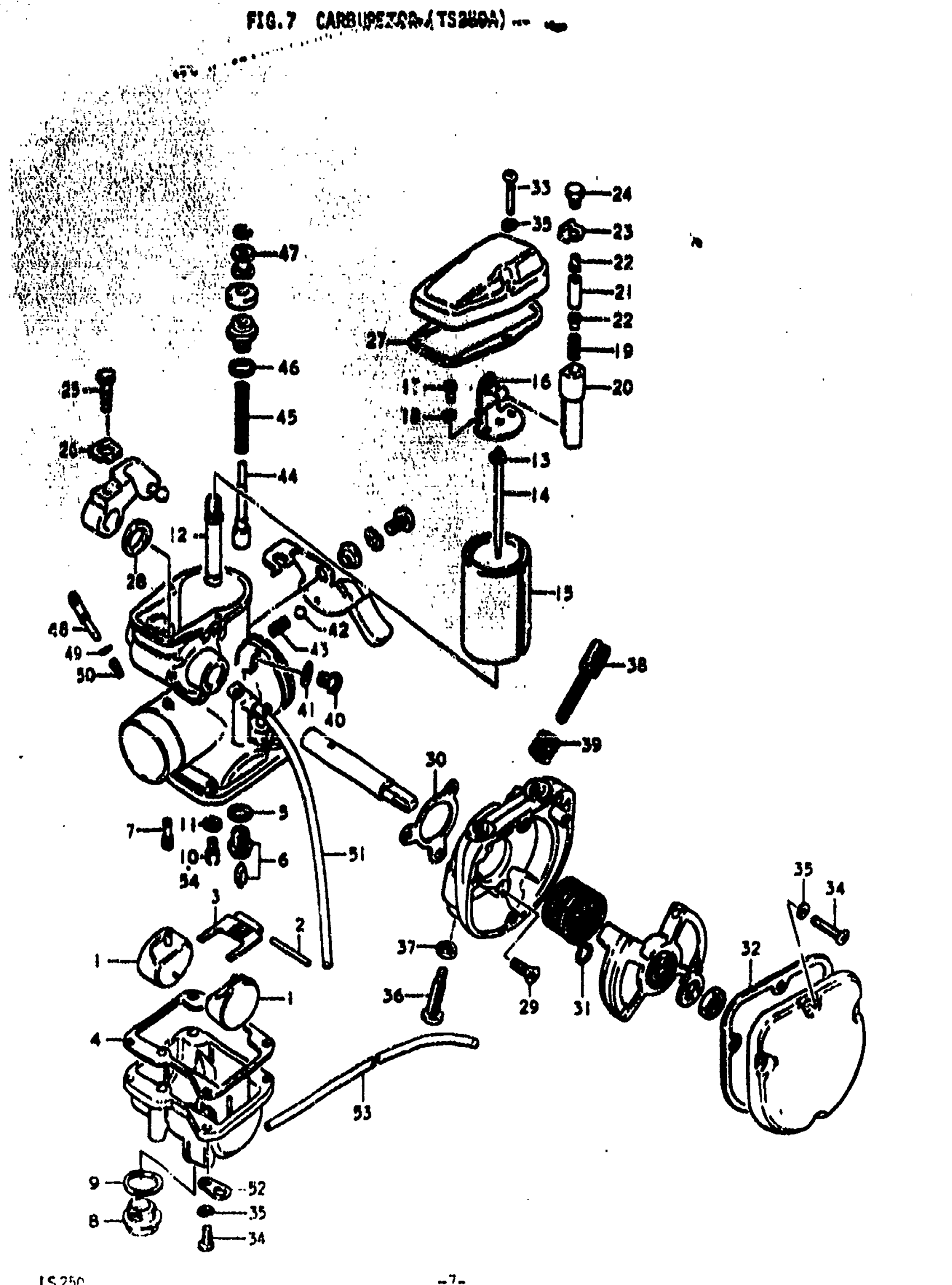

1976 Suzuki TS250 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY | Includes Item(s) 1 - 34

13200-30651

—
Out of stock

1

FLOAT

13252-30650

2
Out of stock

2

.PIN, FLOAT

13254-01010

1
Out of stock

3

ARM, FLOAT

13253-30650

1
Out of stock

4

GASKET

13251-30650

1
Out of stock

5

GASKET, VALVE | FROM 13392-18110

13392-58600

1
Out of stock

6

VALVE ASSY, NEEDLE

13370-30651

1
Out of stock

7

JET, PILOT (30) | #30 This part replaces 09492-30003.

09492-30006

1
Out of stock

8

PLUG, DRAIN

13247-30650

1
Out of stock

9

GASKET

13249-28310

1
Out of stock

10

JET, MAIN | #160

09491-32002

1
Out of stock

11

WASHER

13382-03110

1
Out of stock

12

JET, NEEDLE | 0-4

09494-00117

1
Out of stock

13

CLIP

13394-10010

1
Out of stock

14

NEEDLE, JET | 5CN3-2

13383-18620

1
Out of stock

15

VALVE, PISTON | CA:2.5

13551-30650

1
Out of stock

16

BRACKET

13398-30650

1
Out of stock

17

SCREW This part replaces 02111-03067.

02112-0306B

2
Out of stock

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

19

SPRING

13543-43010

1
Out of stock

20

CONNECTOR

13545-43010

—
Out of stock

21

PIN

13546-30650

1
Out of stock

22

PIN

13544-43010

2
Out of stock

23

PLATE

13547-43010

1
Out of stock

24

SCREW

13548-30650

—
Out of stock

25

BOLT

13613-30650

1
Out of stock

26

PLATE

13576-30650

1
Out of stock

27

GASKET

13266-30650

1
Out of stock

28

RING

13574-30650

1
Out of stock

29

SCREW

02121-05258

3
Out of stock

30

GASKET

13632-30650

1
Out of stock

31

SPRING

13573-30650

1
Out of stock

32

GASKET

13631-30650

1
Out of stock

33

SCREW

02111-04258

—
Out of stock

34

SCREW This part replaces 02111-04168.

02112-0416A

8
Out of stock

35

LOCK WASHER | Includes Item(s) 36 - 53 This part replaces 08321-21048.

08321-0104A

10
Out of stock

36

ADJUSTER, THROTTLE

13605-30650

1
Out of stock

37

.NUT This part replaces 08311-31068.

08310-00067

1
Out of stock

38

ADJUSTER, THROTTLE

13267-30650

1
Out of stock

39

SPRING

13268-33110

1
Out of stock

40

PLUG | FROM 13664-31010

13664-18654

1
Out of stock

41

WASHER

13663-31010

1
Out of stock

42

BALL

13435-33110

1
Out of stock

43

SPRING

13434-30650

1
Out of stock

44

VALVE, STARTER

13411-33110

1
Out of stock

45

SPRING

13417-18630

1
Out of stock

46

O RING This part replaces 13295-15010.

09280-08014

1
Out of stock

47

BUSH

13424-33110

1
Out of stock

48

SCREW, AIR PILOT | FROM 13269-31011

13269-15011

1
Out of stock

49

O RING

13295-33010

1
Out of stock

50

SPRING

13268-35010

1
Out of stock

51

HOSE This part replaces 13684-28010.

13684-40A00

1
Out of stock

52

PLATE

13693-30650

1
Out of stock

53

HOSE This part replaces 13684-30650.

13684-40A00

1
Out of stock

54

JET, MAIN | #130 OPT

09491-26003

1
Out of stock

54

JET,MAIN #135 | #135 OPT This part replaces 09491-27005.

09491-27015

1
Out of stock

54

JET, MAIN | #145 OPT

09491-29002

1
Out of stock

54

JET,MAIN,150 | #150 OPT This part replaces 09491-30003.

09491-30017

1
Out of stock

54

JET, MAIN | #170 OPT

09491-34002

1
Out of stock

54

JET, MAIN (180) | #180 OPT This part replaces 09491-36003.

09491-36006

1
Out of stock

54

JET, MAIN (190) | #190 OPT This part replaces 09491-38003.

09491-38009

1
Out of stock
