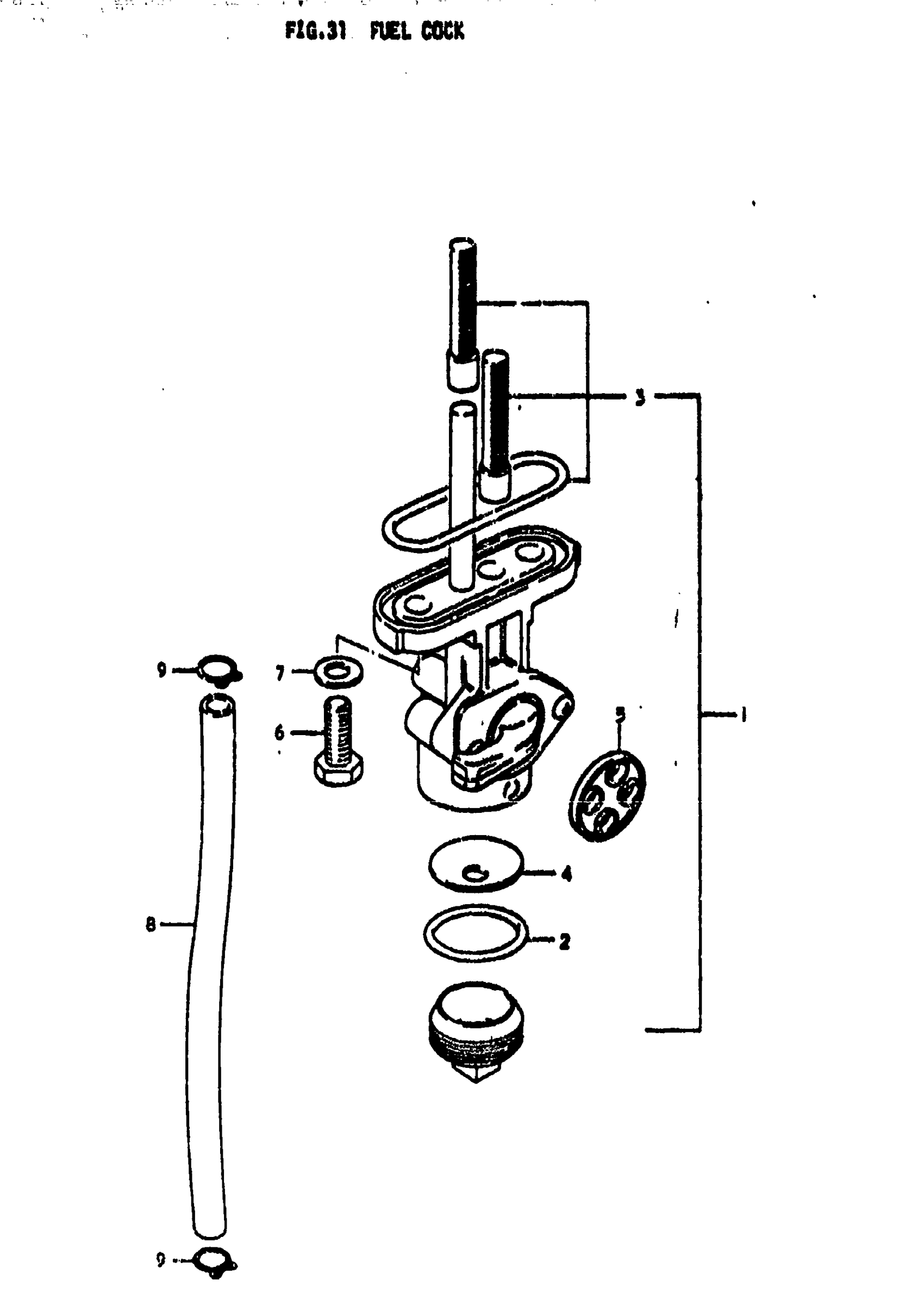

Suzuki TS250 (1976) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY FUEL | K,L; TO 44300-28071 This part replaces 44300-28070.

44300-28604

Unavailable

1

COCK ASSY FUEL | M,A; Includes Item(s) 2 - 5 This part replaces 44300-28071.

44300-28604

Unavailable

2

O-RING This part replaces 44346-28070.

44346-28071

$2.40

3

FILTER SET This part replaces 44300-28817.

44300-28818

$10.50

4

CLEANER

44344-28070

Unavailable

5

GASKET,LEVER | M,A This part replaces 44341-28070.

44341-28071

$2.92

6

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

7

GASKET (5.8X13X1.2) | 6.2x11x1 This part replaces 09168-06010.

09168-06023

$2.35

8

HOSE,5X10X600 | 5x8.2x220 This part replaces 09343-05031.

44421-13ER0

$10.06

9

CLIP

09401-08401

$1.54
