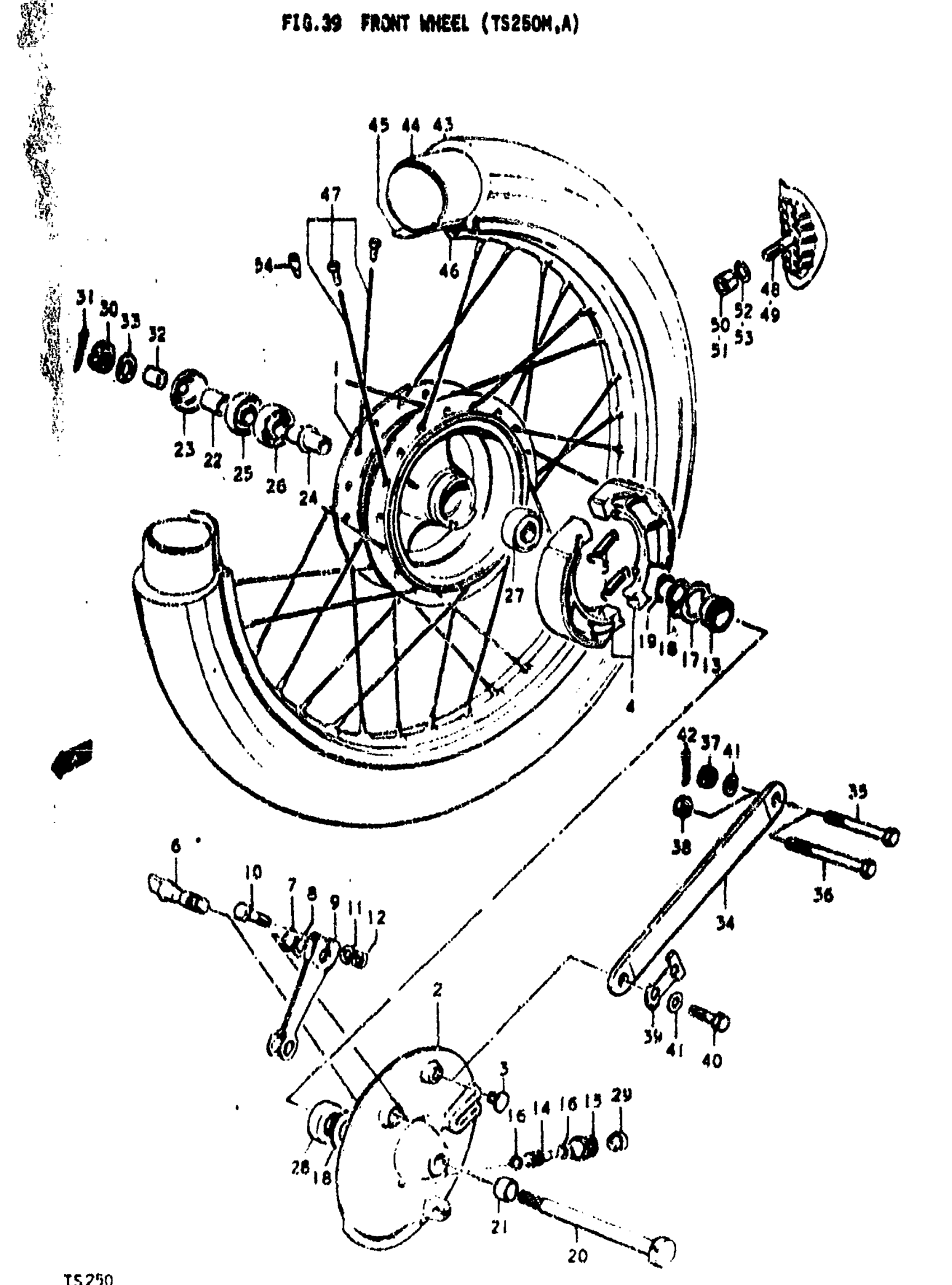

Suzuki TS250 (1976) FRONT WHEEL (TS250M Diagram

#

Description
Price

1

HUB, WHEEL

54110-30000

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 This part replaces 54200-30830.

54210-30003

Unavailable

3

CAP | OPT

09250-08005

$2.45

4

SHOE SET, REAR BRAKE This part replaces 54410-08002.

64400-02830

$55.17

5

SPRING, BRAKE SHOE

55420-30000

$4.48

6

CAM, REAR BRAKE This part replaces 54440-08001.

54440-08004

$27.62

7

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

8

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

9

NO DESCRIPTION AVAILABLE This part replaces 54451-30000.

54451-30001

Unavailable

10

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

.NUT This part replaces 08311-11068.

08310-00067

$2.13

13

GEAR, SPEEDOMETER (NT:24) | NT:24 This part replaces 54611-30301.

54611-30302

Unavailable

14

PINION, SPEEDOMETER | NT:8

54621-30300

Unavailable

15

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

16

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$1.87

17

DRIVER This part replaces 54660-11030.

54660-11031

$12.67

18

THRUST WASHER | 22.5x27x1

09160-22001

$2.47

19

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.48

20

AXLE,FRONT This part replaces 54711-33002.

54711-3300V

Unavailable

21

SPACER, LH

09180-15037

Unavailable

22

SPACER | 15x22x22.4

09180-15018

Unavailable

23

COVER, DUST SEAL

54892-33000

Unavailable

24

SPACER

54730-08100

Unavailable

25

OIL SEAL

09284-22001

Unavailable

26

BEARING

08113-60020

$16.01

27

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

28

SEAL,OIL(26X38X | 26x38x6 This part replaces 09285-26001.

09285-26005

Unavailable

29

OIL SEAL | 4.8x10x4

09289-06001

$4.58

30

NUT This part replaces 08314-31128.

08314-3112A

$2.41

31

PIN This part replaces 04111-30308.

04111-3030A

$1.49

32

SPACER

09180-15035

Unavailable

33

WASHER This part replaces 08322-21128.

08322-01127

$1.84

34

LINK, FRONT FORQUE

54311-30700

Unavailable

35

BOLT | M

09101-08008

Unavailable

36

BOLT | A; 8x65

09100-08086

Unavailable

37

NUT | M This part replaces 08314-41088.

08314-4008B

$3.03

38

NUT | A This part replaces 08319-11088.

08319-2108A

$2.12

39

WASHER

53312-16501

Unavailable

40

BOLT | 8x19.5

09100-08013

Unavailable

41

WASHER | MA This part replaces 08322-11088.

08322-01087

$2.13

42

.COTTER PIN | M This part replaces 04111-20158.

04111-2015A

$1.49

43

TIRE, FRONT | 3.00-21

55100-30600

Unavailable

44

TIRE, FRONT | 3.00-21 This part replaces 55200-16510.

55200-16511

$36.73

45

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

$3.83

46

RIM, WHEEL | M; 1.60A-21

55311-30700

Unavailable

46

RIM, WHEEL | A; 1.60A-21 TAKASAGO

55311-30600

Unavailable

46

RIM, WHEEL | A; 1.60A-21 AKRONT TO 55311-30600 USED WITH 55300-30809 This part replaces 55311-30610.

55311-30600

Unavailable

47

SPOKE SET | TAKASAGO

55300-30809

Unavailable

47

SPOKE SET | A; AKRONT

55300-30850

Unavailable

48

STOPPER, BEAD | M; 1.858 TO 65270-30001 This part replaces 65270-30000.

65270-43D00

$58.75

49

STOPPER, BEAD | A; 1.85B

65270-28600

$54.75

50

NUT | M

09159-08016

Unavailable

51

NUT | A This part replaces 08312-11088.

08310-00087

$2.13

52

WASHER | M This part replaces 08322-21086.

08322-0108A

$1.92

53

WASHER | A This part replaces 08322-11088.

08322-01087

$2.13

54

BALANCER, WHEEL | MA

55411-30000

Unavailable
