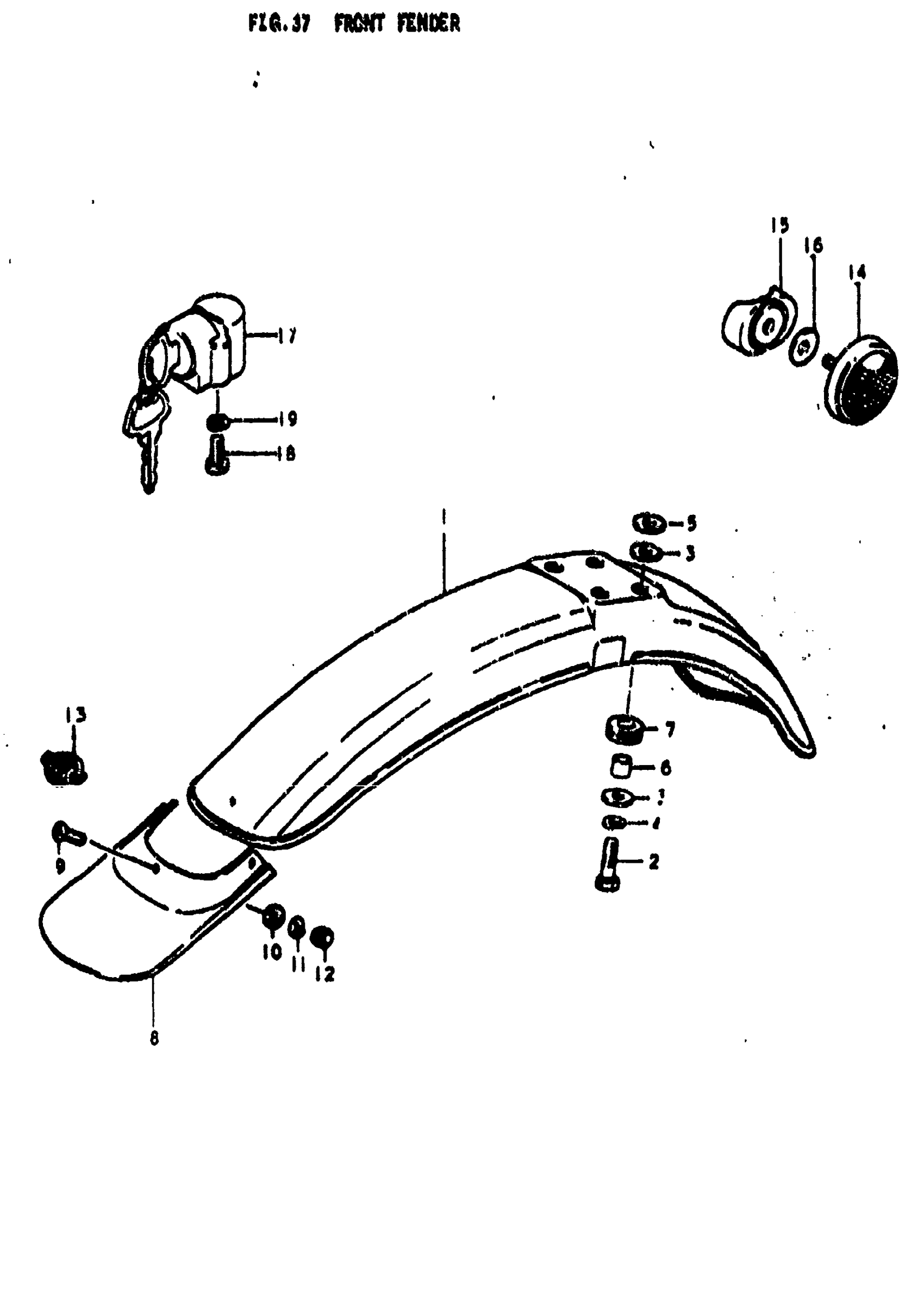

Suzuki TS250 (1976) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT | K; TO 53111-28300-709

53111-30600-709

Unavailable

1

FENDER, FRONT | K; TO 53111-28300-714

53111-30600-714

Unavailable

1

NO DESCRIPTION AVAILABLE | L This part replaces 53111-28300-293.

53111-28300-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 53111-28300-737.

53111-28300-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | A This part replaces 53111-28300-189.

53111-28300-13L

Unavailable

2

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

3

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPACER | 6.5x20x5

09180-06041

Unavailable

6

SPACER | 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

$2.47

7

CUSHION

09320-10003

$2.38

8

MUD FLAP | A

53411-28600

Unavailable

9

SCREW | A This part replaces 02141-04127.

02142-04127

$1.57

10

WASHER | A This part replaces 08322-21048.

08322-01047

$1.86

11

LOCK WASHER | A This part replaces 08321-21048.

08321-0104A

$1.84

12

NUT | A This part replaces 08311-11048.

08310-00047

$2.23

13

EMBLEM | A

99801-08810

Unavailable

14

REFLEX REFLECTOR FRONT This part replaces 35950-31010.

35950-49080

$17.24

15

SPACER

35995-29000

Unavailable

16

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

17

LOCK ASSY, STEERING This part replaces 51900-30830.

51900-30831

Unavailable

17

LOCK ASSY, STEERING | A; FROM 50000-25837 This part replaces 51910-25310.

51910-25311

$40.33

18

SCREW This part replaces 02112-05128.

02112-05127

$1.97

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
