Partiron

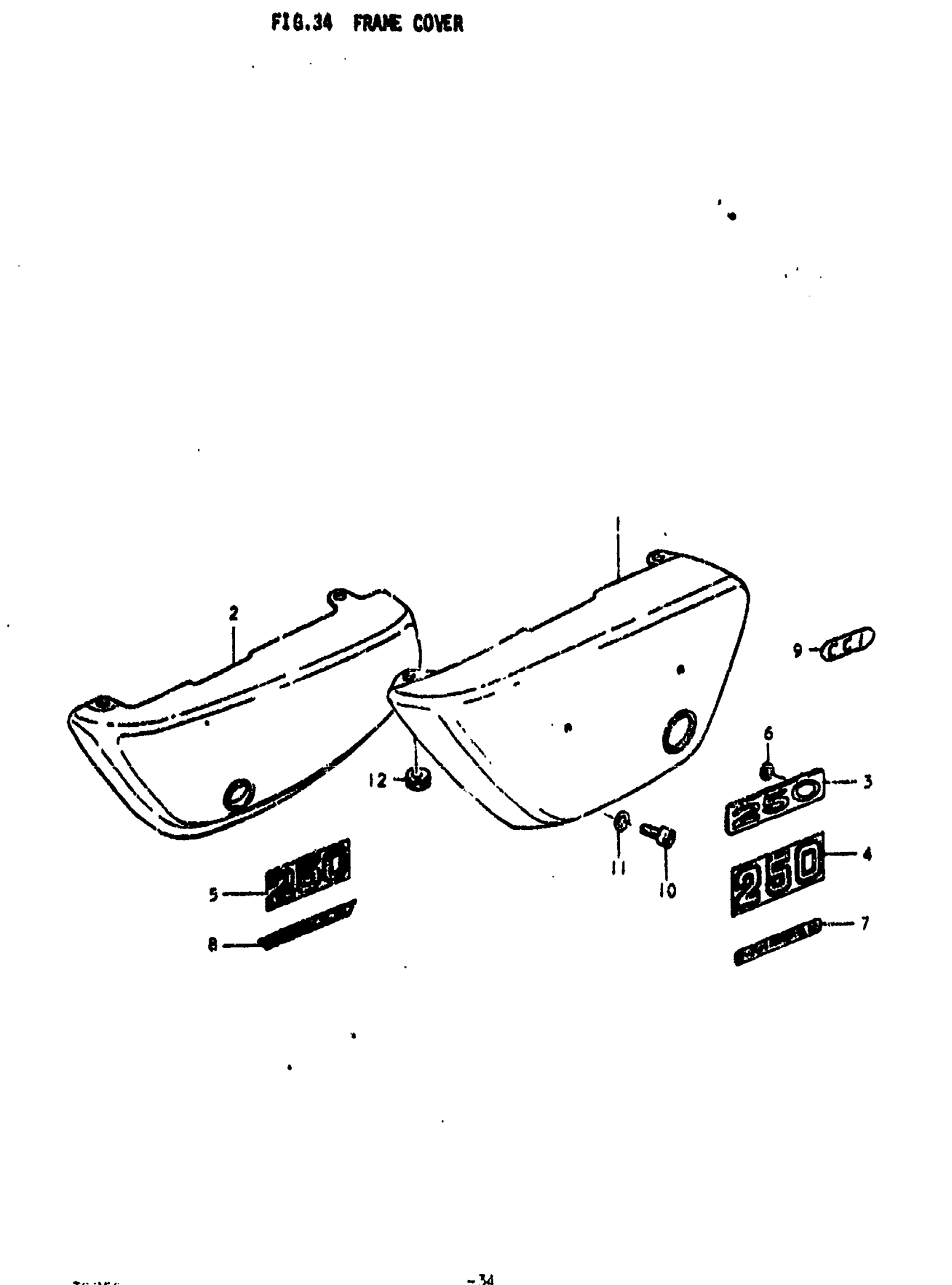

Suzuki TS250 (1976) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME LH | K; TO 47211-30601-709

47211-30600-709

Unavailable

1

COVER, FRAME LH | K; TO 47211-30601-714

47211-30600-714

Unavailable

1

NO DESCRIPTION AVAILABLE | L This part replaces 47211-30601-293.

47211-30601-019

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 47211-30601-737.

47211-30601-019

Unavailable

2

COVER, FRAME LH | A

47211-30610-293

Unavailable

3

EMBLEM | K

68141-30600

Unavailable

4

EMBLEM | L

68141-30300-002

Unavailable

4

EMBLEM | M

68141-30300-996

Unavailable

5

EMBLEM | A

68141-30610-538

Unavailable

6

NUT | K This part replaces 09148-03004.

09148-03011

$1.96

7

LABEL, COMPANY NAME | L,M

68363-26200

Unavailable

8

LABEL, COMPANY NAME | A

68363-26300

Unavailable

9

EMBLEM | OCI

68171-26000

$3.59

10

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

CUSHION This part replaces 09320-05006.

09320-06504

$4.96
