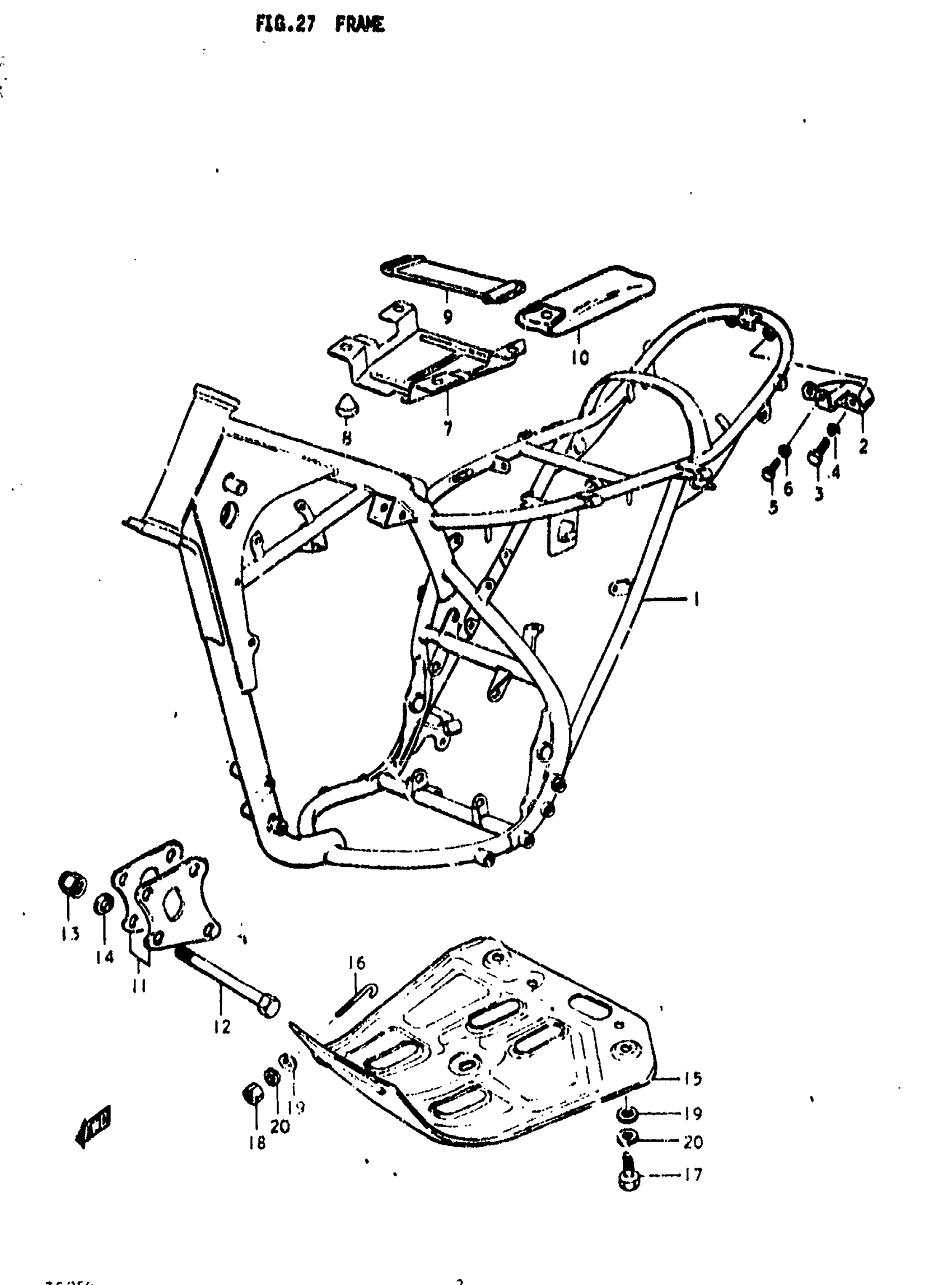

Suzuki TS250 (1976) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; TO 41100-30701-019 This part replaces 41100-30610-019.

41100-30702-019

Unavailable

1

FRAME | L,M; TO 41100-30701-019

41100-30700-019

Unavailable

1

FRAME | A; TO 41100-30303-019 USED WITH 50000-25837

41100-30302-019

Unavailable

2

BRACKET, REAR FENDER REAR | OPT

41255-30610

Unavailable

3

PLUG, DRAIN | OPT This part replaces 01122-08168.

01500-0816B

$2.50

4

.LOCK WASHER | OPT This part replaces 08321-21088.

08321-01087

$2.13

5

BOLT | OPT This part replaces 01112-06128.

01500-06127

$1.97

6

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

7

HOLDER, TOOL

41551-30000

Unavailable

8

CUSHION

09321-06011

$2.53

9

BAND This part replaces 09462-00048.

09462-00048-XC0

Unavailable

10

TOOL ASSY | FROM 09800-00123 This part replaces 09800-00146.

09800-21028

$33.02

11

PLATE, ENGINE MOUNTING | FROM 41590-30000

41591-30001

Unavailable

12

BOLT This part replaces 01122-08808.

01500-0880B

$3.49

13

NUT

09159-08020

$1.78

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

PROTECTOR, ENGINE | K,L; TO 11910-30000

11911-30000

Unavailable

15

PROTECTOR, ENGINE | M,A

11910-30000

Unavailable

16

BOLT, ENGINE PROTECTOR

11921-16400

Unavailable

17

BOLT This part replaces 01112-06128.

01500-06127

$1.97

18

.NUT This part replaces 08311-11068.

08310-00067

$2.13

19

WASHER | K,L This part replaces 08322-21068.

08322-01067

$2.13

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
