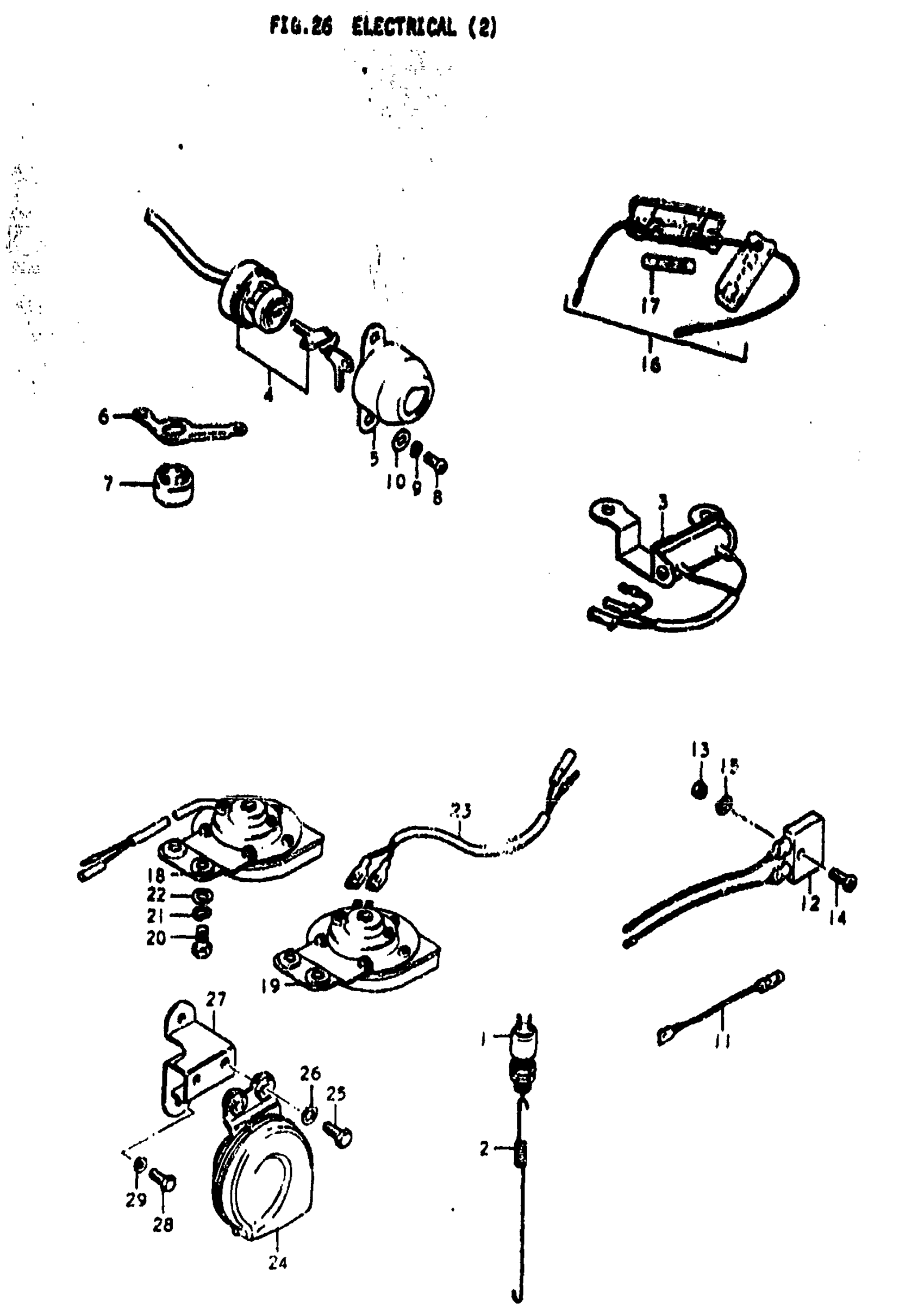

Suzuki TS250 (1976) ELECTRICAL (2) Diagram

#

Description
Price

1

SWITCH ASSY,BRAHE LAMP

37610-53011

$30.75

2

SPRING This part replaces 09443-06021.

09443-06045-XC0

Unavailable

3

RESISTOR ASSY | K,L,M

36500-30701

Unavailable

4

NO DESCRIPTION AVAILABLE | KL,M; TO 37110-25314 This part replaces 37110-30611.

37110-30613

Unavailable

4

SWITCH ASSY, IGNITION | A; TO 37110-25315 This part replaces 37110-25314.

37110-25319

$97.62

5

BRACKET, IGNITION SWITCH | K

37115-16401

Unavailable

6

BRACKET, IGNITION SWITCH | L,M,A

37115-38000

Unavailable

7

COVER, IGNITION SWITCH | L,M; TO 37128-36001

37128-36000

Unavailable

7

COVER, IGNITION SWITCH | A

37128-36001

Unavailable

8

SCREW | K This part replaces 02112-06128.

02112-06127

$1.84

9

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

$1.84

10

WASHER | K This part replaces 08322-21068.

08322-01067

$2.13

11

LEAD WIRE | A

36811-27610

Unavailable

12

RECTIFIRE ASSY | K,L; FROM 32800-16420

32800-16421

Unavailable

12

DIODE | M,A; TO 32800-19063 This part replaces 32800-19061.

32800-16A00

$23.07

13

NUT | K,L,M This part replaces 08311-11058.

08310-00057

$1.84

14

SCREW | A This part replaces 02112-05208.

02112-05207

$1.97

15

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

$1.84

16

FUSE CASE ASSY | Includes Item(s) 17 This part replaces 36740-15010.

36740-15011

$9.38

17

FUSE | 15A

09481-15001

$2.06

18

HORN | K,L; TO 38500-16431 USED WITH 36870-08030 This part replaces 38500-16430.

38500-16431

Unavailable

19

HORN ASSY | M

38500-16431

Unavailable

20

BOLT, REAR | K,L,M This part replaces 01122-08208.

01500-08207

$2.53

21

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER | K,L,M This part replaces 08322-21088.

08322-01087

$2.13

23

LEAD WIRE,HORN | L

36870-08030

Unavailable

23

LEAD WIRE,HORN | M

36870-31030

Unavailable

24

HORN ASSY | A

38500-25332

Unavailable

25

BOLT | A This part replaces 01122-08128.

01500-08127

$2.62

26

WASHER | A This part replaces 08322-11088.

08322-01087

$2.13

27

PLATE | M,A

38590-30000

Unavailable

28

SCREW | M,A This part replaces 02112-06128.

02112-06127

$1.84

29

LOCK WASHER | M,A This part replaces 08321-21068.

08321-01067

$2.13
