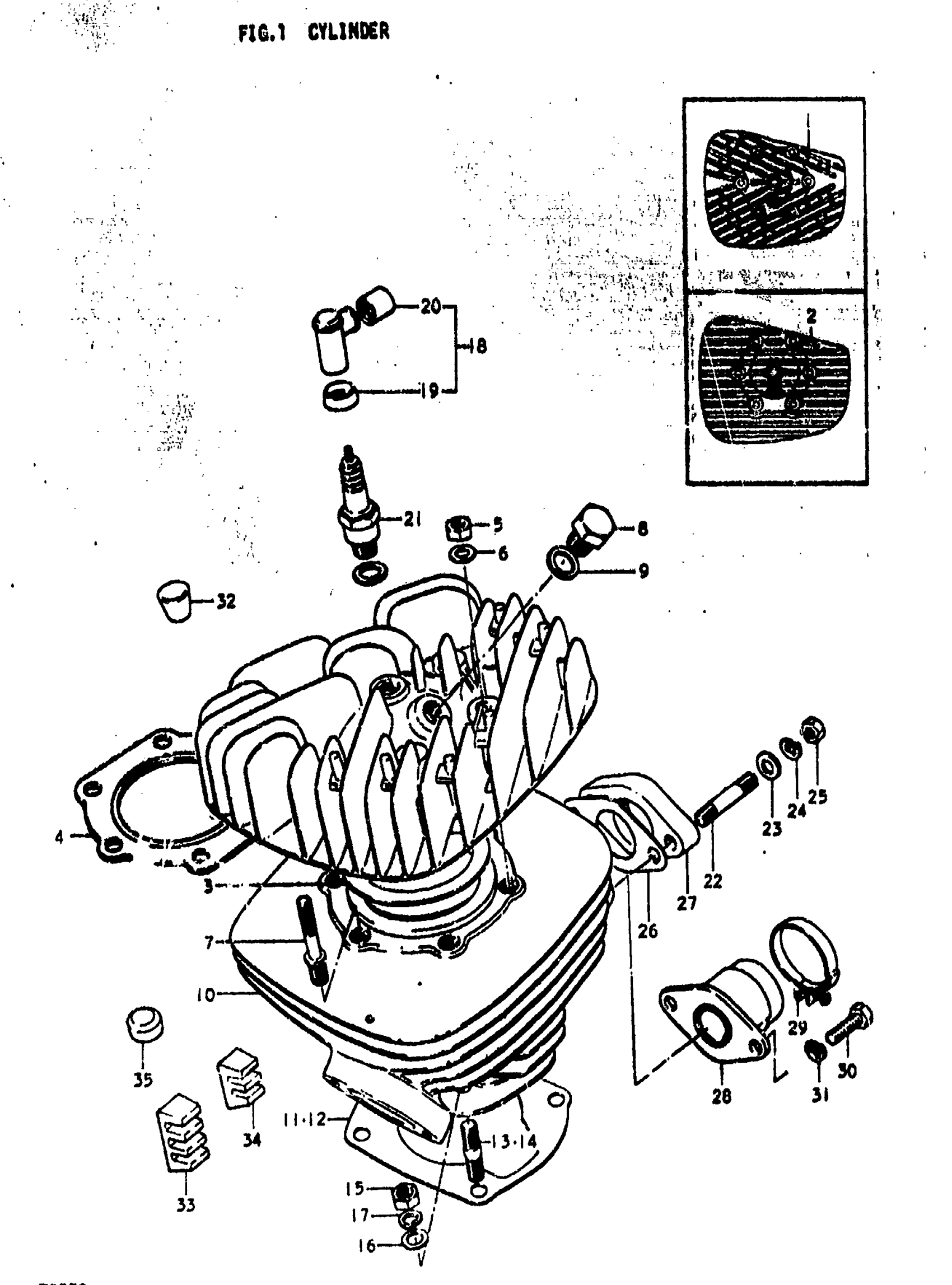

Suzuki TS250 (1976) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | K

11111-30000

Unavailable

2

CYLINDER HEAD | L; TO 11111-30301 This part replaces 11111-30300.

11111-30301

Unavailable

2

CYLINDER HEAD | L

11111-30301

Unavailable

2

CYLINDER HEAD | A

11111-30302

Unavailable

3

GASKET, CYLINDER HEAD | K,L

11141-16300

Unavailable

3

GASKET, CYLINDER HEAD | M This part replaces 11141-16400.

11141-16300

Unavailable

4

GASKET | A This part replaces 11141-30083.

11141-30900

Unavailable

5

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

STUD BOLT

09108-08018

$3.18

8

PLUG, DRAIN | K,L,M This part replaces 09247-14007.

09247-14025

$2.79

9

GASKET | K,L,M; 15.7x19.5x2

09168-14004

$1.83

10

CYLINDER | K,L,M

11210-30000

Unavailable

10

CYLINDER | A

11211-30001

Unavailable

11

GASKET,CYLINDER | K,L,M This part replaces 11241-30000.

11241-30001

Unavailable

12

GASKET, CYLINDER | A

11241-30011

Unavailable

13

STUD BOLT (L:30) | K,L,M This part replaces 01421-10308.

01421-1030A

$2.57

14

BOLT,STUD | A This part replaces 01421-10608.

01421-1060A

$3.49

15

NUT This part replaces 08312-12108.

08310-00107

$2.19

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

CAP SET,SPARK P | Includes Item(s) 19 - 20 This part replaces 33500-69810.

33500-69811

$22.48

19

SEAL, SPARK PLUG

33541-69010

$4.37

20

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

21

SPARK PLUG (NGK,BR7ES) | K,L,M; NGK, B7ES This part replaces 09482-00089.

09482-00117

$3.03

21

SPARK PLUG | K,L,M; ND, W22ES

09482-00090

Unavailable

21

SPARK PLUG W24E | A; ND, W24ES This part replaces 09482-00092.

09482-00247-111

Unavailable

21

SPARK PLUG | K,L,M; NGK, B77EC OPT This part replaces 09482-00029.

09482-00091

$3.01

21

SPARK PLUG | K,L,M,A; NGK, BBES DISTO OPT

09482-00091

$3.01

22

STUD BOLT | K,L,M This part replaces 01421-08358.

01421-0835A

$2.29

23

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$2.13

24

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$2.13

25

NUT | K,L,M This part replaces 08312-11088.

08310-00087

$2.13

26

GASKET, CARBURETOR | K,L,M

13125-30000

Unavailable

27

INSULATOR, CARBURETOR | K,L,M

13129-30000

Unavailable

28

PIPE, INTAKE | A

13110-30000

Unavailable

29

CLAMP | A This part replaces 09402-46306.

09402-46208

$4.64

30

BOLT | A

01111-08208

Unavailable

31

.LOCK WASHER | A This part replaces 08321-21088.

08321-01087

$2.13

32

RUBBER PAD, CYLINDER HEAD

11151-16400

Unavailable

33

RUBBER PAD, CYLINDER LH | K,L,M This part replaces 11251-16400.

11261-16400

Unavailable

34

RUBBER PAD, CYLINDER LH | K,L,M

11261-16400

Unavailable

35

RUBBER PAD, CYLINDER | A

11252-38001

$3.78
