Partiron

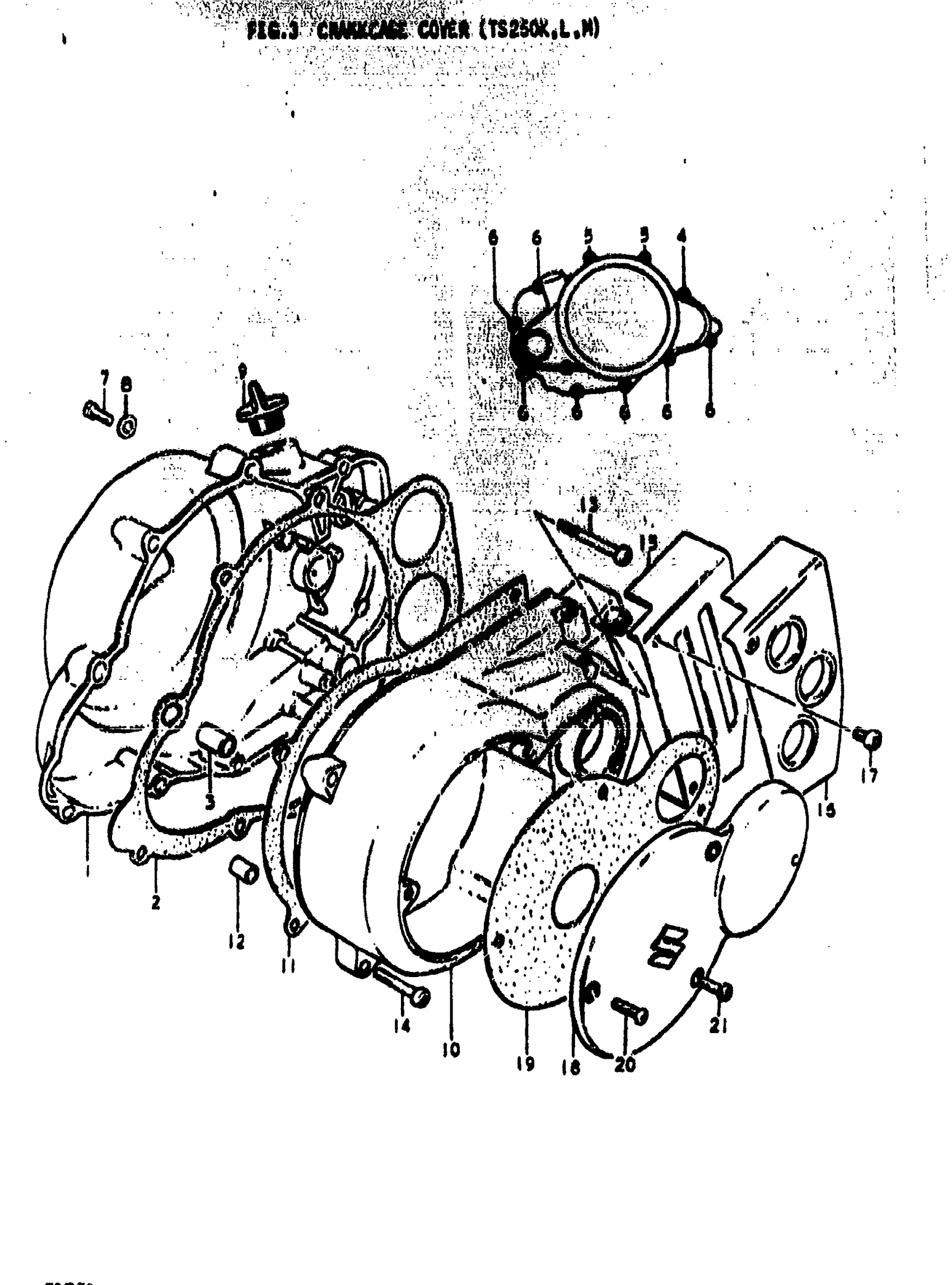

Suzuki TS250 (1976) CRANKCASE COVER (TS250K Diagram

#

Description
Price

1

COVER, CLUTCH | K; TO 11341-30001

11341-30000

Unavailable

1

COVER, CLUTCH | L; TO 11341-30002 USED WITH 09259-19002

11341-30001

Unavailable

1

COVER, CLUTCH | M

11341-30002

Unavailable

2

GASKET,CLUTCH C | K,L; TO 11482-30001 This part replaces 11482-30000.

11482-30002

Unavailable

2

GASKET,CLUTCH C | M This part replaces 11482-30001.

11482-30002

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

8

GASKET

09168-06001

$1.49

9

PLUG SET | K,L; THREAD TYPE This part replaces 09259-20003.

09200-20811

$4.02

9

PLUG | M; CAP TYPE This part replaces 09259-19001.

09259-19005

$2.98

10

COVER, MAGNETO | K,L; TO 11351-38000 This part replaces 11351-30000.

11351-38000

Unavailable

10

COVER, MAGNETO | M

11351-38000

Unavailable

11

GASKET

11483-30000

Unavailable

12

DOWEL PIN

04211-09129

$1.65

13

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

14

SCREW This part replaces 02112-06258.

02112-06257

$1.78

15

COVER, ENGINE SPROCKET | K

11361-30000

Unavailable

16

COVER, ENGINE SPROCKET | L,M

11361-30300

Unavailable

17

SCREW

02112-05107

$1.49

18

CAP, MAGNETO INSPECTION | FROM 11381-30000

11381-30001

Unavailable

19

GASKET

11491-30000

Unavailable

20

SCREW | K This part replaces 02111-05207.

02112-05207

$1.97

21

SCREW | K This part replaces 02112-05168.

02112-05167

$1.97
