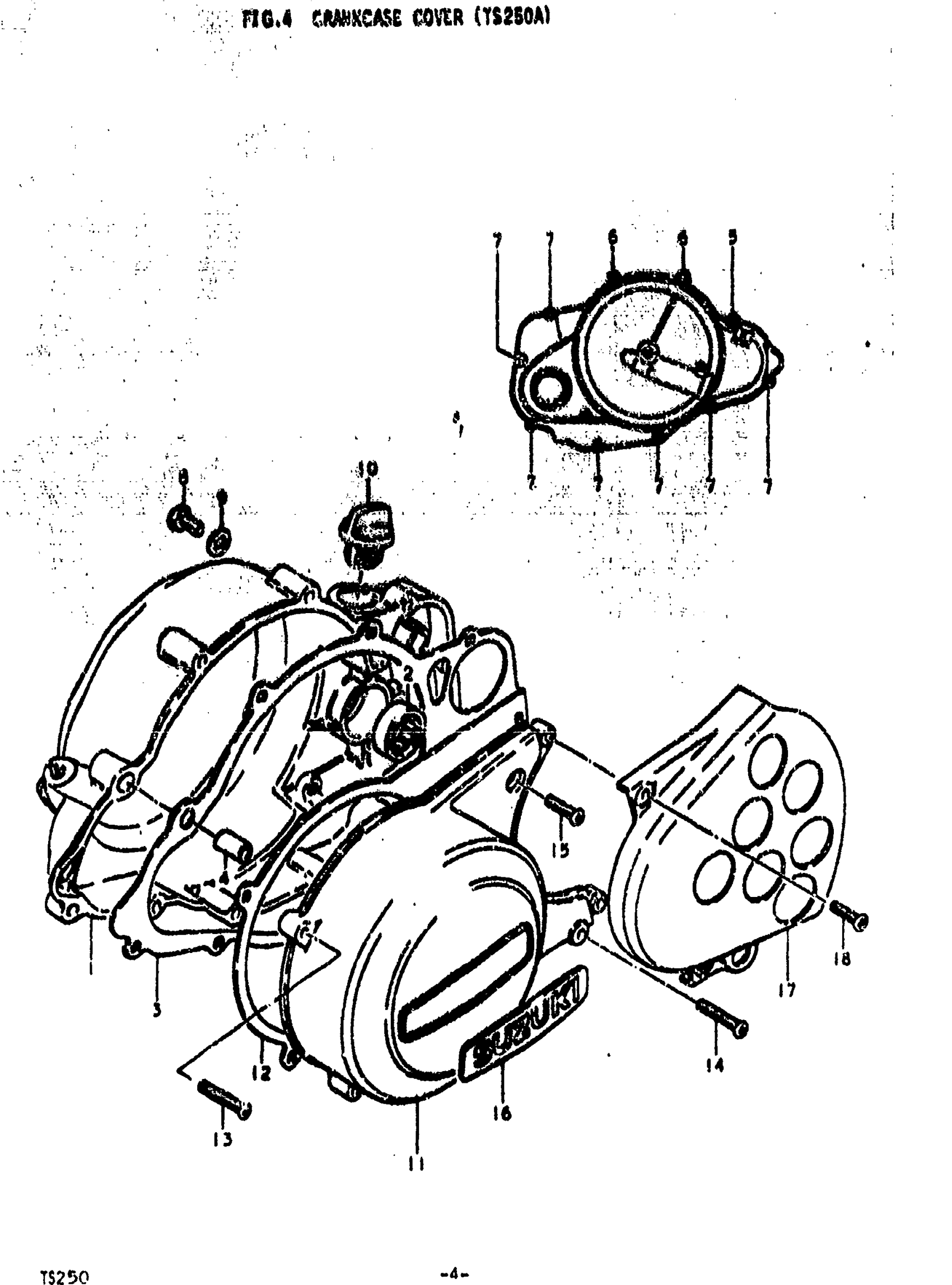

Suzuki TS250 (1976) CRANKCASE COVER (TS250A) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 11300-30851.

11300-38840

Unavailable

2

BEARING

09263-20015

Unavailable

3

GASKET,CLUTCH C This part replaces 11482-30001.

11482-30002

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

9

GASKET

09168-06001

$1.49

10

PLUG This part replaces 09259-19001.

09259-19005

$2.98

11

COVER, MAGNETO

11351-30700

Unavailable

12

GASKET

11483-30000

Unavailable

13

SCREW This part replaces 02112-06258.

02112-06257

$1.78

14

SCREW

02112-06307

$1.97

15

SCREW This part replaces 02112-06208.

02112-06207

$1.78

16

EMBLEM, MAGNETO COVER

68233-28000

$9.75

17

COVER, ENGINE SPROCKET

11361-30700

Unavailable

18

SCREW

02112-05107

$1.49
