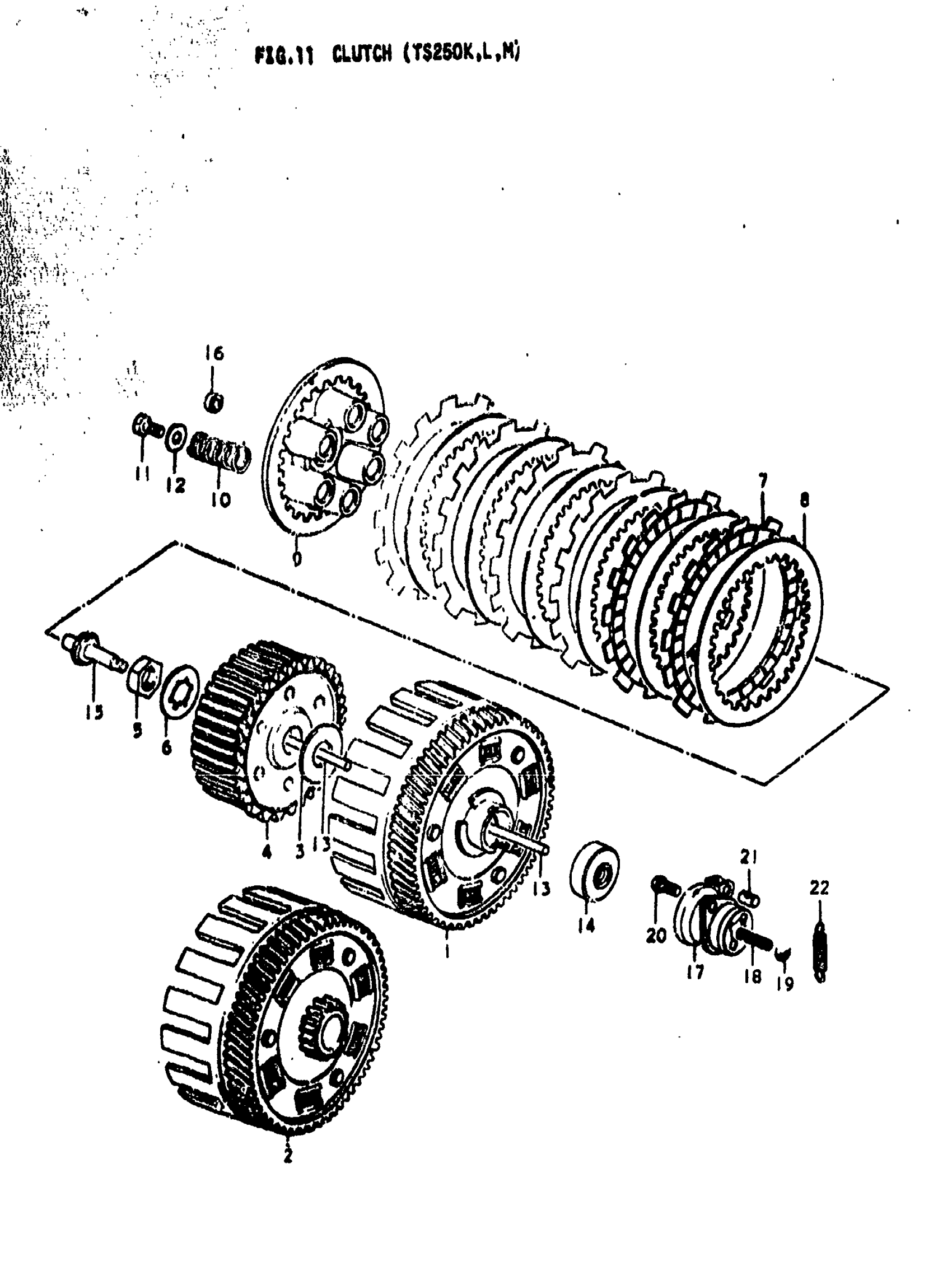

Suzuki TS250 (1976) CLUTCH (TS250K Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | K,L; NT:67 TO 21200-30002

21200-30600

Unavailable

2

GEAR ASSY, PRIMARY DRIVEN | M; NT:67/18 This part replaces 21200-30002.

21200-30003

Unavailable

3

THRUST WASHER | 20x44x3

09160-20015

$5.88

4

HUB, SLEEVE This part replaces 21411-30000.

21411-30001

Unavailable

5

NUT This part replaces 09140-20002.

09140-20001

$3.37

6

LOCK WASHER | 16.5x38x0.8 This part replaces 09167-20006.

09167-20009

$2.03

7

PLATE, CLUTCH DRIVE NO.2 This part replaces 21441-16500.

21442-37401

$18.67

8

PLATE, CLUTCH DRIVEN

21451-31000

$10.40

9

DISK, CLUTCH PRESSURE

21462-15000

Unavailable

10

SPRING

09440-19004

$2.50

11

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

12

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

13

ROD, CLUTCH PUSH | L:104 This part replaces 23111-30000.

23111-30001

Unavailable

14

SEAL,OIL(6X30X7 | FROM 09285-06004 This part replaces 09285-06005.

09285-06009

$3.89

15

PIECE, CLUTCH PUSH

23121-15001

Unavailable

16

OIL SEAL | 10x17x5

09284-10002

$2.90

17

SCREW ASSY, RELEASE | TO 23200-30001; Includes Item(s) 18 - 19 This part replaces 23200-30000.

23200-30002

Unavailable

18

SCREW This part replaces 09134-06001.

09134-06010

$3.12

19

.NUT This part replaces 08311-31068.

08310-00067

$2.13

20

SCREW This part replaces 02112-06128.

02112-06127

$1.84

21

PIECE, RELEASE ARM END

23222-07000

$4.52

22

SPRING

09443-08001

$2.92
