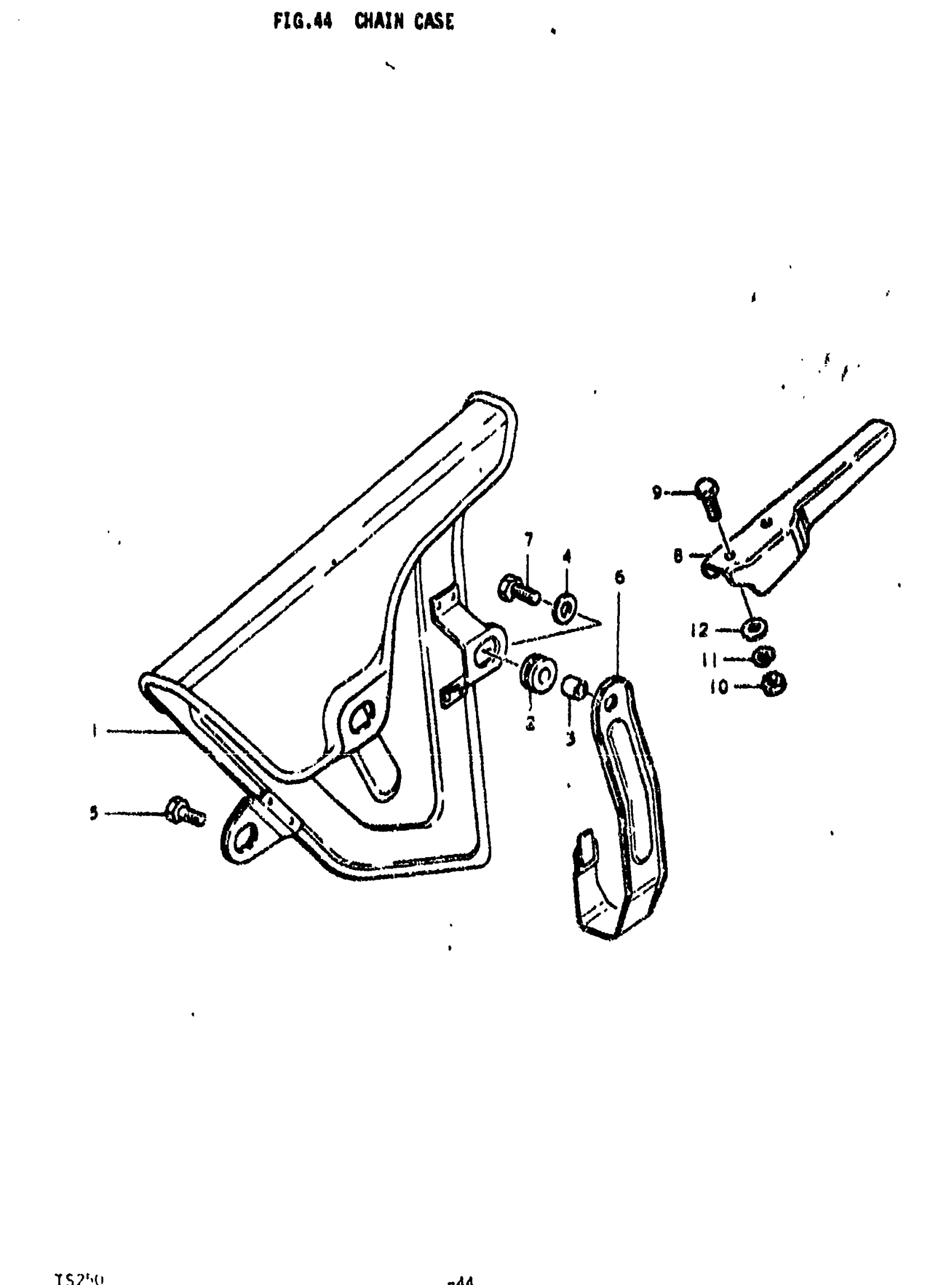

Suzuki TS250 (1976) CHAIN CASE Diagram

#

Description
Price

1

CHAIN CASE | K,L,M

61310-16400

Unavailable

1

NO DESCRIPTION AVAILABLE | A This part replaces 61310-30600-019.

61310-30600-126

Unavailable

2

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

3

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

4

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

5

BOLT This part replaces 01112-06128.

01500-06127

$1.97

6

CUIDE, CHAIN

61340-16400

Unavailable

7

BOLT

09128-06008

$1.49

8

END, CHAIN CASE | OPT

61331-30000

Unavailable

9

BOLT | OPT This part replaces 01112-06108.

01500-06107

$2.06

10

.NUT | OPT This part replaces 08311-11068.

08310-00067

$2.13

11

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | OPT This part replaces 08322-21068.

08322-01067

$2.13
