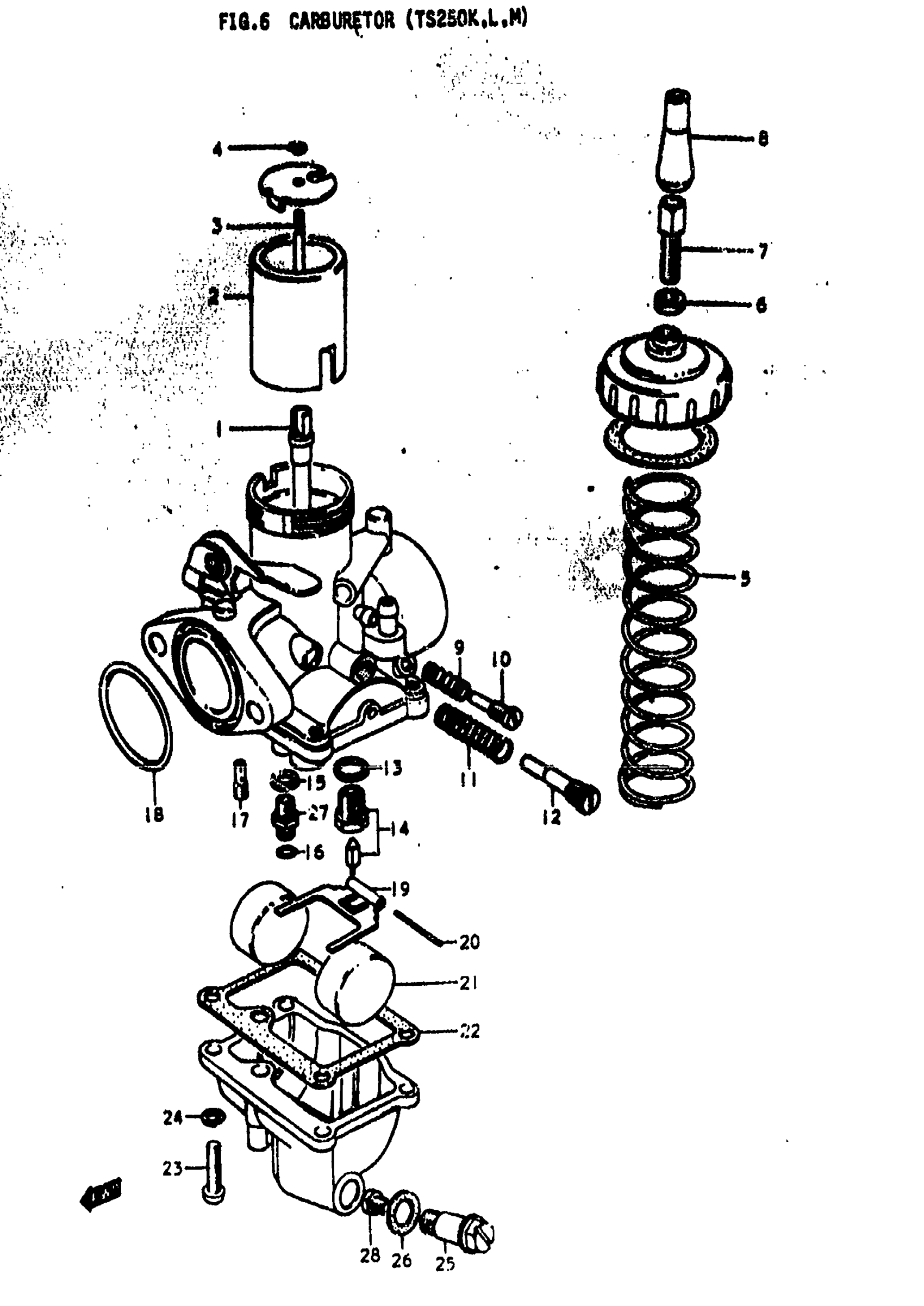

Suzuki TS250 (1976) CARBURETOR (TS250K Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 28

13200-30601

Unavailable

1

JET, NEEDLE | 0-4

09494-00082

Unavailable

2

VALVE, THROTTLE | CA:2.5

13551-30010

Unavailable

3

NEEDLE, JET | 5CN3-2

13383-18620

Unavailable

4

CLIP, NEEDLE

13394-10010

$5.45

5

SPRING, THROTTLE VALVE

13573-30010

Unavailable

6

NUT, ADJUSTER

13661-16600

$4.64

7

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

8

CAP, ADJUSTER

13681-16601

$8.26

9

SPRING, PILOT AIR SCREW

13268-01010

$5.28

10

SCREW, PILOT AIR

13269-15010

Unavailable

11

SPRING, STOP SCREW

13268-03110

$5.45

12

SCREW, THROTTLE STOP | 00:4.3 FROM 13267-97014

13267-18654

Unavailable

13

GASKET, VALVE

13392-58600

$1.82

14

VALVE ASSY, NEEDLE

13370-18111

$52.32

15

WASHER, JET

13382-03110

$2.80

16

O RING This part replaces 13294-30010.

13278-02340

$1.91

17

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

$9.55

18

O RING, INSULATOR

13295-18620

Unavailable

19

ARM, FLOAT

13253-30010

Unavailable

20

.PIN, FLOAT | FROM 13254-11010 This part replaces 13254-35013.

13254-01010

$3.62

21

FLOAT

13252-18620

$21.82

22

GASKET, FLOAT CHAMBER | K; TO 13251-33110 This part replaces 13251-18010.

13251-33110

$9.03

22

GASKET, FLOAT CHAMBER | L,M

13251-33110

$9.03

23

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

24

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

25

BOLT, UNION

13333-30010

Unavailable

26

WASHER

13332-30010

Unavailable

27

SETTER

13330-30010

Unavailable

28

JET, MAIN (180) | #180 This part replaces 09491-36003.

09491-36006

Unavailable

28

JET, MAIN | OPT #160

09491-32002

Unavailable

28

JET, MAIN | OPT #170

09491-34002

Unavailable

28

JET, MAIN (190) | OPT #190 This part replaces 09491-38003.

09491-38009

Unavailable

28

JET, MAIN (200) | #200 OPT This part replaces 09491-40004.

09491-40006

Unavailable

28

JET, MAIN (210) | OPT #210 This part replaces 09491-42001.

09491-42005

Unavailable

28

JET, MAIN | OPT #220 This part replaces 09491-44001.

09491-44007

Unavailable

28

JET, MAIN | OPT #230

09491-46001

$11.57
