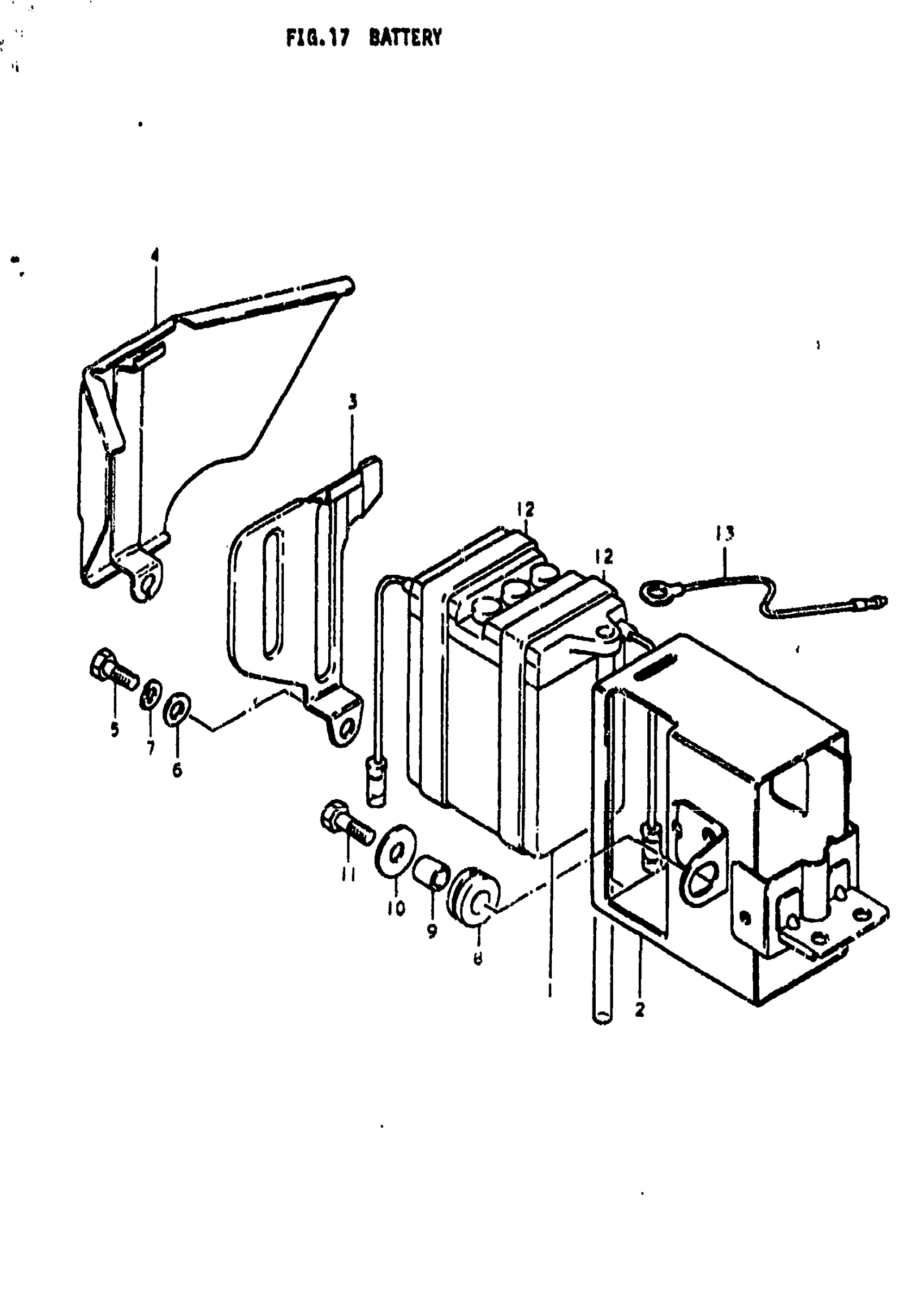

Suzuki TS250 (1976) BATTERY Diagram

#

Description
Price

1

6N4B-2A BATTERY | 6V, 4AH This part replaces 33610-03610.

33610-03611

$79.23

2

HOLDER, BATTERY | K,L,M; TO 41540-30001 This part replaces 41540-30000.

41540-30002

Unavailable

2

HOLDER, BATTERY | A

41540-30002

Unavailable

3

PLATE, BATTERY | K,L,M

41561-30000

Unavailable

4

COVER, HOLDER | A; TO 41560-30500 This part replaces 41560-30001.

41560-30502

Unavailable

5

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

6

WASHER This part replaces 08322-21068.

08322-01067

$2.13

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

9

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

10

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

11

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

12

PROTECTOR, BATTERY

33651-30000

Unavailable

13

LEAD WIRE, BATTERY (-) | L,A

36862-27690

$5.20
