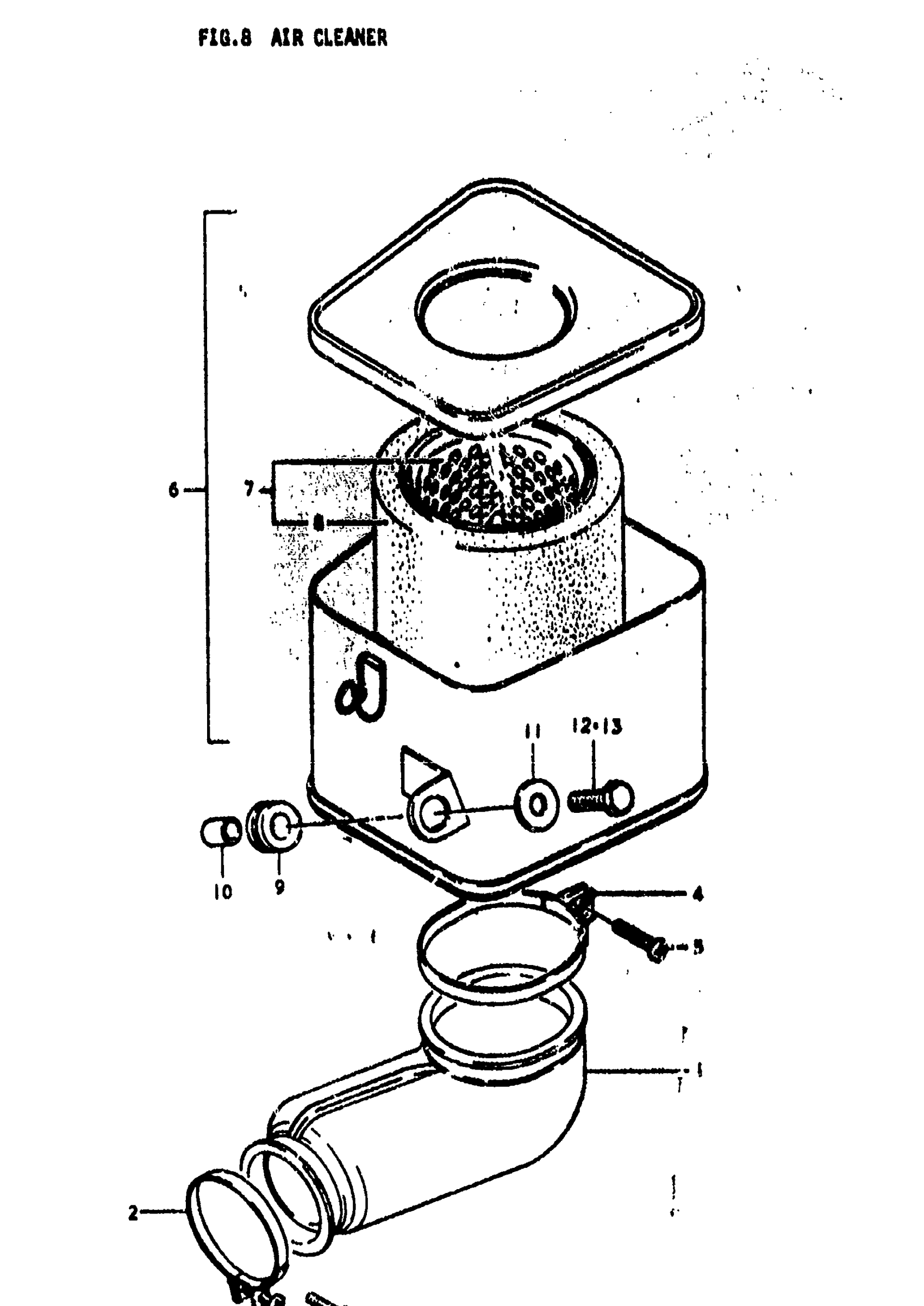

Suzuki TS250 (1976) AIR CLEANER Diagram

#

Description
Price

1

HOSE, CARBURETOR INLET | K,L,M; FROM 13881-30000 TO 13881-30002 This part replaces 13881-30001.

13881-30002

Unavailable

1

HOSE, CARBURETOR INLET | A

13881-30002

Unavailable

2

CLAMP | K,L,M

09402-50306

$4.77

2

CLAMP | A

09402-52306

$4.91

3

SCREW | K This part replaces 02111-04208.

02112-0420A

$1.49

4

CLAMP

09402-00217

Unavailable

5

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

6

CLEANER ASSY, AIR | FROM 13700-30610; Includes Item(s) 7 - 8

13700-30611

Unavailable

7

FILTER ASSY

13780-30610

Unavailable

8

FILTER ASSY | FROM 13781-30610 This part replaces 13781-30611.

13780-30610

Unavailable

9

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

10

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

11

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

12

BOLT, CANISTER | K,LM,A This part replaces 01112-06168.

01500-06167

$1.97

13

BOLT | K,L; 6x16

09100-06066

Unavailable
