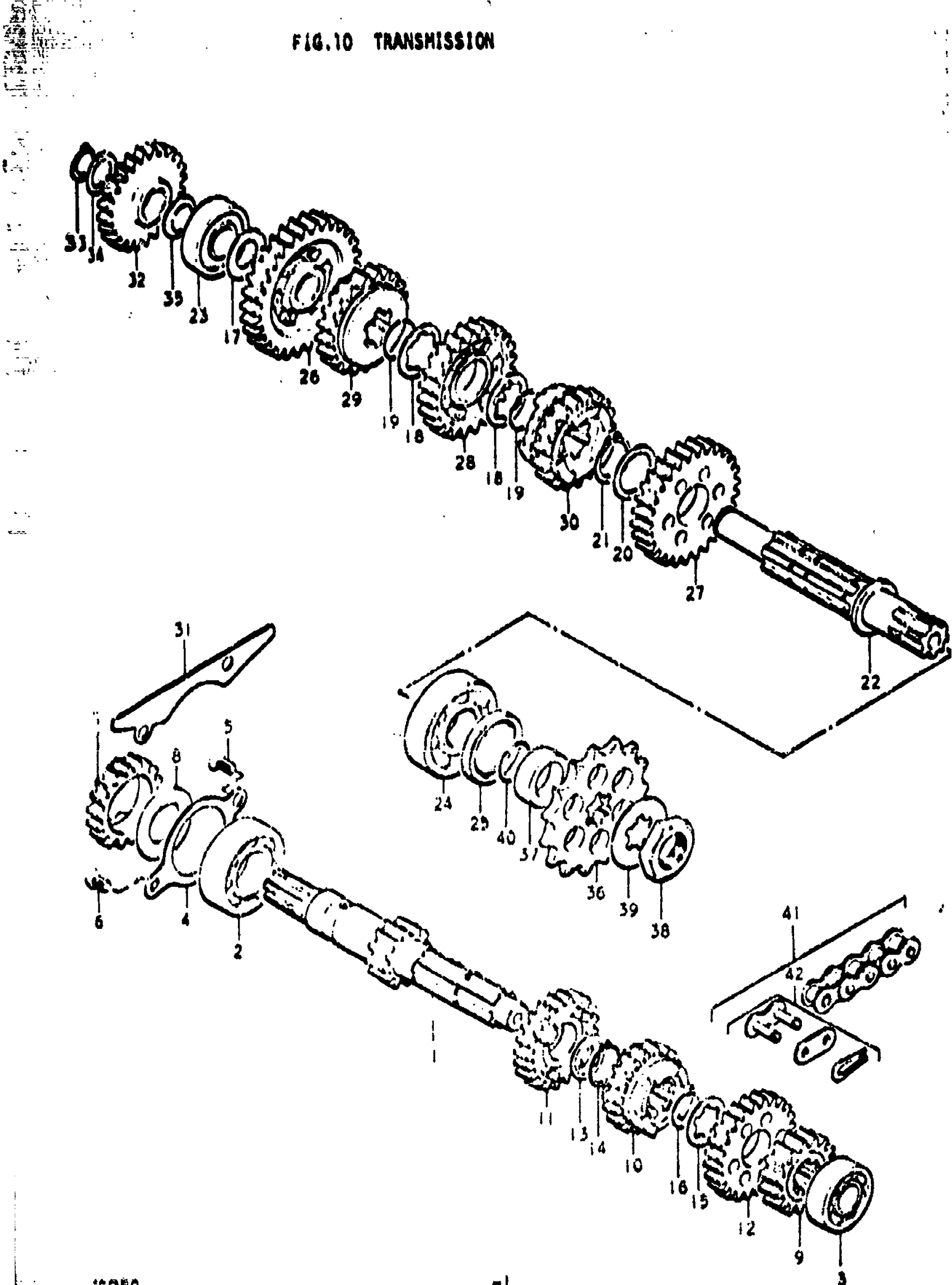

Suzuki TS250 (1972) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT | NT:12

24121-30000

Unavailable

2

BEARING (25X52X15) This part replaces 08143-62050.

08143-62057

$24.40

3

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

4

HOLDER, BEARING

24741-30100

Unavailable

5

SCREW This part replaces 02122-06128.

02122-06127

$1.84

6

SCREW This part replaces 02112-06108.

02112-06107

$1.49

7

GEAR, KICK STARTER DRIVEN | R; NT:18 TO 26281-30001 This part replaces 26281-30700.

26281-30001

Unavailable

7

GEAR, KICK STARTER DRIVEN | J; NT:18

26281-30001

Unavailable

8

WASHER | 25x41x3

09160-25009

$5.36

9

GEAR, 2ND DRIVE | NT:15

24221-30000

Unavailable

10

GEAR, 3RD DRIVE | NT:16 TO 24231-30100 WITH 24251-30100.

24231-30000

Unavailable

10

GEAR, 3RD DRIVE | NT:18

24231-30100

Unavailable

11

GEAR, 4TH DRIVE | NT:21

24241-30000

Unavailable

12

GEAR, 5TH DRIVE | NT:23 TO 24251-30100 WITH 24231-30100.

24251-30000

Unavailable

12

GEAR, 5TH DRIVE | NT:23

24251-30100

Unavailable

13

WASHER (22X28X1.0) | 22x28x1 This part replaces 08211-22281.

09181-22139

$3.48

14

CIRCLIP This part replaces 09380-22001.

08331-31229

$2.48

15

WASHER | 18.5x29x1

09167-22007

Unavailable

16

CIRCLIP

09380-22003

$1.92

17

THRUST WASHER | 17x25x1

08211-17251

$2.83

18

WASHER | 22x32x1

09167-25004

Unavailable

19

CIRCLIP

09380-25006

Unavailable

20

THRUST WASHER | 25x32x1

08211-25321

$3.27

21

SNAP RING

09380-25003

$3.04

22

DRIVESHAFT | TO 24131-30001 This part replaces 24131-30000.

24131-30001

Unavailable

23

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

$18.47

24

BEARING, RH (22X56X16) | 22x56x16 This part replaces 09262-22006.

09262-22025

$57.67

25

OIL SEAL

09283-32003

$7.31

26

GEAR, 1ST DRIVEN | NT:29

24310-30001

Unavailable

27

GEAR, 2ND DRIVEN | NT:27

24321-30000

Unavailable

28

GEAR, 3RD DRIVEN | NT:23 TO 24331-30100 WITH 24351-30101.

24331-30000

Unavailable

28

GEAR, 3RD DRIVEN | NT:23

24331-30100

Unavailable

29

GEAR, 4TH DRIVEN | R; NT:21 TO 24341-30001

24341-30000

Unavailable

29

GEAR, 4TH DRIVEN | J; NT:21

24341-30001

Unavailable

30

GEAR, 5TH DRIVEN | J; NT:19 TO 24351-30100 WITH 24331-30100.

24351-30000

Unavailable

30

GEAR, 5TH DRIVEN | NT:19 FROM 24351-30100

24351-30101

Unavailable

31

PLATE, OIL RESERVOIR

24871-30000

Unavailable

32

GEAR, KICK STARTER IDLE | NT:22 This part replaces 26260-30001.

26260-30002

Unavailable

33

CIRCLIP

09380-17001

$1.98

34

THRUST WASHER | 17x25x1

08211-17251

$2.83

35

WASHER

09164-17002

Unavailable

36

SPROCKET, ENGINE | NT:15

27511-18710

Unavailable

36

SPROCKET, ENGINE | NT:13 OPT

27511-18700

Unavailable

36

SPROCKET, ENGINE | NT:14 OPT

27511-18000

Unavailable

36

SPROCKET, ENGINE | NT:16 OPT

27511-18720

Unavailable

37

SPACER | 22x32x11.5

09180-22007

Unavailable

38

NUT

09140-22003

Unavailable

39

WASHER | 18.5x40x0.8

09167-22005

$2.11

40

O RING | 10:22, D:1.7

09280-22003

$1.72

41

CHAIN ASSY, DRIVE (#5250x1041)

27600-16410

Unavailable

42

JOINT, CHAIN This part replaces 27620-16410.

27620-30110

Unavailable
