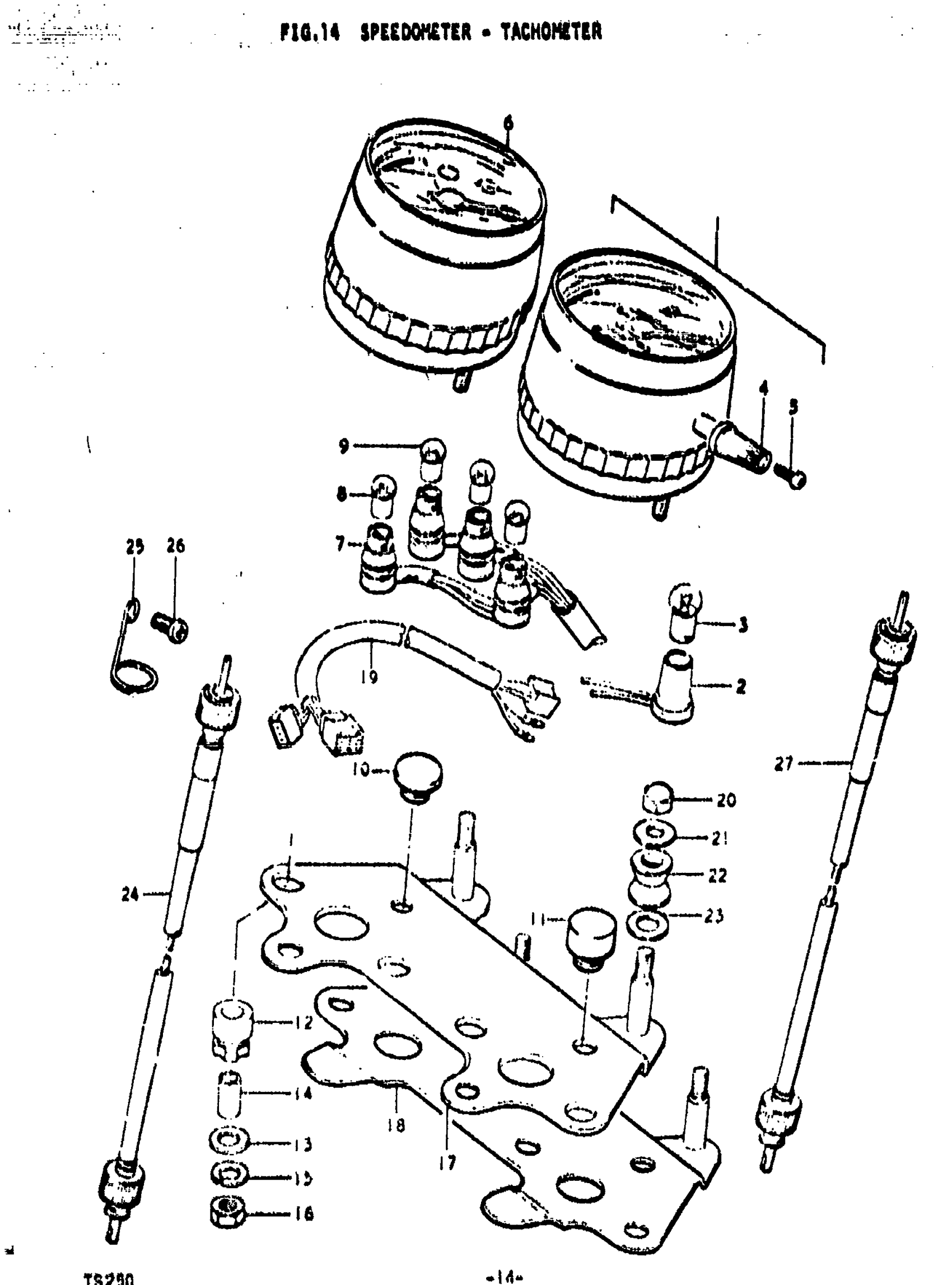

Suzuki TS250 (1972) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

SPEEDOMETER / TACHOMETER ASSY | FROM 34100-30600; Includes Item(s) 1 - 19

34100-30601

Unavailable

1

SPEEDOMETER ASSY | FROM 34100-30621-999

34100-30621

Unavailable

2

SOCKET

34173-18620

Unavailable

3

BULB | 6V, 3W

09471-06002

$2.25

4

KNOB, TRIPMETER

34980-30610

Unavailable

5

SCREW (2X6) This part replaces 34981-33600.

09139-02003

$1.65

6

NO DESCRIPTION AVAILABLE | FROM 34200-30621-999 This part replaces 34200-30621.

34200-30621-999

Unavailable

7

SOCKET

34170-30020

Unavailable

8

BULB | 6V, 3W

09471-06002

$2.25

9

BULB | 6V, 1.7W

09471-06001

$2.18

10

CUSHION, METER A

34955-16420

$4.43

11

CUSHION, METER B

34956-16420

Unavailable

12

CUSHION, METER C

34957-16420

Unavailable

13

WASHER | 6.5x19x1.6 This part replaces 09160-06007.

09160-06084

$1.78

14

SPACER | 6x8x17.5

34972-16420

Unavailable

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

.NUT This part replaces 08311-11068.

08310-00067

$2.13

17

BRACKET | R

34950-30020

Unavailable

18

BRACKET | J

34950-30621

Unavailable

19

CONNECTOR, CORD

34175-30700

Unavailable

20

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

21

WASHER | 6.5x19x1.6 This part replaces 09160-06007.

09160-06084

$1.78

22

CUSHION, BRACKET

34956-15100

$3.71

23

WASHER This part replaces 08322-21088.

08322-01087

$2.13

24

CABLE ASSY,TACH | L:900 This part replaces 34940-30031.

34940-29903

$42.43

25

GUIDE, HIGHTENSION CORD This part replaces 34949-30000.

34949-30002

$5.69

26

SCREW This part replaces 02112-06108.

02112-06107

$1.49

27

CABLE,SPEEDOMET | L:860 This part replaces 34910-30031.

34910-18991

$31.50
