1972 Suzuki TS250 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 1972 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

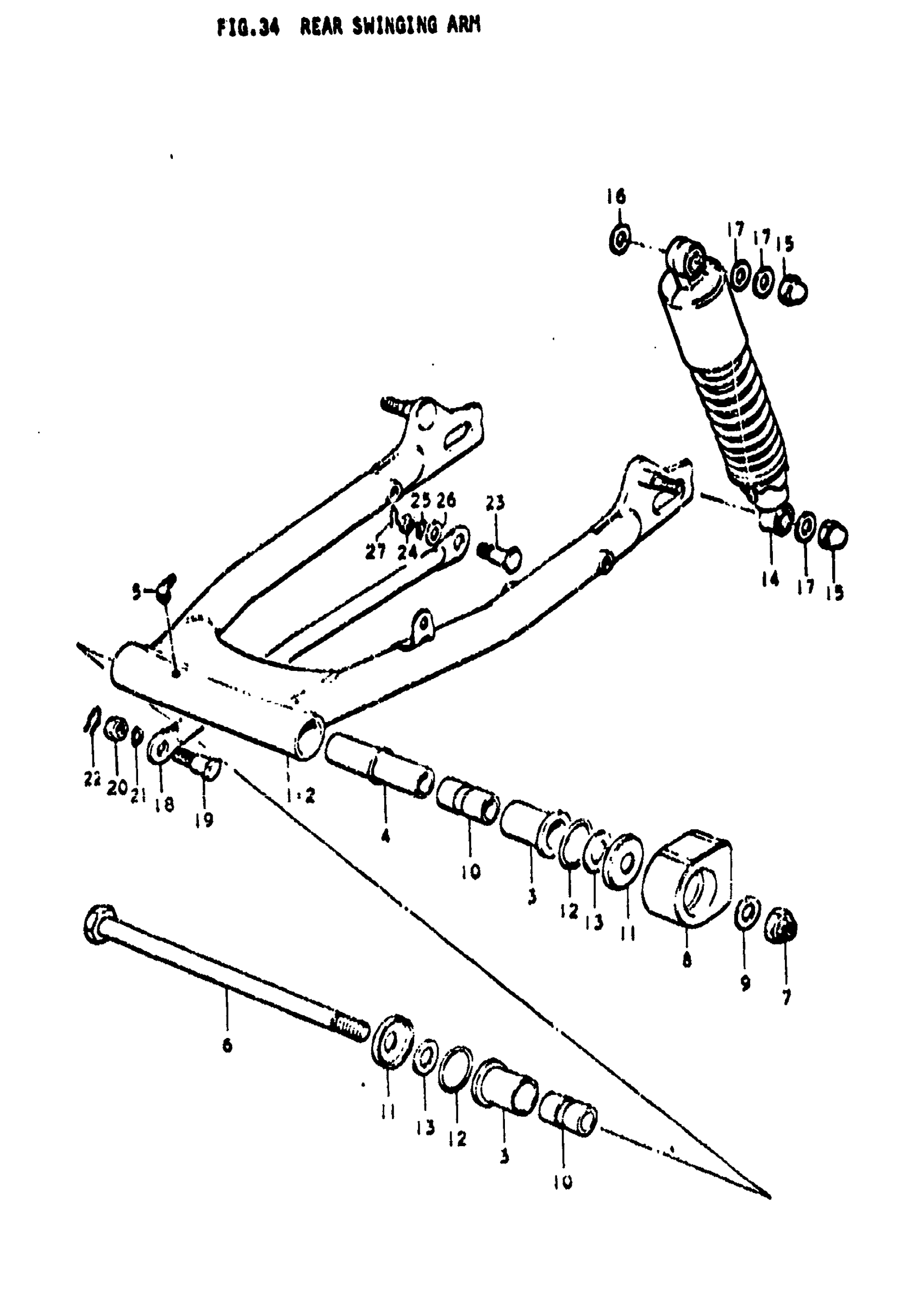

1972 Suzuki TS250 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARM SET, REAR SWINGING | R

61101-30806-019

—
Out of stock

2

REAR SWINGING ARM SET | J; Includes Item(s) 3 - 4 This part replaces 61100-30860-019.

61100-30861-019

1
Out of stock

3

BUSHING This part replaces 09307-18001.

09307-18002

2
Out of stock

4

SPACER

61280-30000

1
Out of stock

5

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

1
Out of stock

6

SHAFT, REAR SWINGING ARM

61211-16500

1
Out of stock

7

NUT | R; TO 09159-12102

09159-12101

—
Out of stock

7

NUT | J

09159-12102

1
Out of stock

8

BUFFER, CHAIN

61273-30000

1
Out of stock

9

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

10

SPACER, REAR SWINGING ARM

61251-28000

2
Out of stock

11

COVER, DUST SEAL

61262-09200

2
Out of stock

12

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

13

WASHER | 12.5x24x2.3

09160-12005

2
Out of stock

14

ABSORBER, REAR SHOCK

62100-30010

2
Out of stock

15

NUT This part replaces 08313-11107.

08313-10107

4
Out of stock

16

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

17

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

6
Out of stock

18

TORQUE LINK, REAR

64311-30001

1
Out of stock

19

BOLT

09111-08012

1
Out of stock

20

NUT

09140-08008

1
Out of stock

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

1
Out of stock

22

CLIP

09384-06001

1
Out of stock

23

BOLT

09119-10001

—
Out of stock

24

NUT This part replaces 08311-31108.

08310-00107

1
Out of stock

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

26

WASHER | 12.5x24x1.6 This part replaces 09160-12004.

09160-12088

1
Out of stock

27

CLIP

09384-08001

1
Out of stock
