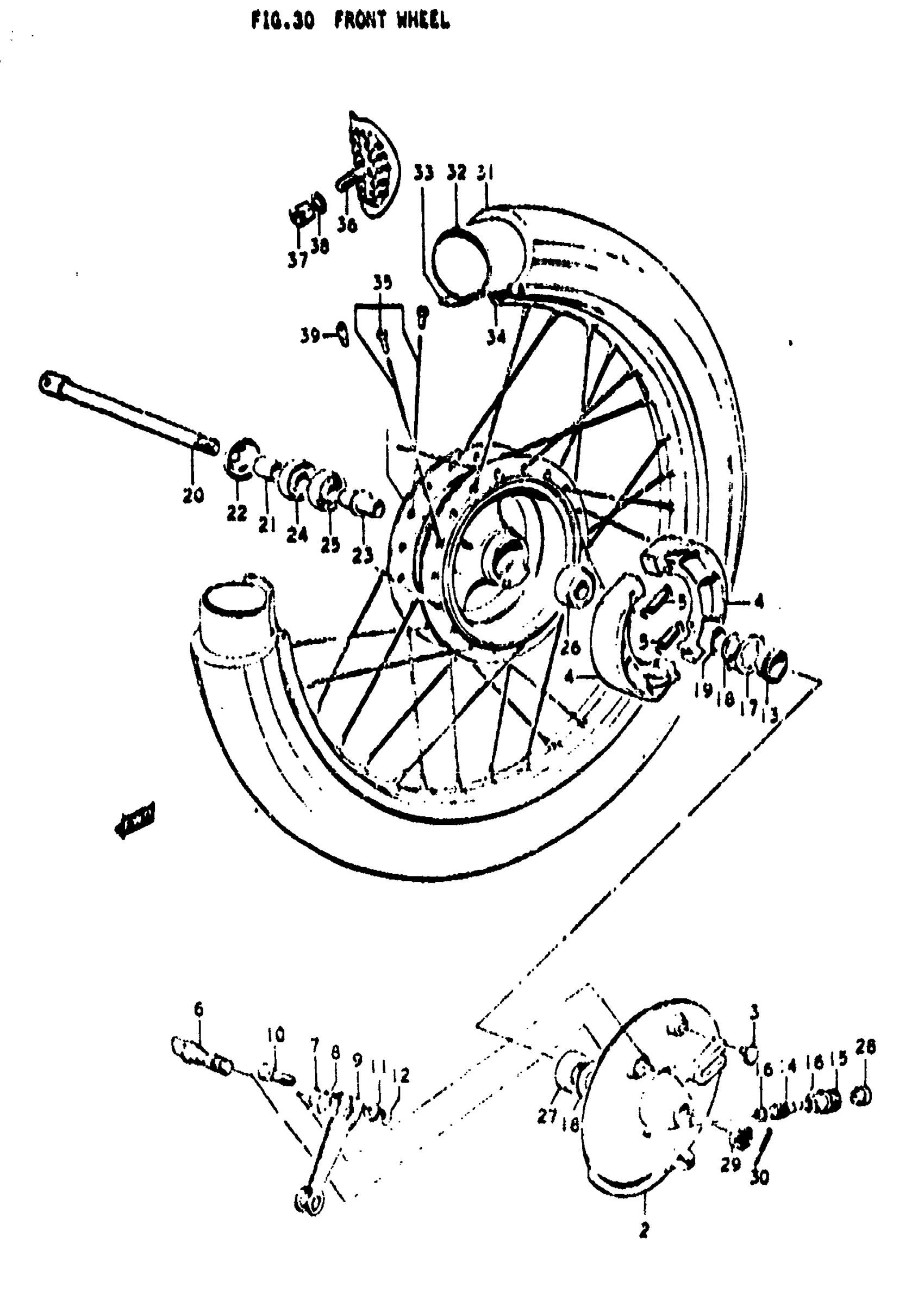

Suzuki TS250 (1972) FRONT WHEEL Diagram

#

Description
Price

1

DRUM

54110-30000

Unavailable

2

PANEL SET | R; TO 54200-30830

54200-30823

Unavailable

2

NO DESCRIPTION AVAILABLE | J; Includes Item(s) 3 This part replaces 54200-30830.

54210-30003

Unavailable

3

CAP

09250-08005

$2.47

4

SHOE SET, REAR BRAKE This part replaces 54410-08002.

64400-02830

$60.12

5

SPRING, BRAKE SHOE

55420-30000

$4.22

6

CAM, BRAKE | R

54440-30000

Unavailable

6

CAM, BRAKE | J

54440-30001

Unavailable

7

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.77

8

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.58

9

NO DESCRIPTION AVAILABLE This part replaces 54451-30000.

54451-30001

Unavailable

10

BOLT This part replaces 01112-06408.

01500-0640B

$2.64

11

WASHER This part replaces 08322-21068.

08322-01067

$1.86

12

.NUT This part replaces 08311-11068.

08310-00067

$1.83

13

GEAR, SPENDOMETER DRIVE | NT:27

54611-15000

Unavailable

14

GEAR, SPENDOMETER DRIVEN | NT:9

54621-11000

Unavailable

15

BUSH This part replaces 54632-11020.

54632-49200

Unavailable

16

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$2.17

17

DRIVER This part replaces 54660-11030.

54660-11031

$14.30

18

THRUST WASHER | 27.5x27x1

09160-22001

$2.68

19

CIRCLIP This part replaces 08331-11229.

08331-31229

$2.70

20

AXLE, FRONT

54711-08101

Unavailable

21

SPACER | 15x22x25.4

09180-15001

Unavailable

22

COVER, DUST SEAL

54892-11000

Unavailable

23

SPACER

54730-08100

Unavailable

24

OIL SEAL | 22x33x10

09284-22001

Unavailable

25

BEARING

08113-60020

$14.44

26

BEARING, LH This part replaces 08143-62020.

08143-62027

$14.44

27

SEAL,OIL(26X38X | 26x38x6 This part replaces 09285-26001.

09285-26005

Unavailable

28

OIL SEAL | 4.8x10x4

09289-06001

$5.85

29

NUT

09141-14001

$5.00

30

PIN This part replaces 04111-30408.

04111-3040A

$1.59

31

TIRE, FRONT | 3.25-19

55100-16411

Unavailable

32

TUBE | 3.25-19 This part replaces 55200-15010.

55200-44611

$44.78

33

PROTECTOR, WHEEL INNER TUBE FRONT | 22x19 This part replaces 55261-15010.

55261-15020

$2.97

34

RIM, WHEEL | 1.60A-19

55311-30020

Unavailable

35

SPOKE SET

55302-30805

Unavailable

36

STOPPER, BEAD | R; 1.858 TO 65270-30001 WITH 08312-11088 AND 08372-11088 This part replaces 65270-30000.

65270-43D00

$66.32

36

STOPPER, BEAD | J This part replaces 65270-30001.

65270-43D00

$66.32

37

NUT | R

09139-08016

$3.04

37

NUT | J This part replaces 08312-11088.

08310-00087

$1.83

38

WASHER | R This part replaces 08322-21088.

08322-01087

$1.86

38

WASHER | J This part replaces 08322-11088.

08322-01087

$1.86

39

BALANCER, WHEEL

55411-30000

Unavailable
